Induction Cooktop General Information
Dometic reserves the right to modify appearances and
specifications without notice.
3 General Information
This section provides general information about the
cooktop and its components.
The cooktop uses electromagnetic conduction to heat
the cookware. It is thermally efficient, safe and reliable,
and easy to clean.
Testing and authentication of this product is based on
the use of SUS430 cookware [bottom diameter 6 in.
(152 mm)].
I
The images used in this document are for reference
purposes only. Components and component
locations may vary according to specific product
models. Measurements may vary ±0.38 in.
(10mm).
3.1 Specifications
This section provides the electrical specifications and
product weight.
Model CI-21
Applied Voltage/
Frequency
120 VAC, 60 Hz
Low Voltage Protection 80 ± 10V
Low Voltage Recovery 90 ± 10V
High Voltage Protection 140 ± 10V
High Voltage Recovery 130 ± 10V
Le Rated Power 1440 W
Right Rated Power 1440 W
All Rated Power 1440 W
Current Draw Up to 13.2 A
Dimensions 24.4 in. × 15.0 in. × 2.8 in.
(620 mm x 380 mm x
70mm)
Weight 14.1 lbs (6.4 kg)

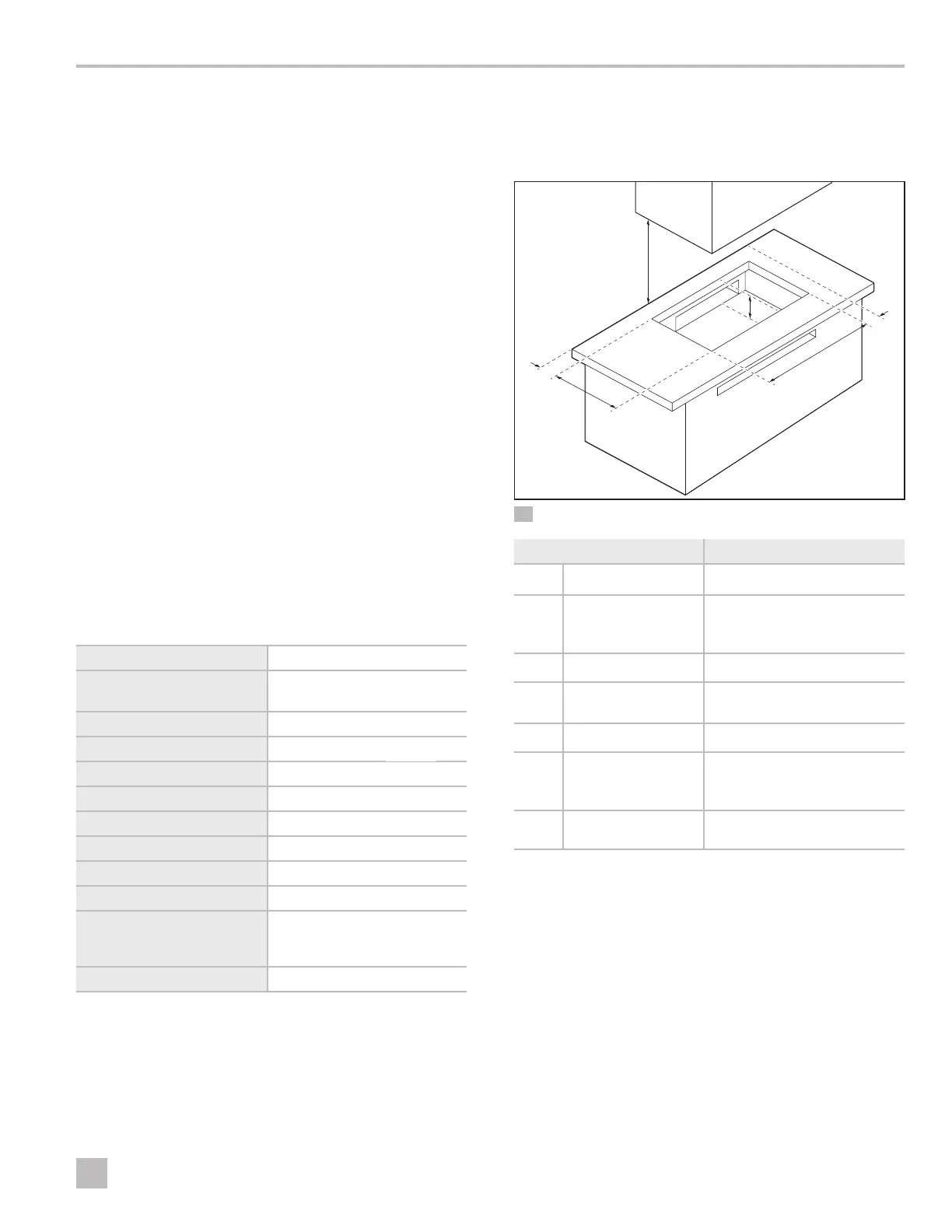

3.2 Dimensions and Clearances
This section provides the cutout dimensions and the
minimum clearance measurements for installation.
qq
uu
r
tt
ee
yy
ww
ww
1 Dimensions and Minimum Clearances
Dimension Description
q
30.0 in. (762 mm) Minimum Clearance
w
1.0 in. (25 mm)
Minimum Distance from
Cooktop to Wall or Cabinet
e
14.2 in. (361 mm) Cutout Width
r
8.0 in. (203 mm) x
1.0 in. (25 mm)
Front Ventilation Cutout
Dimensions
t
23.3 in. (592 mm) Cutout Length
y
6.0 in. (152 mm)
Minimum Distance from
Cooktop to a Surface
u
1.2 in. (30 mm) x
20.0 in. (508 mm)
Back Ventilation Cutout
Dimensions
