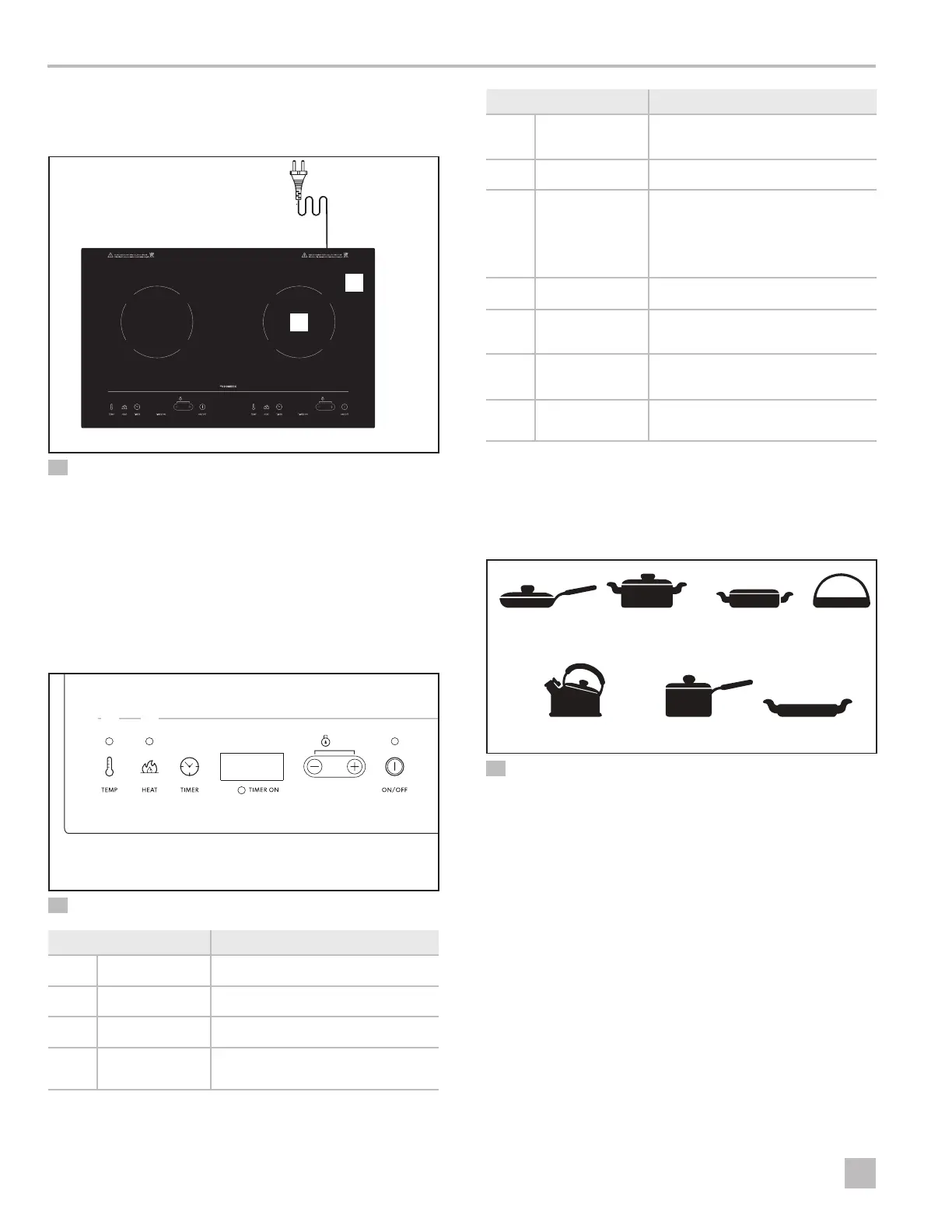

3.3 Components
This section identifies the main cooktop components.
r
e
w
y
t
q
2 Cooktop
q
Air Inlet
r
Ceramic Plate
w
Control Panel
t
Power Cord
e
Cooking Zone
y
Air Vent
3.4 Control Panel
This section identifies the cooktop controls.
q e tw yr
o
as
i
u
3 Control Panel
Name Function
q
TEMP Activates temperature mode
w
HEAT Activates heating mode
e
TIMER Activates the timer
r
TIMER ON LED
Indicates the cooktop is on timed
operation
Name Function
t
+/–
Increases or decreases the power
level, temperature, or time
y
ON/OFF Turns the cooktop on or off
u
ON/OFF LED
Flashes for 1 second to indicate
that power has been supplied to
the cooktop. Stays lit when the
cooktop is turned on
i
Lock LED Indicates the cooktop is locked
o
Display
Displays mode, level, timer
countdown, and error codes
a
HEAT LED
Indicates the cooktop is in heating
mode
s
TEMP LED
Indicates the cooktop is in
temperature mode
3.5 Compatible Cookware
This section describes the type of cookware that is
compatible with the cooktop.
Magnetic
stainless steel
Magnetic
stainless steel
Iron pan Iron kettle
Enamel stainless
steel kettle
Enamel cooking
utensil
Iron plate
4 Compatible Cookware
Induction-compatible cookware contains ferromagnetic
materials. In other words, it contains iron or has a layer
with magnetic properties. Aluminum, copper or glass
cookware will not work unless they have a layer on the
bottom with magnetic properties.
I
To tell if a pot or pan is induction-compatible, hold
a magnet to the bottom. If the magnet clings, the
cookware will work on the cooktop.
The cookware must have a flat,smooth bottom with the
diameter more than 5 in. (127 mm) and less than
8 in. (203 mm). Using the correct cookware size improves
the efficiency of the cooktop.
