Pre-Installation Self-Contained Air Conditioning System
• The air conditioning unit must be mounted to a low,
flat, level surface, like in the bottom of a locker, under
a bunk or dinette seat, or in a similar location. Refer
to Figure 1 for a standard installation configuration
before mounting the unit.
• To ensure proper airflow, the return air grille should
have a minimum of 4.0 in. (101.6 mm) of air circulation
clearance in front of it, free from any obstruction.
This section explains how to prepare the air conditioning
unit for installation.
5.1 Determining the Installation
Location
4.0 in. [102 mm].
3.0 in. [76 mm]

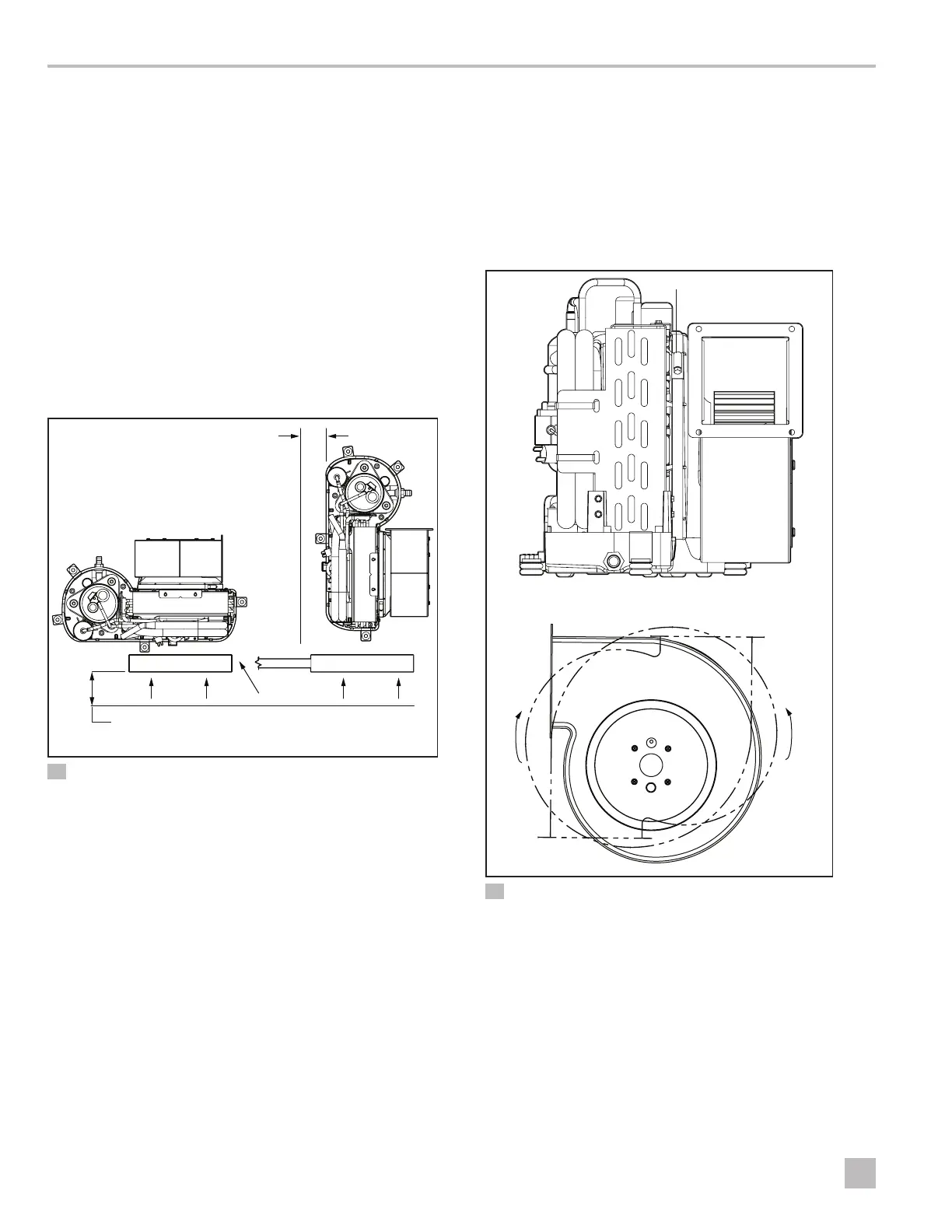

2 Placement Relating to Airflow
q
Return Air Grille
w
Bulkhead
Allow for 3.0 in. (76 mm) minimum clearance in front
of the evaporator coils and 4.0 in. (102 mm) minimum
clearance in front of the return air grille.
5.2 Rotating the Blower
If needed, rotate the blower to the direction that allows
the most direct airflow discharge through the ducting.
This section explains how to rotate the blower for each
product family.
5.2.1 Turbo Blowers
q
3 Turbo System Blower Rotation
q
Adjustment Screws
1. Loosen the adjustment screw on the blower mount
ring.
2. Rotate the blower to the desired position.
3. Tighten the adjustment screw.
w
q q
To Next Page
