Installation Self-Contained Air Conditioning System

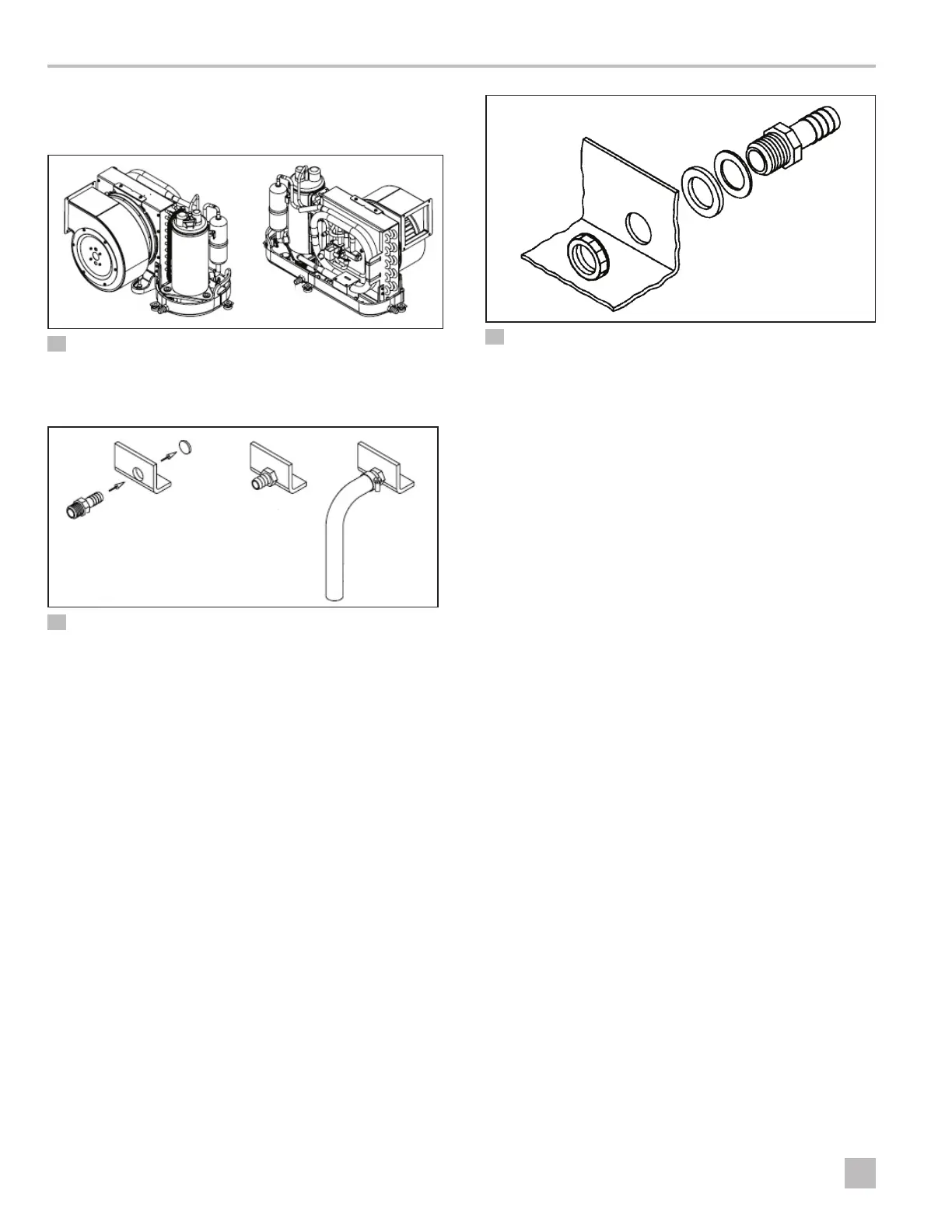

6.5 Installing the Mounting Brackets
and Condensate Drain
q
w
6 Typical Placement of Mounting Brackets and Condensate Drains
q
Condensate Drain
Pan Hose Barb
w
Mounting Bracket
(Provided)
q w e
7 Condensate Drain Installation for Turbo Systems
q
Hose Barb
e
Slug “Knockout”
w
Drain Pan
q
w
e
r
t
8 Condensate Drain Installation for Other Self-Contained Systems
q
PVC Fitting
(1/2 in. HB x 12 MPT)
r
Drain Pan
w
Solid Washer
t
Locking Nut
e
Liquid-Seal Washer
1. Using the hose barb, knock out a slug from an
a-facing drain hole by applying one quick strike with
a rubber mallet. Discard the slug knockout.
2. Install the hose barb:
– For Turbo systems: screw the hose barb into the
threaded drain hole and tighten securely.
– For all other systems: thread the hose barb
through a solid washer and liquid-seal washer and
insert it into the drain hole. Secure with a locking
nut.
3. Secure the condensate drain hose with a stainless
steel hose clamp.
4. Route the drain hose to a safe and proper collection
point.
