Dometic MINI User Manual

EN


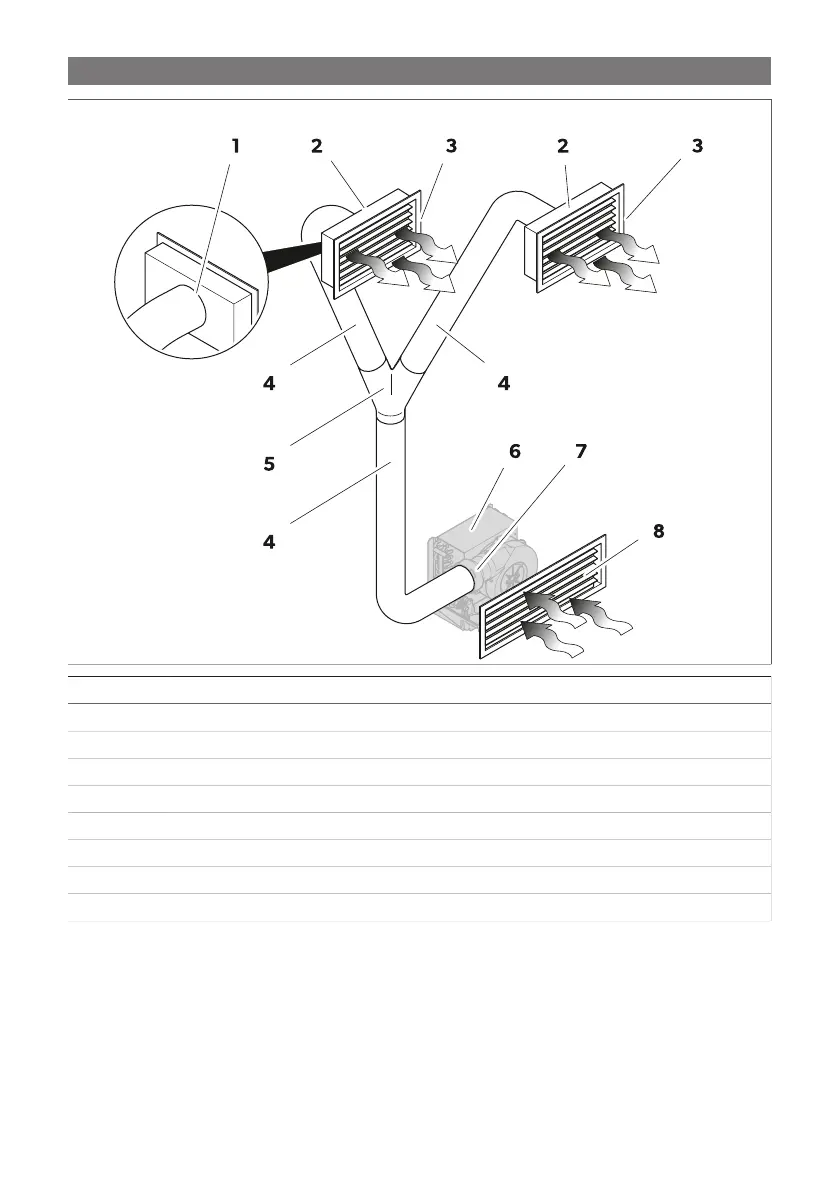

No. Component
1 Hose connection
2 Plenum
3 Air outlet grille
4 Flexible supply hose
5 Transition duct
6 Fan coil
7 Hose adapter
8 Air inlet grille
1.
Cut holes in the upper part of the wall and in the wall next to the fan of the fan coil for the grilles (see Fig. on
page22).
Observe the specified dimensions (see Grille dimensions on page33).
2. Install the grilles.
3. Connect the fan coil to the flexible supply hoses.
Observe the specified dimensions (see Hose dimensions on page34).
