Installing the device PI8022, PI8023, MO9722
18
6.4 Connecting the device to the power supply (PI8023)

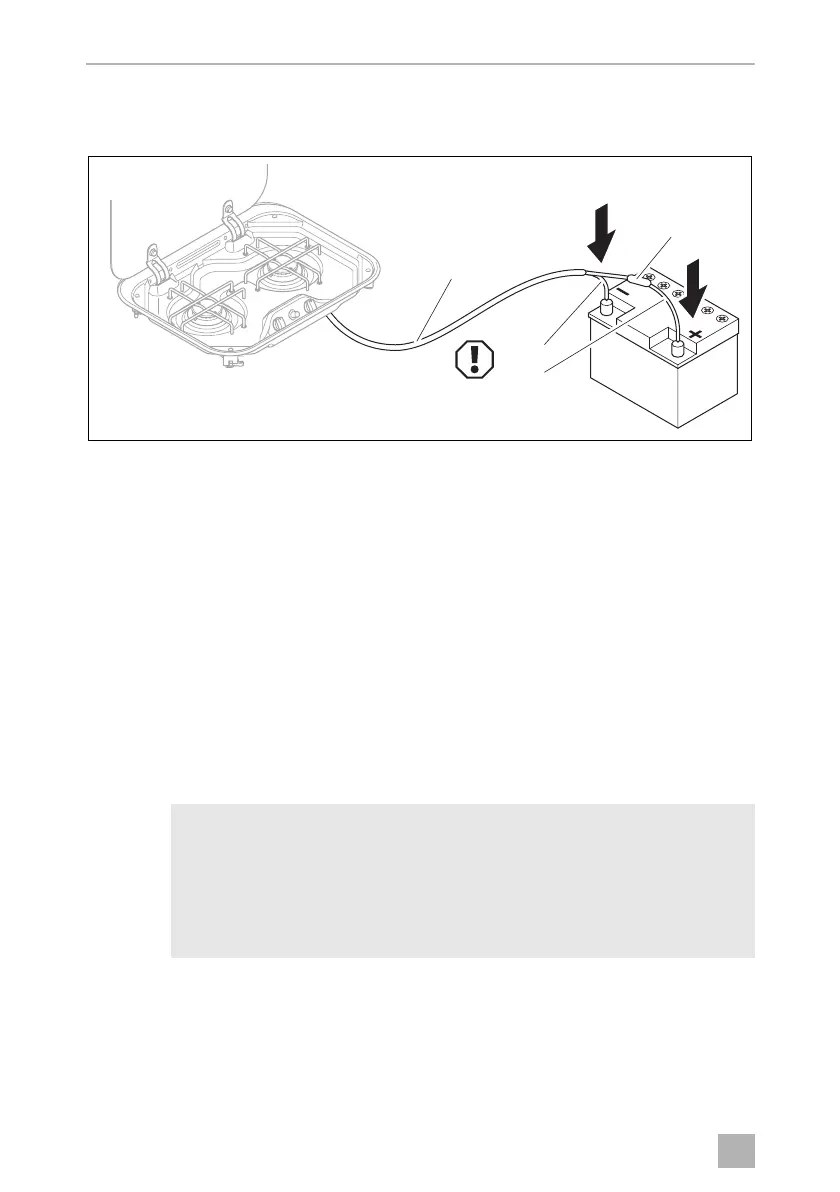

1. Connect the device as shown (fig. 0).
2. Add a 1 A fuse in the plus line near the battery.
6.5 Testing the device
1. Ignite all burners both individually and concurrently to ensure correct operation
of gas valves, burners and ignition.
2. Turn gas taps to low flame position and observe the stability of the flame for each
burner individually and concurrently.
✔ Depending on the type of gas used, the appearance of the flame is as follows:
– Propane: Flame with blue center and well-defined contour
– Butane: Flame with light yellow tips when igniting the burner, gradually
intensifying as the burner heats
3. Ensure correct operation of the flame failure protection.
!
CAUTION! Health hazard
In case the appliance fails to operate correctly after all checks have been
carried out, shut off the gas supply at the main gas tap and contact an
authorized service agent in your area.
When satisfied with the appliance, instruct the user on the correct
method of operation.
12 V
1 A
2 x 0,5 mm
2
red
black
d200 cm
