7. INSTALLING REFRIGERATOR IN
ENCLOSURE
NOTE: DO NOT install the appliance directly on car-
The dimensions shown in FIG.3 will give
peting. Carpeting must be removed or protected by a
you adequate space for service and pro-
metal or wood panel beneath the appliance, which
extends at least the full width and depth of the appli-
ance.

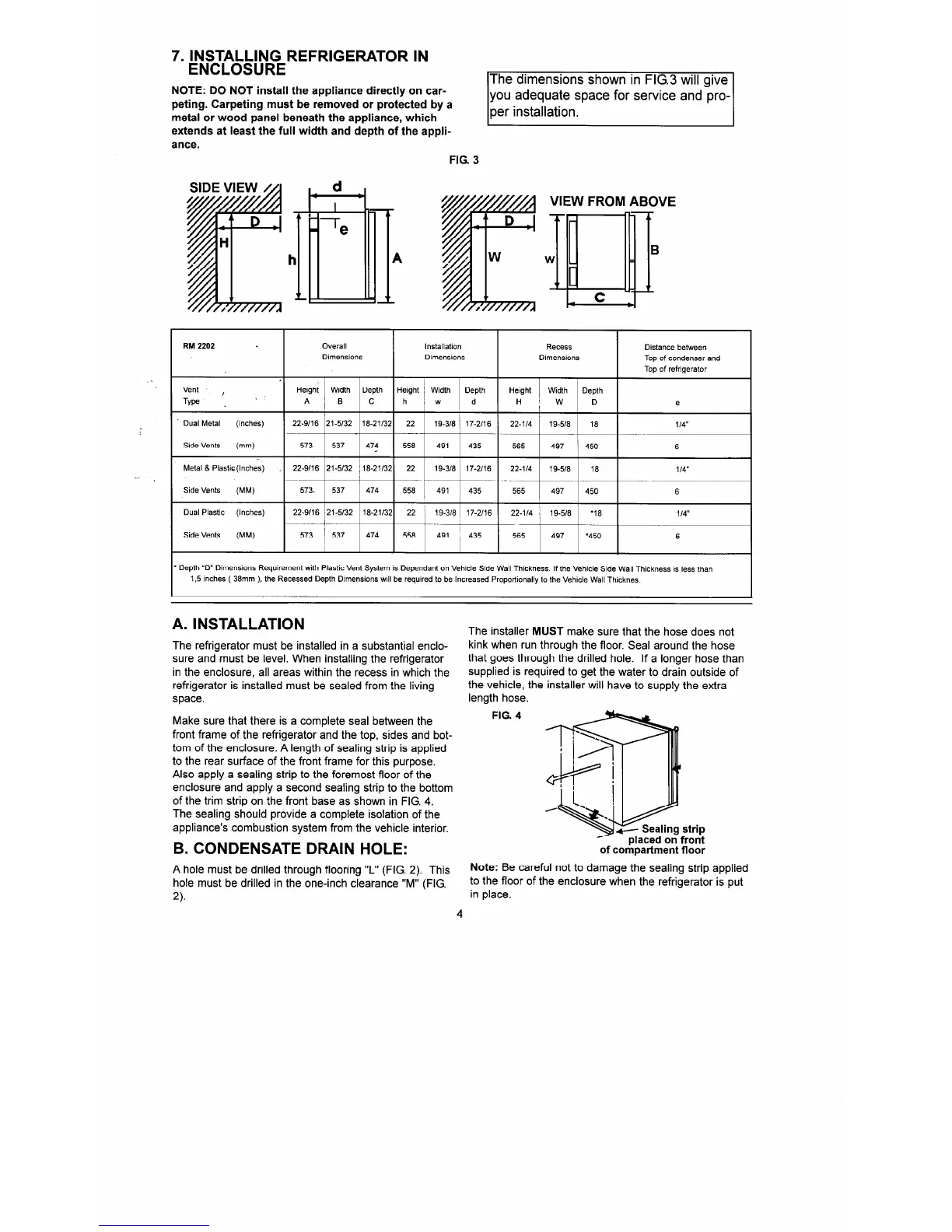

FIG. 3
VIEW FROM ABOVE
RM 2202
Overall Installation
Recess Distance between
Dimensions Dimensions Dimensions
Top of condenser and
Top of refrigerator
.
Heigh;
I
Vent ,,
Width
Depth
Height
/
Width
Depth
Height Width
h ‘w
Depth
Type
A
B
c d
H
w
D e
Dual Metal (inches)
22-g/16 21-5/32 l&21/32 22
1 g-318
17-2/l 6 22-114
19-518 18
l/4
Side Vents
(mm)
573 537
474 558
491
435
565 497 450 6
Metal 8 Plastic(lnches) 22-9116 21-5/32 118-21/32 22 19-3/8 17-2/16 19-5/8 18 l/4
. .
Side Vents
(MM)
573. 537
474
558 491 435 450 6
Dual Plastic (Inches)
22-g/16 21-5/32 18-21132 22 ’ 19-3/8 17-2/16 22-114 / 19-5/8
*18
114”
_
Side Vents
(MM)
573
/
537
474 558
491
)
435 565 497 v50 6
*
Depth “D” Dimensions Requirement with PlasticVent System is Dependant on Vehicle Side Wall Thickness. If the Vehicle Side Wall Thickness is less than
1,5 Inches
(
38mm ), the Recessed Depth Dimensions will be required to be Increased Proportionally to the Vehicle Wall Thicknes.
A. INSTALLATION
The refrigerator must be installed in a substantial enclo-
sure and must be level. When installing the refrigerator
in the enclosure, all areas within the recess in which the
refrigerator is installed must be sealed from the living
space.
The installer MUST make sure that the hose does not
kink when run through the floor. Seal around the hose
that goes through the drilled hole. If a longer hose than
supplied is required to get the water to drain outside of
the vehicle, the installer will have to supply the extra
length hose.
Make sure that there is a complete seal between the
front frame of the refrigerator and the top, sides and bot-
tom of the enclosure. A length of sealing strip is applied
to the rear surface of the front frame for this purpose.
Also apply a sealing strip to the foremost floor of the
enclosure and apply a second sealing strip to the bottom
of the trim strip on the front base as shown in FIG. 4.
The sealing should provide a complete isolation of the
appliance’s combustion system from the vehicle interior.
FIG. 4
B. CONDENSATE DRAIN HOLE:
placed on front
of compartment floor
A hole must be drilled through flooring “L” (FIG. 2). This
Note:
Be careful not to damage the sealing strip applied
hole must be drilled in the one-inch clearance “M” (FIG.
to the floor of the enclosure when the refrigerator is put
2).
in place.
