Dometic RM 5380 Installation Instructions

13
Installation
Fig. 19
Dometic recommends the A 1625 ventilation
and flue gas extraction system which has
been tested and approved for this purpose.
These ventilation grills provide the required
open cross-section of at least 250 cm².

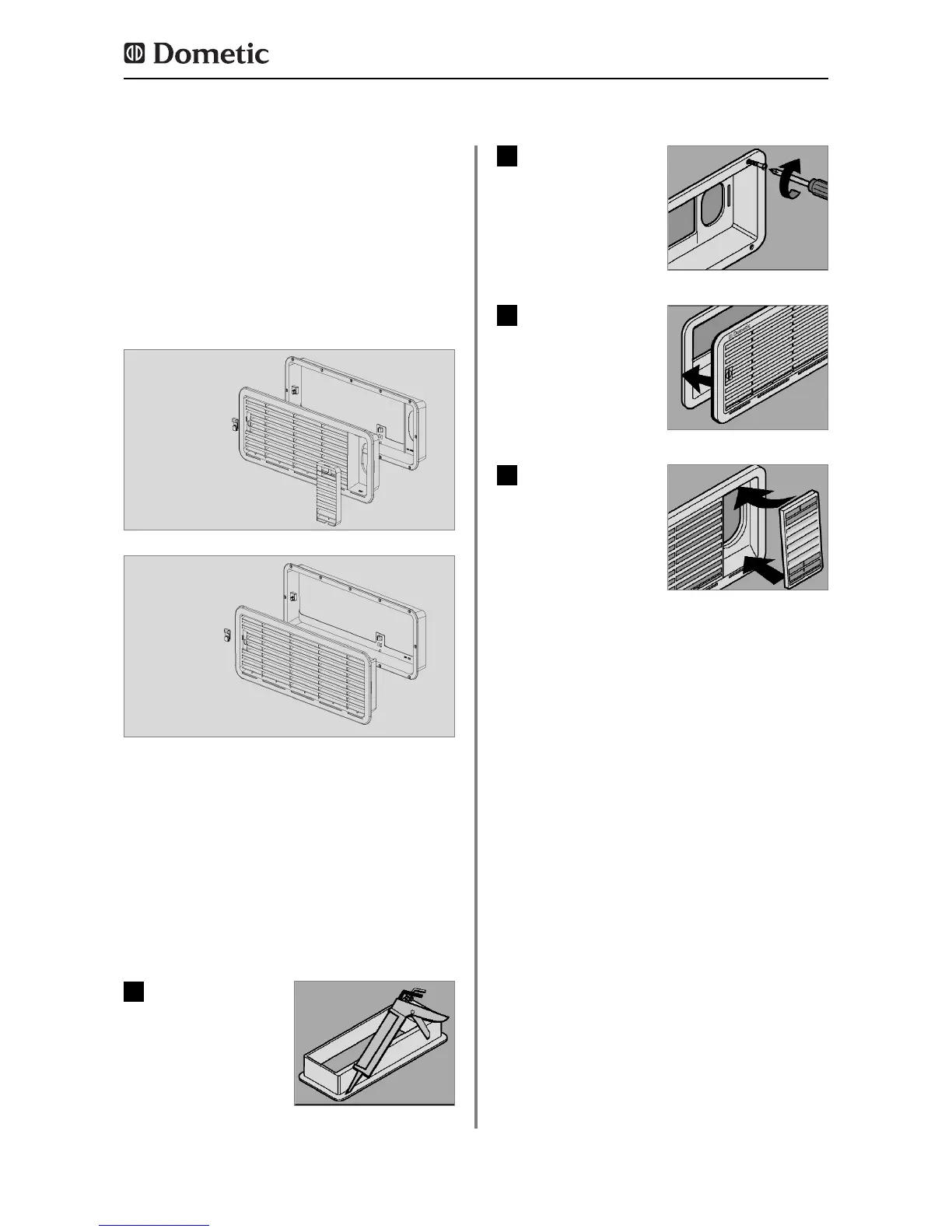

4.3 Installing the ventilation
system
LS 100
Fig. 20
LS 200
Top ventilation grille
with flue
Lower
ventilation grille
4.3.1 Ventilation systems
Fig. 23
Seal the mounting frame
making it waterproof
( does not apply for
mounting frames with
integral seal
).
1
Fig. 24
Insert frame and screw
into position
2
To install the ventilation grilles LS 200, cut two
rectangles (451mm x 156mm) in the outer
wall of the vehicle (
for position of the cuts,
s see Fig. 16).
Fig. 25
Insert and lock ventilati-
on grille.
3
Fig. 26
Clip the insert for flue
gas duct in position ( only
for L100 upper ventilati-
on system kit ).
4
4.3.2 Installing LS 100/LS 200
LS 100

Dometic RM 5380 Specifications

General

Door hinge	Left
Product color	Black, Grey
Custom panel-ready	-
Appliance placement	Freestanding
Refrigerating medium	R717
Noise level	- dB
Climate class	SN
Total net capacity	75 L
Total gross capacity	80 L
Lamp type	LED
Fridge net capacity	70 L
Fridge interior light	Yes
Freezer position	Top-placed
Freezer net capacity	5 L
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	- kWh
Package depth	543 mm
Package width	523 mm
Package height	845 mm
Package weight	29000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	821 mm
Weight	24000 g
