Dometic RM 5380 Installation Instructions

17
Installation

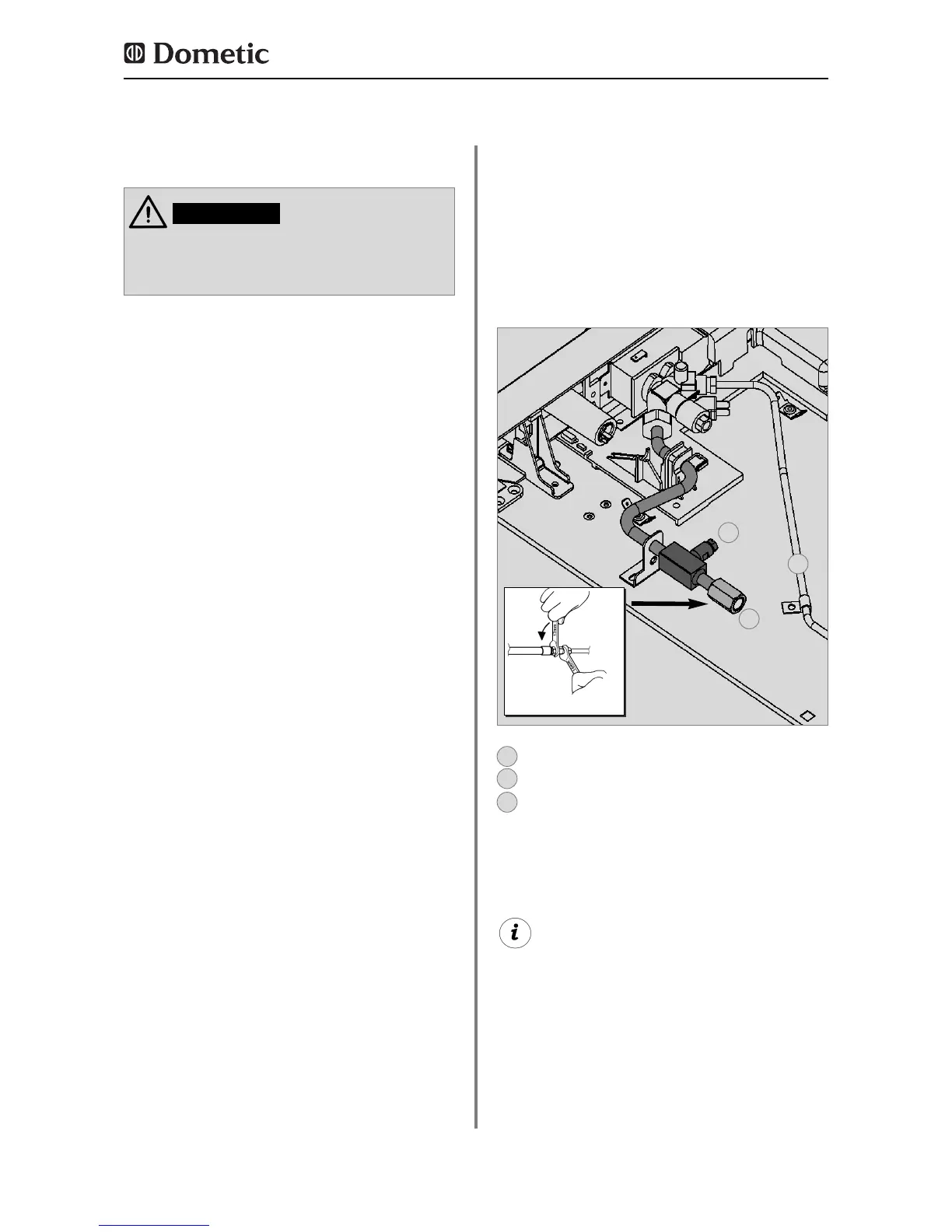

Fig. 33
* Specialised personnel are accredited experts who are
able, by virtue of their training and knowledge, to vouch
for the correct installation and implementation of the
leakage test.
4.8 Gas installation
The gas connection shall be carried out
by specialised personnel* only.
WARNING!
Gas connection
SW 14
SW 17
 Observe the regulations stated in sec-
tion 2.1 .
 This refrigerator is provided for installa-
tion within liquid gas equipment and
must be run exclusively on liquid gas
(propane, butane) (no natural gas, town
gas).
 An AGA Approved LP Regulator must be
fitted to the gas supply. The pressure
regulator must concur with the opera-
ting pressure specified on the rating
plate of the appliance. The operating
pressure corresponds to the standard
pressure of the country of specification.
 Only one connection pressure is permis-
sible for any one vehicle! A plate sho-
wing the permanent, clearly legible noti-
ce must be displayed in full view at the
point where the gas cylinder is installed.
 The gas connection to the appliance
must be installed securely and free of
stress using pipe connectors and must
be securely connected to the vehicle (a
hose connection is not permissible) .
 The gas connection to the appliance is
1/8"BSP Female (s. figure 33).
 The refrigerator must be equipped with a
shut-off valve allowing to cut the supply
line. Such a shut-off device must be
readily accessible to the user.
Before Leaving - Check all connections for
gas leaks with soap and water. DO NOT use a
naked flame for detecting leaks. Ignite the
burner to ensure correct operation of gas
valve, burner and ignition. When satisfied with
the appliance, please instruct the user on the
correct method of operation. In case the
appliance fails to operate correctly after all
checks have been carried out, refer to the aut-
horised service provider in your area.
The refrigerator must be equipped with a gas
cock in the supply line to allow the supply to
be disconnected. Such a cut-out device must
be readily accessible to the user.
When using LPG gas (tank), please consider
that the burner needs cleaning at shorter inter-
vals due to the gas combustion method (2 - 3
times per year recommended).
Testing point
Connection to gas supply
Pipe to gas burner
2
1
3
2
1
3
Gas pressure
Refer to data label.
