Installation
4.0 Installation instructions
The unit and the exhaust duct system must be
in principle installed so that it is accessible for
maintenance work, can be easily installed and
dismantled and removed from the vehicle wit-
hout great effort.
Installation and connection of the appliance
must comply with the latest technical regulati-
ons, as follows:
 The electrical installation must comply
with national and local regulations.
 Electrical wiring regulations
 The gas installation must comply with
national and local regulations.
 AS 5601- Gas Installations
NZ 5262 - Gas Appliance Safety
 The appliance must be installed in such
a way that it is shielded from excessive
heat radiation.
Excessive heat impairs performance and rai-
ses the energy consumption of the refrigera-
tor!
4.1 Installation
Deviations from these installation instruc-
tions without prior notification of Dometic
result in Dometic GmbH's warranty obliga-
tions becoming void!
The appliance may be installed by authori-
sed personnel only!
WARNING!

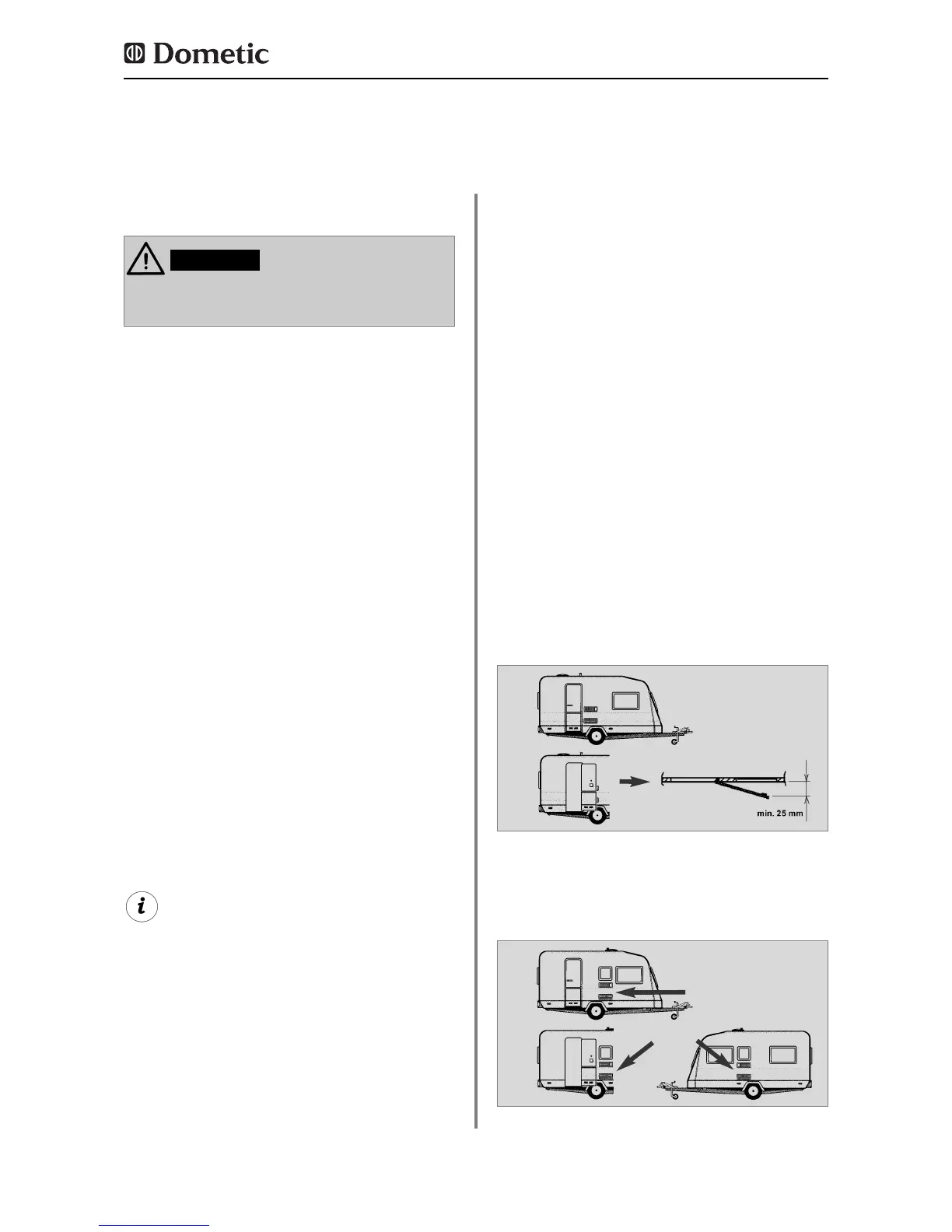

(Fig. 6) The air vent grilles offer an unobstruc-
ted dissipation of heat and exhaust gas even
when the door is opened.
4.1.1 Side installation
If the appliance is installed on the same side of
the vehicle as the entrance door, it is desirable
that the door does not cover the refrigerator's
vents. (Fig. 5, Clearance door/ventilation grille
at least 25 mm). Otherwise ventilation could
be impaired which causes a loss in cooling
performance. Awnings are often placed at the
door side of a caravan. This complicates eva-
cuation of combustion gases and heat through
the ventilation grilles (loss in cooling perfor-
mance)!
(Fig.5) The air vent grilles are blocked. There
must be a distance between the door and the
air vents of at least 25 mm!
If the door/grille distance is between 25 mm
and 45 mm, we recommend installing a
Dometic ventilation kit to achieve an optimal
cooling performance in high ambient tempera-
tures.
Fig. 5
Fig. 6
Air vent grille not-
blocked! OK!

Dometic RM 5380 Specifications

General

Door hinge	Left
Product color	Black, Grey
Custom panel-ready	-
Appliance placement	Freestanding
Refrigerating medium	R717
Noise level	- dB
Climate class	SN
Total net capacity	75 L
Total gross capacity	80 L
Lamp type	LED
Fridge net capacity	70 L
Fridge interior light	Yes
Freezer position	Top-placed
Freezer net capacity	5 L
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	- kWh
Package depth	543 mm
Package width	523 mm
Package height	845 mm
Package weight	29000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	821 mm
Weight	24000 g
