Dometic RM 5380 Installation Instructions

16

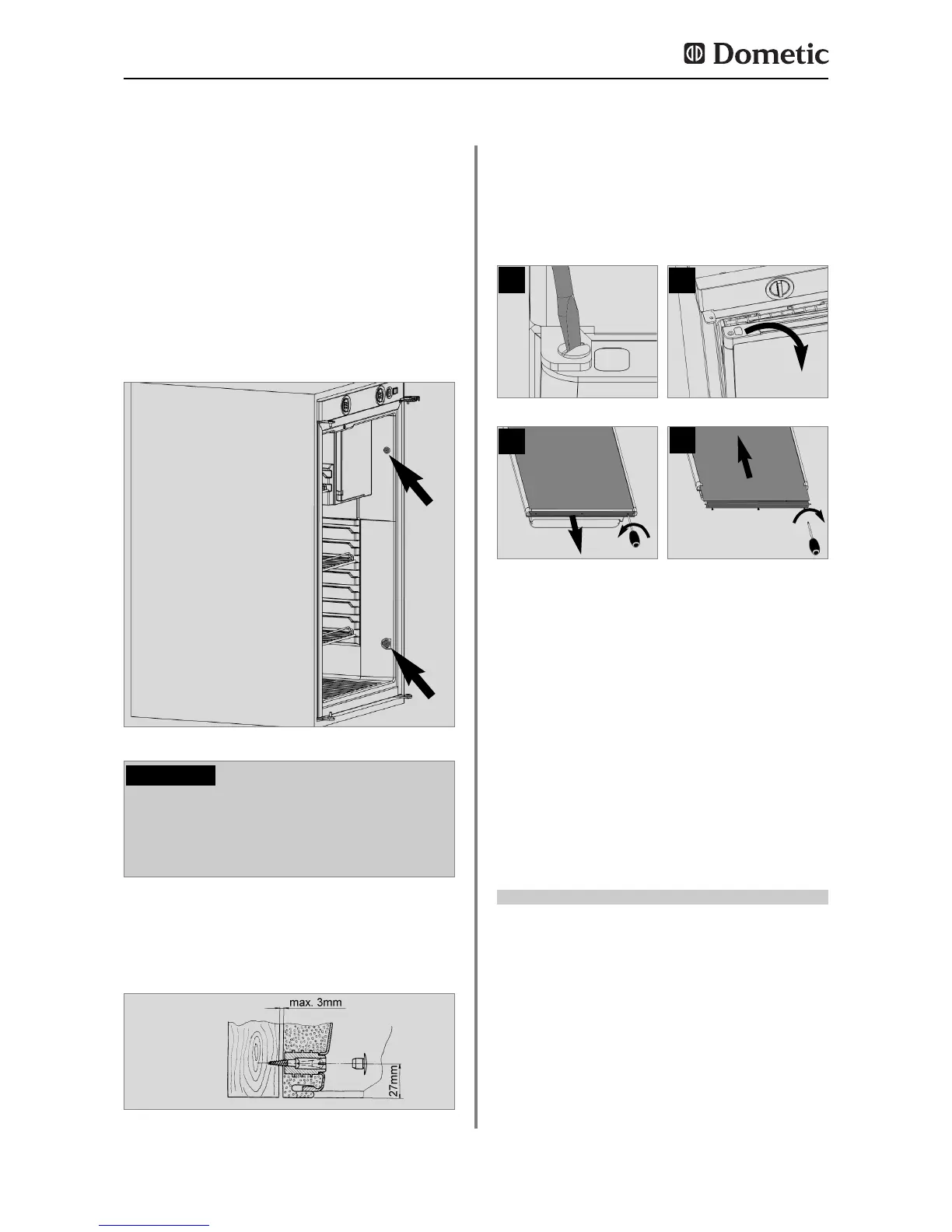

Installation
After the refrigerator is put in its final place,
secure the screws into the wall of the recess.
The screws must penetrate the casing of the
refrigerator.
Fig. 27
Fig. 28
In the sidewalls of the refrigerator, there are
four plastic sleeves for securing the refrigera-
tor. The sidewalls or strips attached for secu-
ring the refrigerator must be prepared to hold
the screws firmly in place even when under
increased load (while the vehicle is moving).
Fastening screws and caps are supplied with
the refrigerator.
4.6 Securing the refrigerator
Always insert screws through the sleeves
provided as otherwise components laid in
foam, such as cables etc., could be dama-
ged.
CAUTION!
4.7 Inserting the decor panel
 Remove the door.
 Loosen three screws of the lower trim
moulding and remove trim moulding.
 Fit new panel and slide it upwards as far
as possible.
 Fit the trim moulding back in place.
 Fit the door on the hinge pin.
Model RM 5310
Decor panel dimensions :
Height Width Thickness
Fig. 31
Fig. 32
Fig. 29
1
3
Fig. 30
2
4
532 +/-1 mm 453 +/-1 mm max. 3,8 mm
Model RM 5330
Height Width Thickness
740 mm 453,5 mm max. 3,8 mm
Model RM 5380
Height Width Thickness
740 mm 453,5 mm max. 3,8 mm

Dometic RM 5380 Specifications

General

Door hinge	Left
Product color	Black, Grey
Custom panel-ready	-
Appliance placement	Freestanding
Refrigerating medium	R717
Noise level	- dB
Climate class	SN
Total net capacity	75 L
Total gross capacity	80 L
Lamp type	LED
Fridge net capacity	70 L
Fridge interior light	Yes
Freezer position	Top-placed
Freezer net capacity	5 L
Current	0.54 A
Power source	Gas/Electric
Connected load	125 W
Gas consumption	270 g/24h
AC input voltage	230 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	- kWh
Package depth	543 mm
Package width	523 mm
Package height	845 mm
Package weight	29000 g

Weight and Dimensions

Depth	474 mm
Width	486 mm
Height	821 mm
Weight	24000 g
