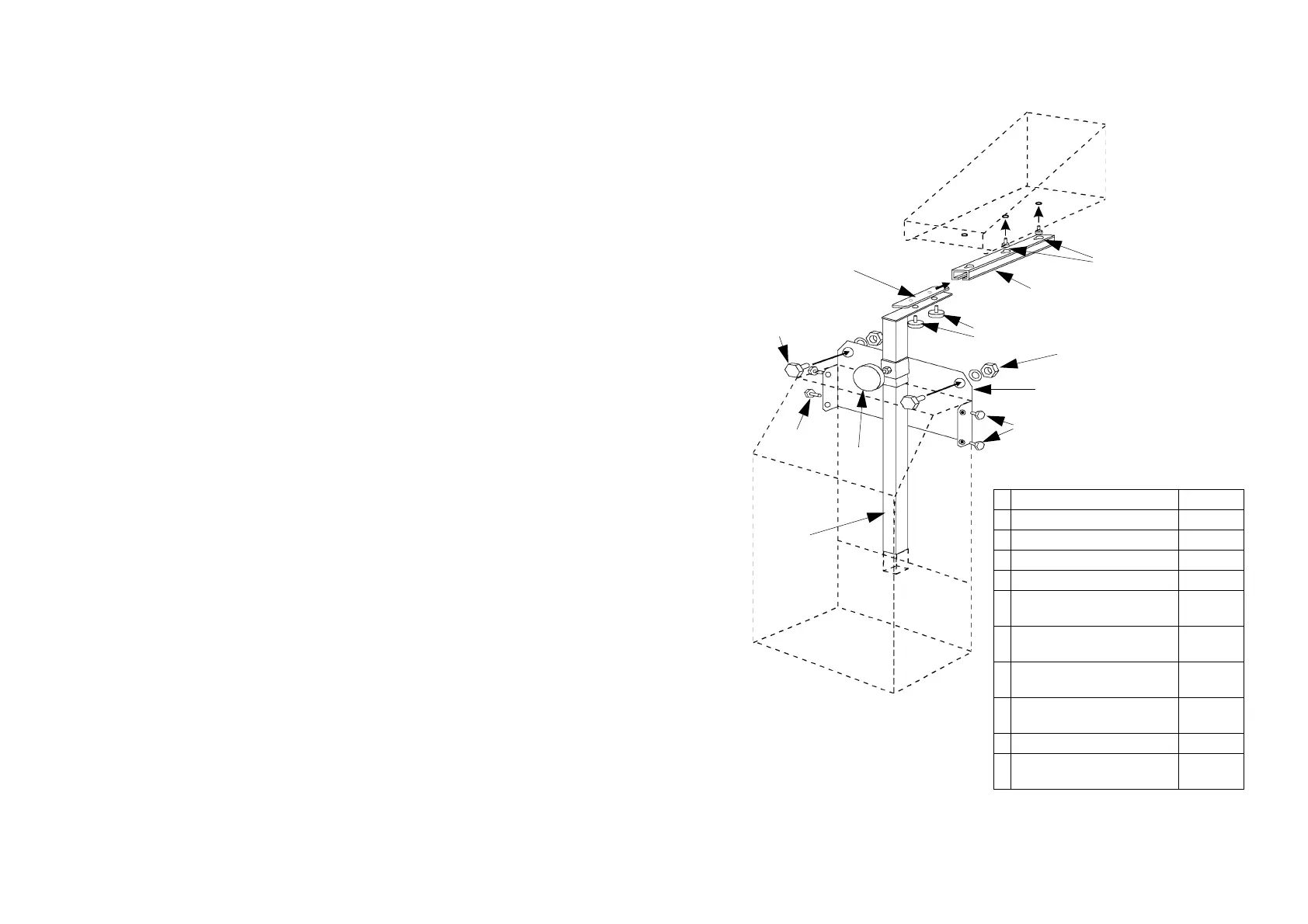

INSTALLATION
77091 Issue 2 November 2003 33
A Mounting Bracket MJ/605
B Base Mounting Bolts M5x10
C Mounting Bolts M8x20
Mounting Washers M8
Mounting Nuts M8
D Vertical Mounting
Bracket
MF006
E Height Adjustment
Knob
M8x15
F Slide Bar MF/
005M
G Print Head Fixing
Screws
M5x6
H Clamping Plate MF/008
I Overhang Adjustment
Screws
M5x10
A
B
C
D
E
F
G
H
I
B
C
