INSTALLATION INSTRUCTIONS
2-10 L025317 Issue 5 July 2014

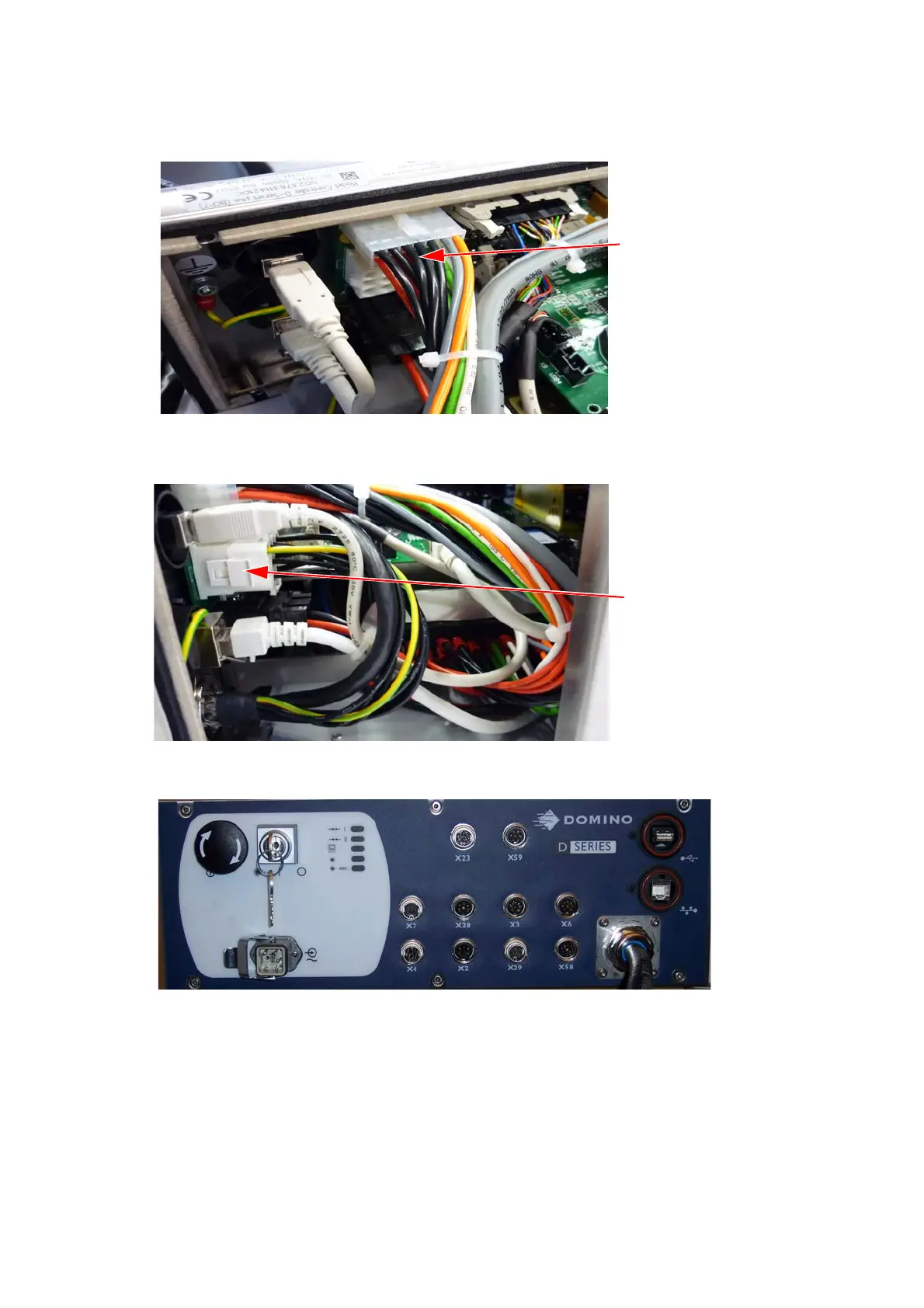

Cable management for the 20 pin IDC connector
Cable management for the power connector
Close the controller cabinet. Controller with main cable fitted
20 Pin IDC
Connector
Power
Connector
