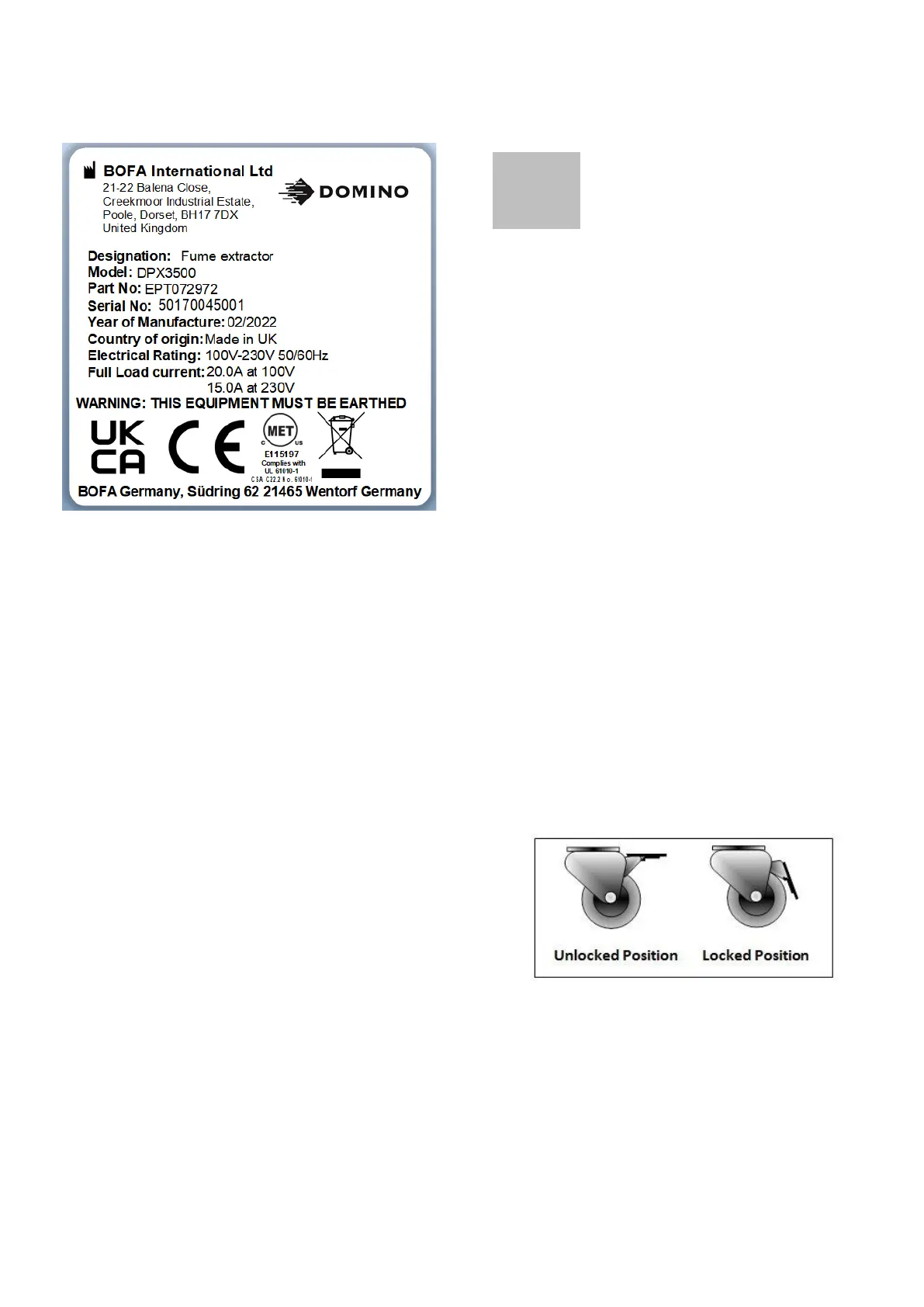

Marking plate Label:
Location: adjacent to the incoming supply.
Meaning: This label contains a variety of information about the
extraction unit, including.
• Manufacturer name, Address
• Extractor model
• Part number
• Unit serial number
• Operating voltage range
• Maximum current load
• Operating frequency
• Year of Manufacture
• Relevant approval markings/ logos
PLEASE NOTE: If the equipment is used in a manner not specified
by the manufacturer, the protection provided by the equipment
maybe compromised.
Before installation
Installation and service
Installation and de-installation of the DPX3500 Laser
Extraction System must be done by professionals.
Install the unit on a firm and level floor and keep the exhaust
outlet clear of obstructions. The rear of the DPX3500 Laser
Extraction System must not be closer than 100mm to a
vertical wall or surface. Do not install the unit in any
outdoor area, or any area that is subjected to weathering
conditions. Service of the DPX3500 Laser Extraction System
must be completed by professionals.
Inner transit packaging removal & unit placement
Before installation, check the extraction unit for damage.
All packaging must be removed before the unit is connected
to the power supply.
Please read all instructions in this manual before using
this extractor.
1. Move the unit to the location where it is going to be
installed and remove the outer packaging. This unit
should be installed in a sufficiently ventilated area.
2. With the unit in position lock the 2 front castors.
