# Setting Name Explanation
C Fieldbus in/out
Note Gx-IC10 only.
Displays Fieldbus connection status.
D Information Bar Shows status icons that will be displayed on the Home
Screen when the Connections screen is closed.
Consumables Screen

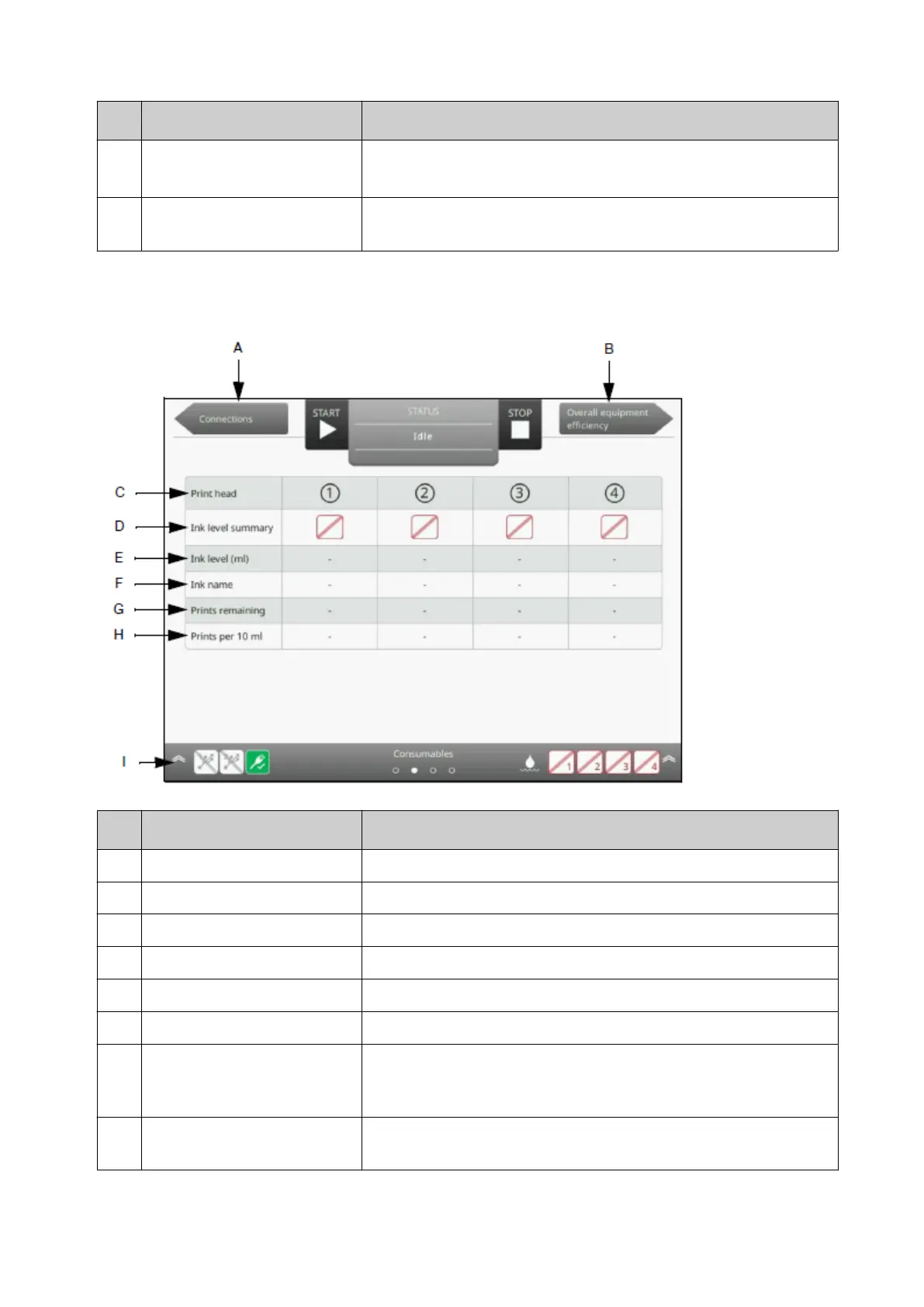

The following illustration shows the Connections and Consumables screen.
# Setting Name Explanation
A Previous Screen Go back to the Connections screen.
B Next Screen Proceed to the Overall equipment eciency screen.
C Print head Identifies the print head number.
D Ink level summary Displays the ink level for each print head cartridge.
E Ink level (ml) Displays the ink level for each print head cartridge.
F Ink name Displays the ink type for each print head cartridge.
G Prints remaining Displays the number of prints that can be made using the
current print head settings before each ink cartridge needs
replacement.
H Prints per 10 ml Displays how many prints can be made with 10ml of ink for
each print head using the current settings.
OPERATION
EPT053091 - Issue 5 - 07 May 2021 120
