Domino Gx150i

To Next Page

To Previous Page

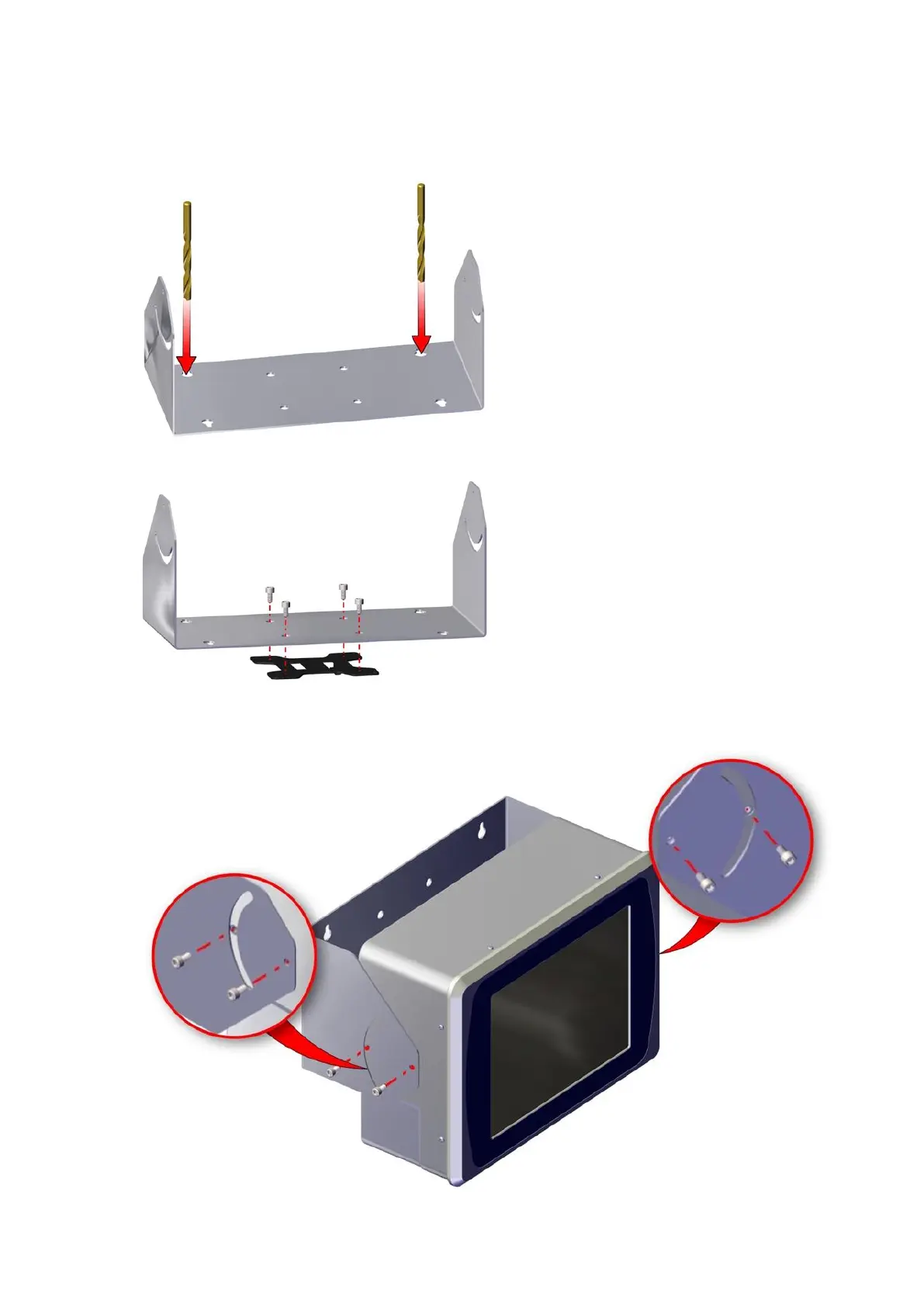

To mount the Gx-IC10 Controller:

1. Mount the bracket to a ﬁxed vertical or horizontal surface. The bracket can be mounted

directly to a ﬂat surface or installed on a VESA 75 mount.

Direct Installation

VESA 75 Installation

2. Mount the controller to the bracket.

INSTALLATION

27 EPT053091 - Issue 5 - 07 May 2021
