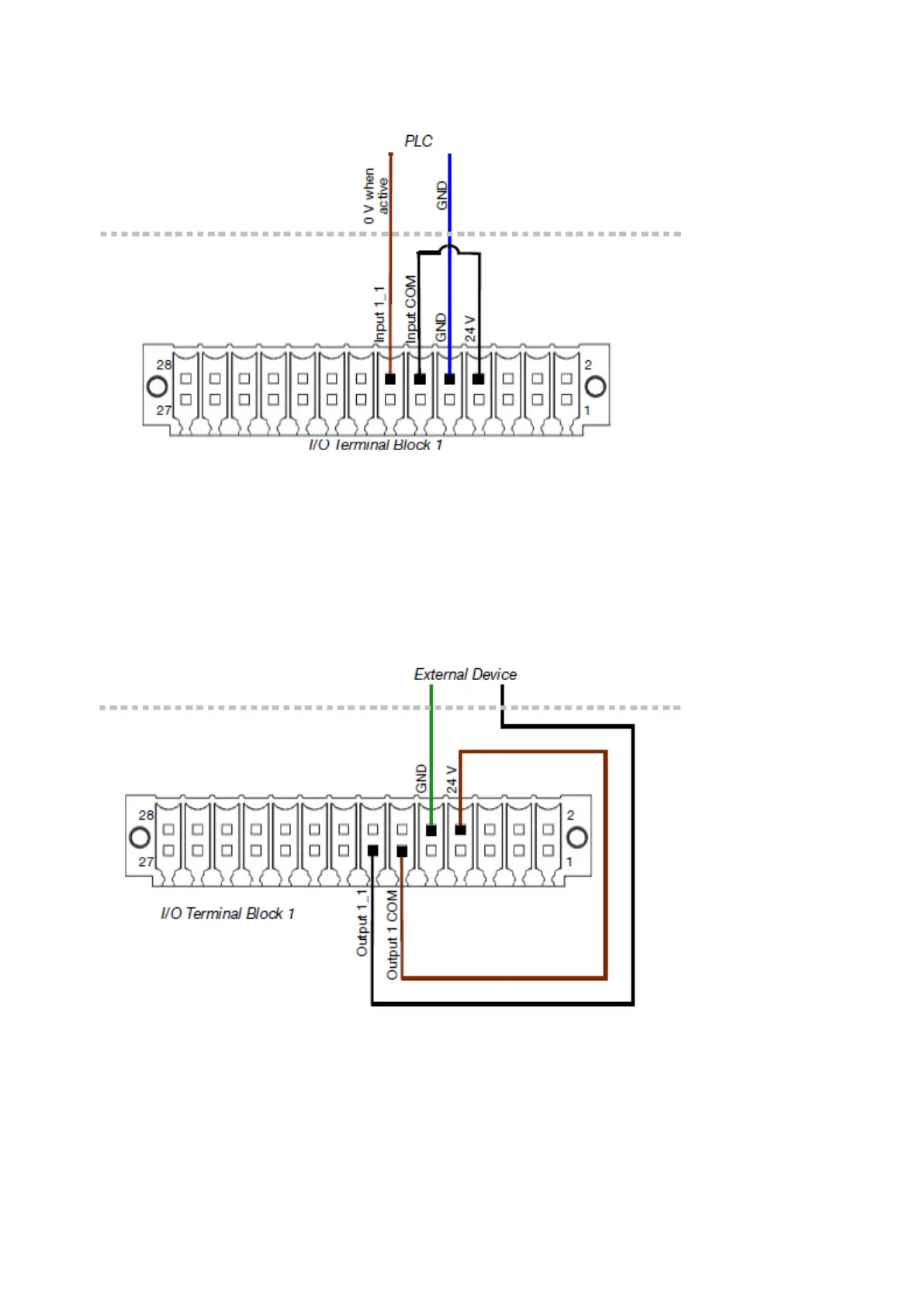

To define input functions, see I/O Function Assignment on page 82.
Gx-IC10/GxOEM PLC Input (0 V from PLC)
Output (24 V When Active)
8 outputs are available on I/O terminal block 1 and 4 outputs are available on I/O terminal block
2. The diagram below illustrates the connection to "Output 1_1" on I/O terminal block 1. The
other outputs are listed on see I/O Terminal Block 1 Layout (Gx-IC10/Gx-OEM) on page 44 and
see I/O Terminal Block 2 Layout (Gx-IC10/Gx-OEM) on page 46.
To define output functions, see I/O Function Assignment on page 82.
Gx-IC10/Gx-OEM Output (24 V When Active)
Output (0 V When Active)
8 outputs are available on I/O terminal block 1 and 4 outputs are available on I/O terminal block
2. The diagram below illustrates the connection to "Output 1_1" on I/O terminal block 1. The
other outputs are listed see I/O Terminal Block 1 Layout (Gx-IC10/Gx-OEM) on page 44 and see
I/O Terminal Block 2 Layout (Gx-IC10/Gx-OEM) on page 46.
INSTALLATION
51 EPT053091 - Issue 5 - 07 May 2021
