A2
Collectors are rated for the following loads as calculated per
relevant sections of the IBC 2012 code*:
Basic Wind Speed & Exposure
..................90 mph, Exposure C
Seismic Spectral Acceleration, S
s
.......................................1.5 g
Seismic Spectral Acceleration, S
1
.......................................0.6 g
Installed Collector Base Elevation
................................ ....Grade
Risk Category
..........................................................................
II
Compressed air supply, psig (max) ........................................90
Housing rating, inches water gauge
...............................+10/-25
Control power ................................................ 220-Volt 50/60 Hz
*If collector was supplied with a Record Drawing, the

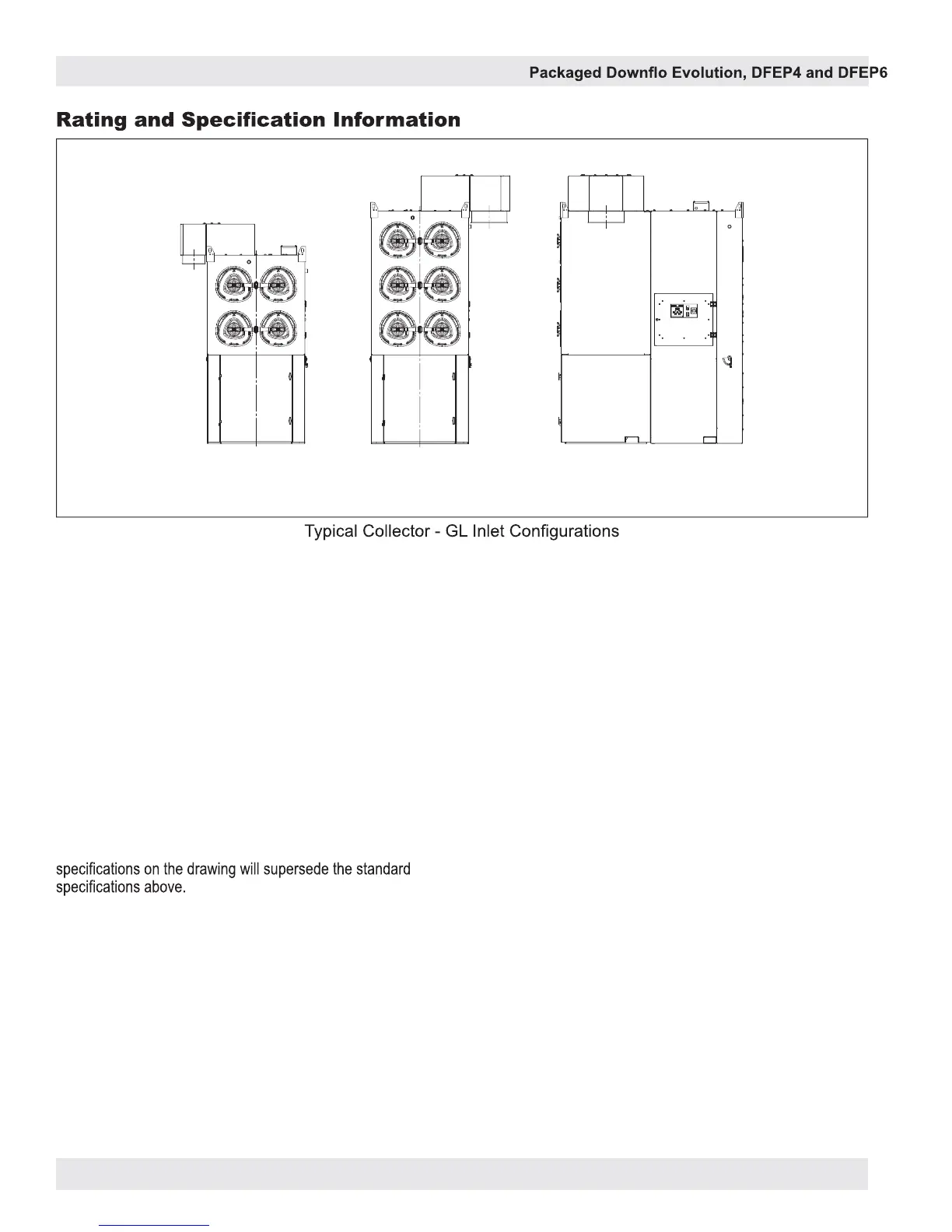

Front View
DFEP 4
Front View
DFEP 6
Typical Side View
