During normal operation, dust-laden air is drawn into the collector through a duct connected to the inlet box, near the top of the
collector. The dust-laden air is then directed downward through the collector body where heavier dust falls directly into the hopper.
air passes into the clean-air plenum where it is drawn through the fan and is discharged through the clean-air outlet.
Dust and fume reaching the base of the collector is directed into a dust bin where it can be removed easily without the need for
tools.
Collector Operation
3 Operation

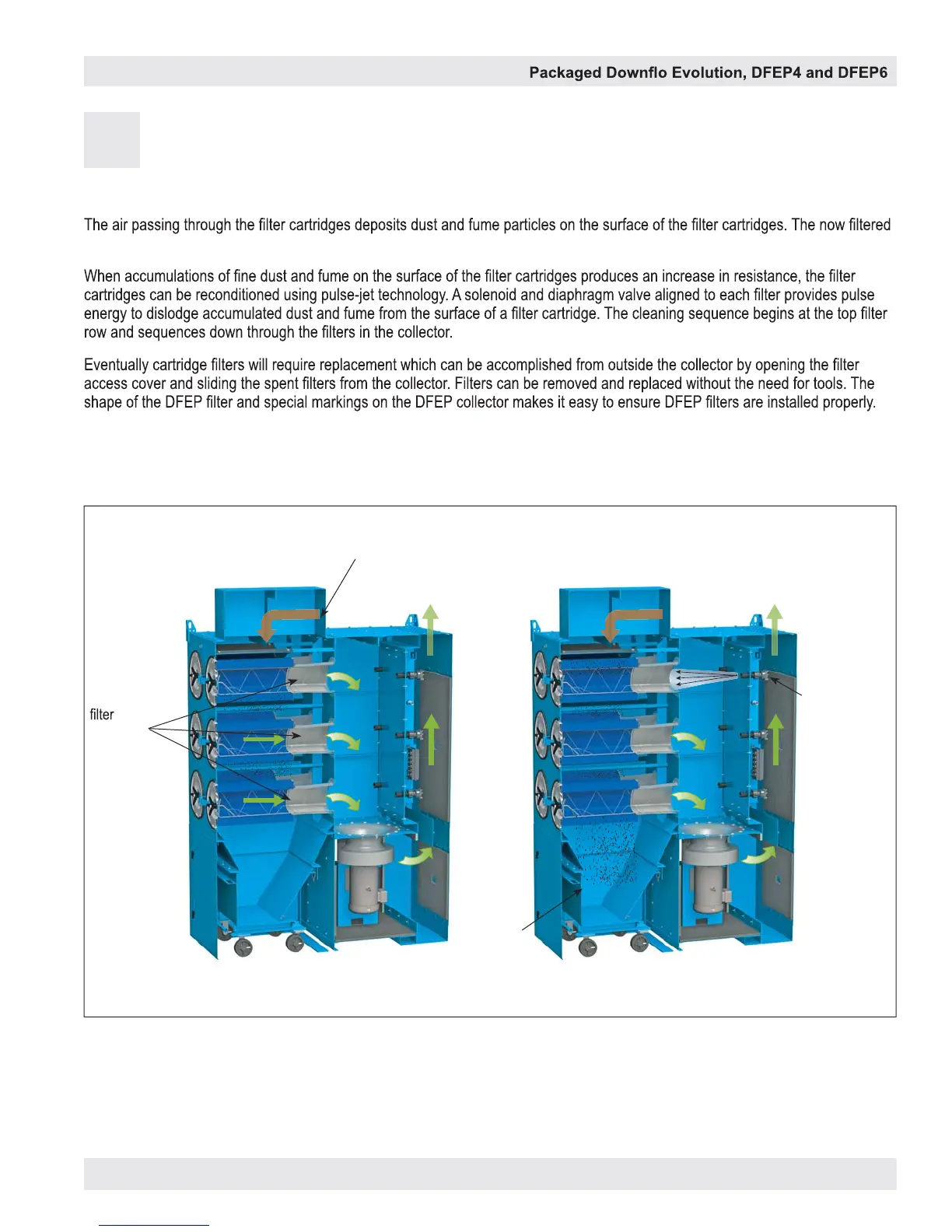

dirty-air inlet
cartridge
Normal Operation Filter Pulse Cleaning Operation
dust bin
diaphragm
valve
dirty-air inlet
clean-air outlet clean-air outlet
