Earphone interface
Stereo earphone audio output port.
Specification: 3.5mm (1/8 inches) TRS
Output impedance: ＜1Ω（32Ω load）
Output power: 125mW (32Ω)
SNR: ≥85dB (A-wt)
❾
AUX INPUT interface
Stereo audio input port; after connecting with an audio cable, it can actively mute Bluetooth audio and use AUX IN audio as priority. Specification: 3.5mm (1/8
inches) TRS
Input impedance: ≥10kΩ
❿
Module data base socket
The main data port on the host serves as the primary interface for transmitting signals/lights and other data from the
drum pad.

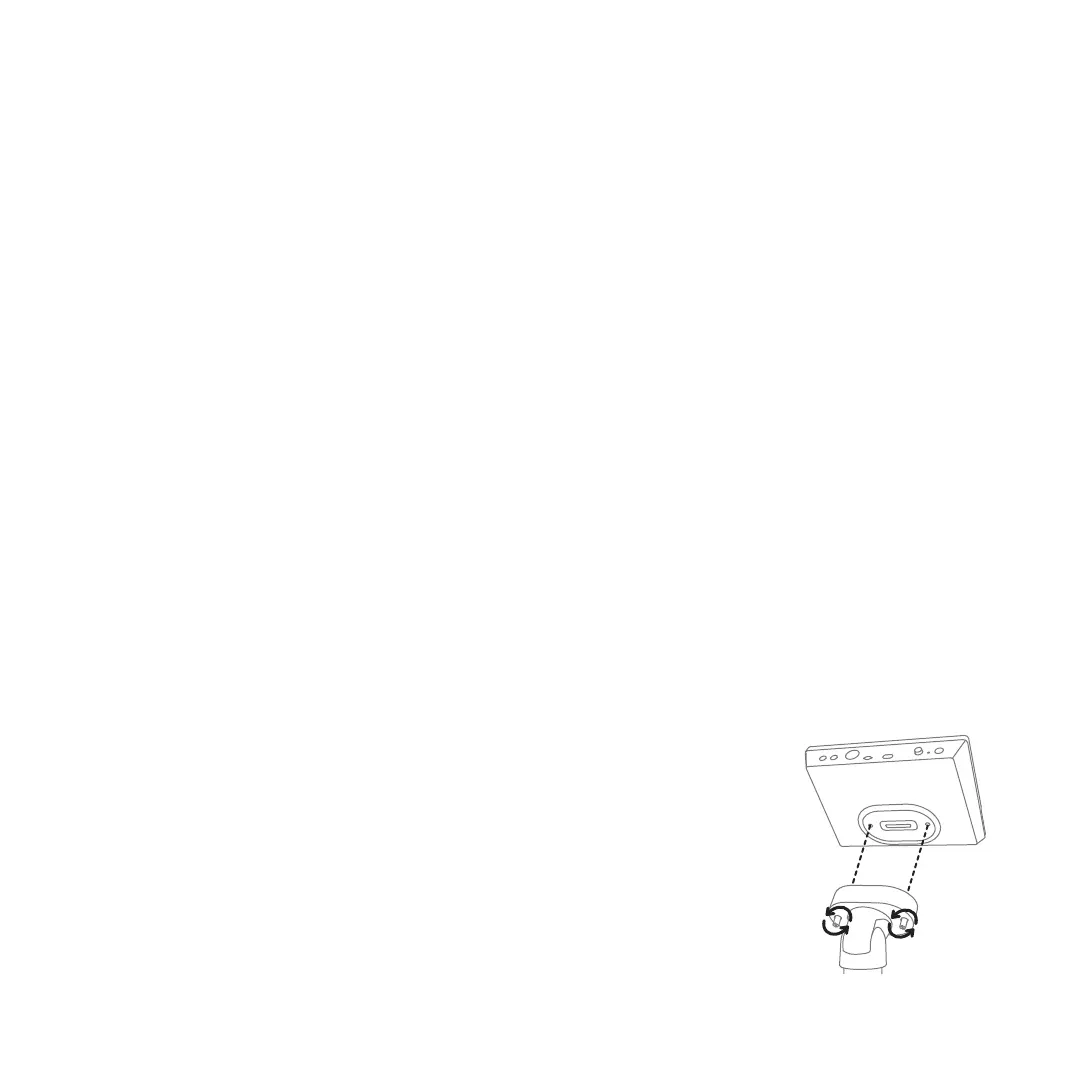

Installation Method: The host data base port is built into the stand, and the installation connection between the host and
the stand involves inserting the host into the stand's base port and tightening the set screws.
(Note: The module is a high-precision electronic instrument. Don’t block the ventilation outlets at the bottom and both
sides to avoid unusual conditions resulting from overheating or heat dissipation failures. Avoid using the device in
extreme conditions and prevent the ingress of liquid into the device. Keep the data ports clean, for unusual conditions
may occur if the ports are blocked).
04
❺
On/Off button
It is used to turn on/off the Module. Powering off requires holding the button for 3 seconds. (Holding for 10 seconds while powered off will force entry into
firmware upgrade mode.)
In case of any problem or crash, you need to force restart the device. You may use a needle or a pin to lightly press the jack to force restart the device.
❻
Force restart button
❼
MODULE power interface
Please use the original power adapter. If you need to use any other power adapter, please use one as per the detailed specification to avoid the damages of
internal parts resulting from overcurrent.
Input voltage: 100-240v
Output voltage/current: 12v/2A
Input terminal type: Φ5.5*2.0*11mm/90°, inner-positive & exterior-negative
