DONPER XF124 - Base Assembly; Drive Motor Assembly

Model 3311
Page 19
XF124

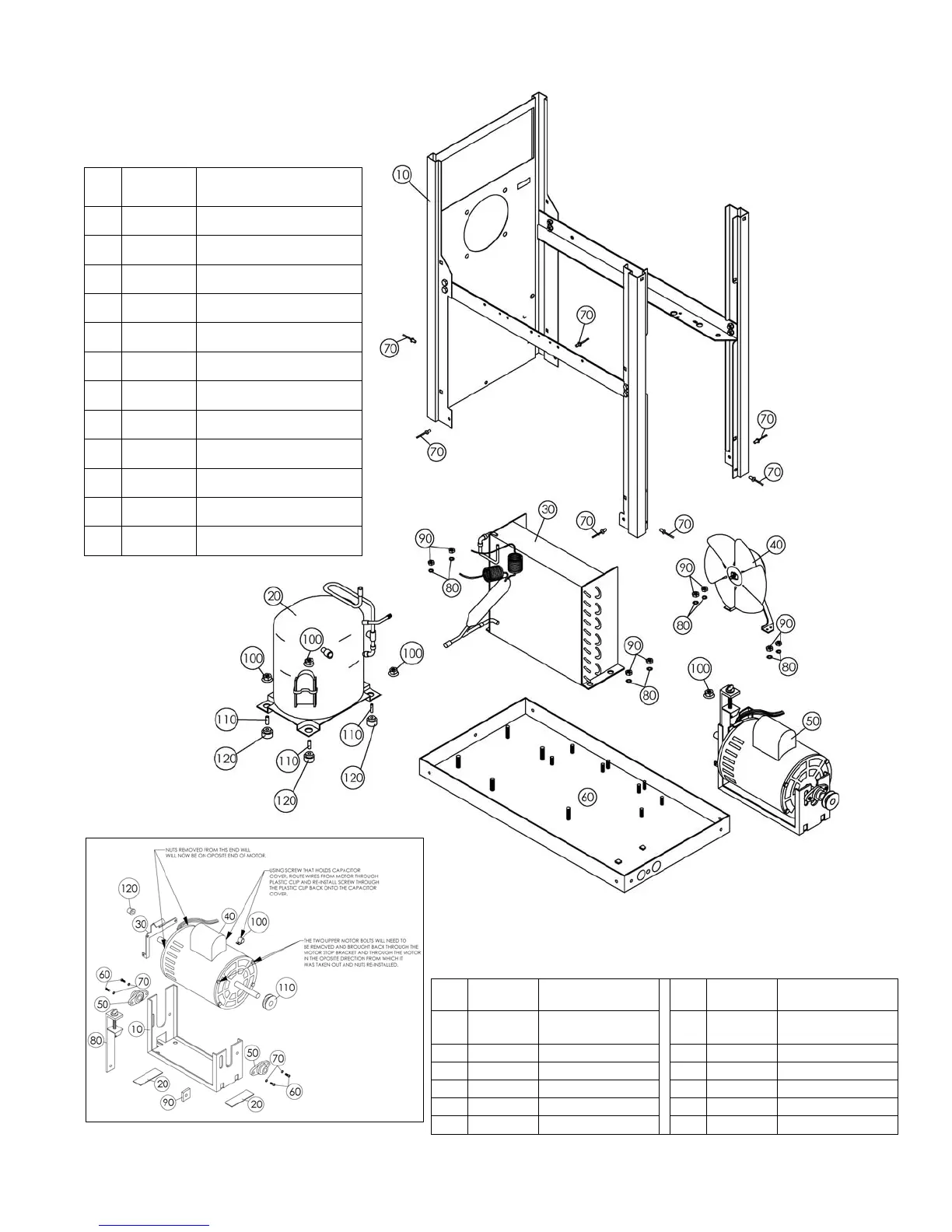

Base Assembly
115V Air-Cooled Model
ITEM
PART
NUMBER
DESCRIPTION
10 W0210083 FRAME ASSEMBLY
20 W0201001 COMPRESSOR ASSEMBLY
30 W0201002 CONDENSER ASSEMBLY
40 W0321029 FAN SUB-ASSEMBLY
50 W0321026 DRIVE MOTOR ASSEMBLY
60 W0210106 BASE PAN ASSEMBLY
70 W0611410 RIVET, MAGNA-LOK
80 W0611247 1/4 INT. TOOTH LK. WSHR.
90 W0611074 1/4-20 HEX NUTS
100 W0611082 5/16-18 FLANGE NUT
110 W0200412 COMPRESSOR SPACER
120 W0200413 COMPRESSOR GROMMET
Drive Motor Assembly (See figure on left)
ITEM
PART
NUMBER
DESCRIPTION ITEM
PART
NUMBER
DESCRIPTION
10 W0210169 Motor Cradle 70 W0611249
1/4 Split Lock
Washer S.S.
20
W0671022
Motor Sound Insul.
80
W0170014
Consistency Control
30
W0321025
Motor Stop Bracket
90
W0321013
Motor Adj. Nut
40
W0320020
Drive Motor
100
W0630421
Plastic Clamp
50
W0380009
Flange Bearing
110
W0450016
Pulley
60
W0610559
1/4-20 Socket HD
120
W0321027
Pin Sleeve
