DoorHan DCUH-1 - Technical Data; Safety Rules; General View; Front Panel

3
3. DESIGN
1. Power indicator
2. Leveler RAISE button
3. Main power switch
1. Main board
2. Control board

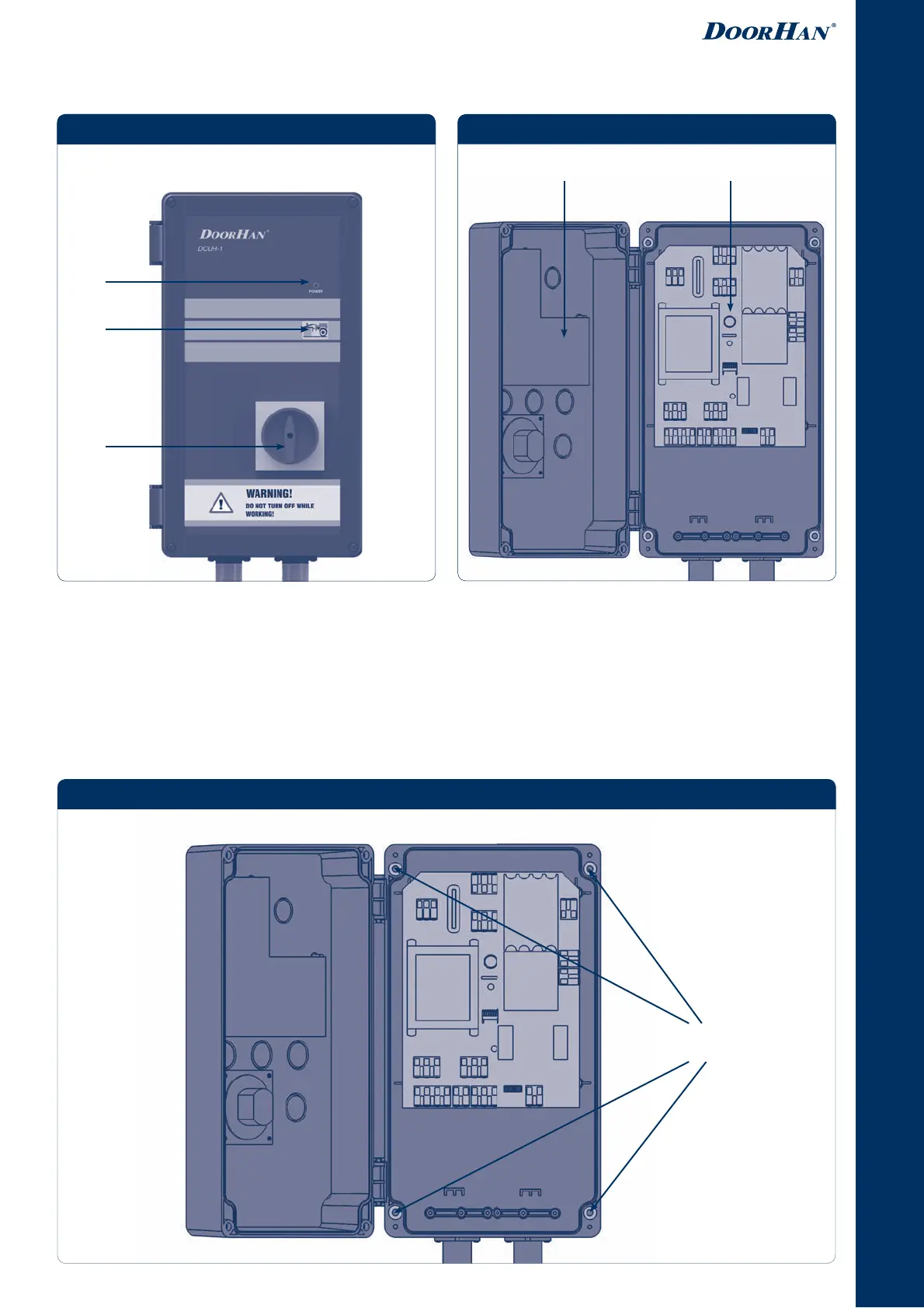

Fig. 3.1. Closed view
Fig. 4.1. Control unit installation
Fig. 3.2. Open view
1
12
2
3
DESIGN
Mount the control unit so the distance between control unit bottom and dock floor is approximately 1–1,5 m. Choose the
fasteners corresponding to the type of wall.
4. INSTALLATION
Anchor points
