KEYCODE AS AN EXTERNAL WIEGAND READER
5. KEYCODE AS AN EXTERNAL WIEGAND READER
In this mode the device supports Wiegand 26 bit output so Wiegand data lines can be connected to any controller which
supports Wiegand 26 bit input.

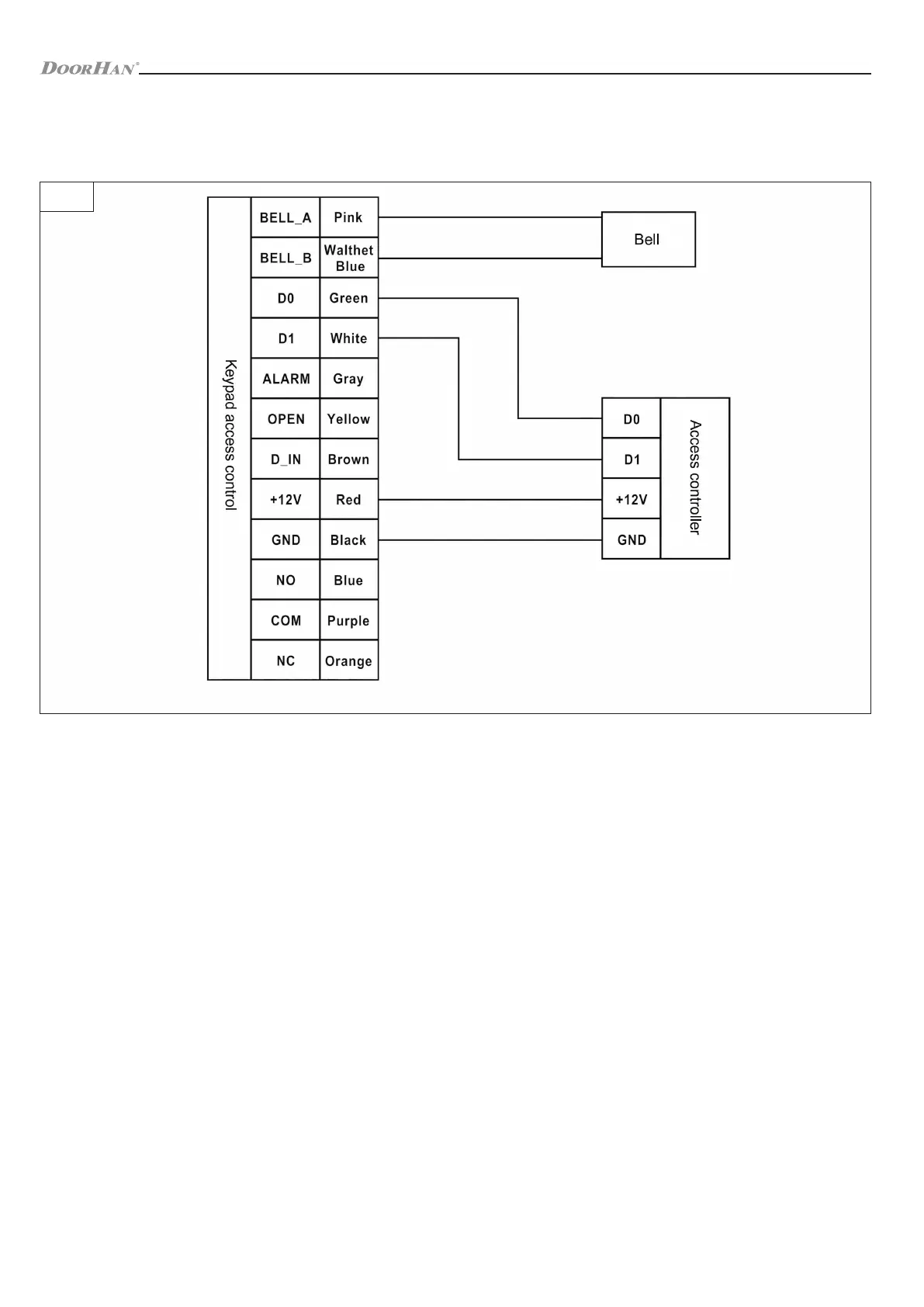

FIG. 4
