1506-065-F-3-14 Page 13
1.6 Secondary Keypad Wiring
Refer to Secondary Keypad Instruction Sheet (p/n 1506-066) for instructions on mounting the
1599-010 board onto the 1506-010 circuit board.

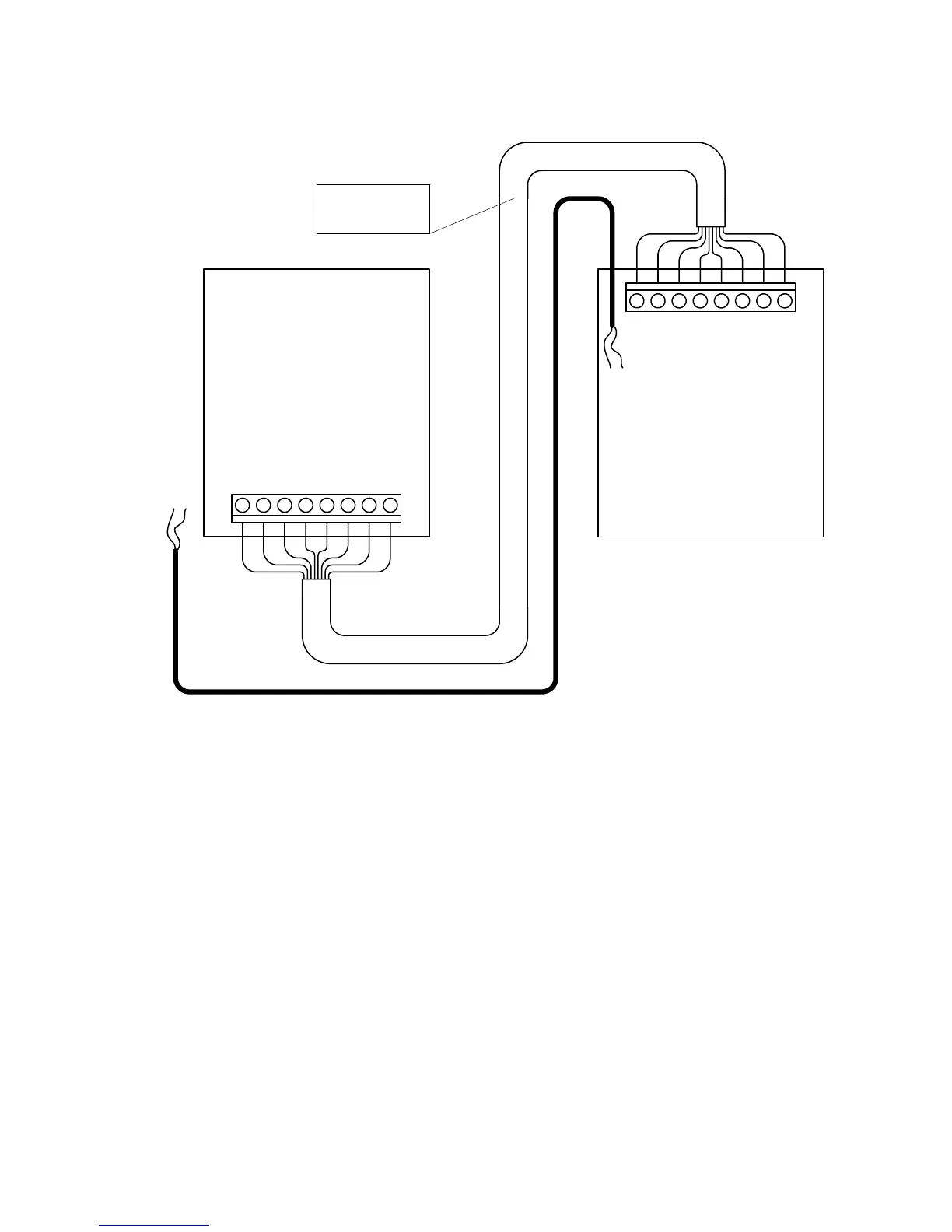

Wire terminals 1-8 on the 1599 board to terminals 1-8 on the 1506-081 secondary keypad.
Pay careful attention to the terminal numbers as they can appear backwards (numbered right
to left) when the faceplate is opened.
Use 22 AWG shielded cable, maximum length 200 feet.
The secondary keypad has no relays! Valid entry codes entered on the secondary keypad
will activate the relays in the 1506 keypad.
1599-010 Board
1506-081 Secondary Keypad
To Main
Terminals
13 and 14
To Secondary
Keypad Light
8-Conductor
22 AWG
Shielded Cable
To Next Page
