DoorKing 1600 Series Manual

2600-267-G-6-16

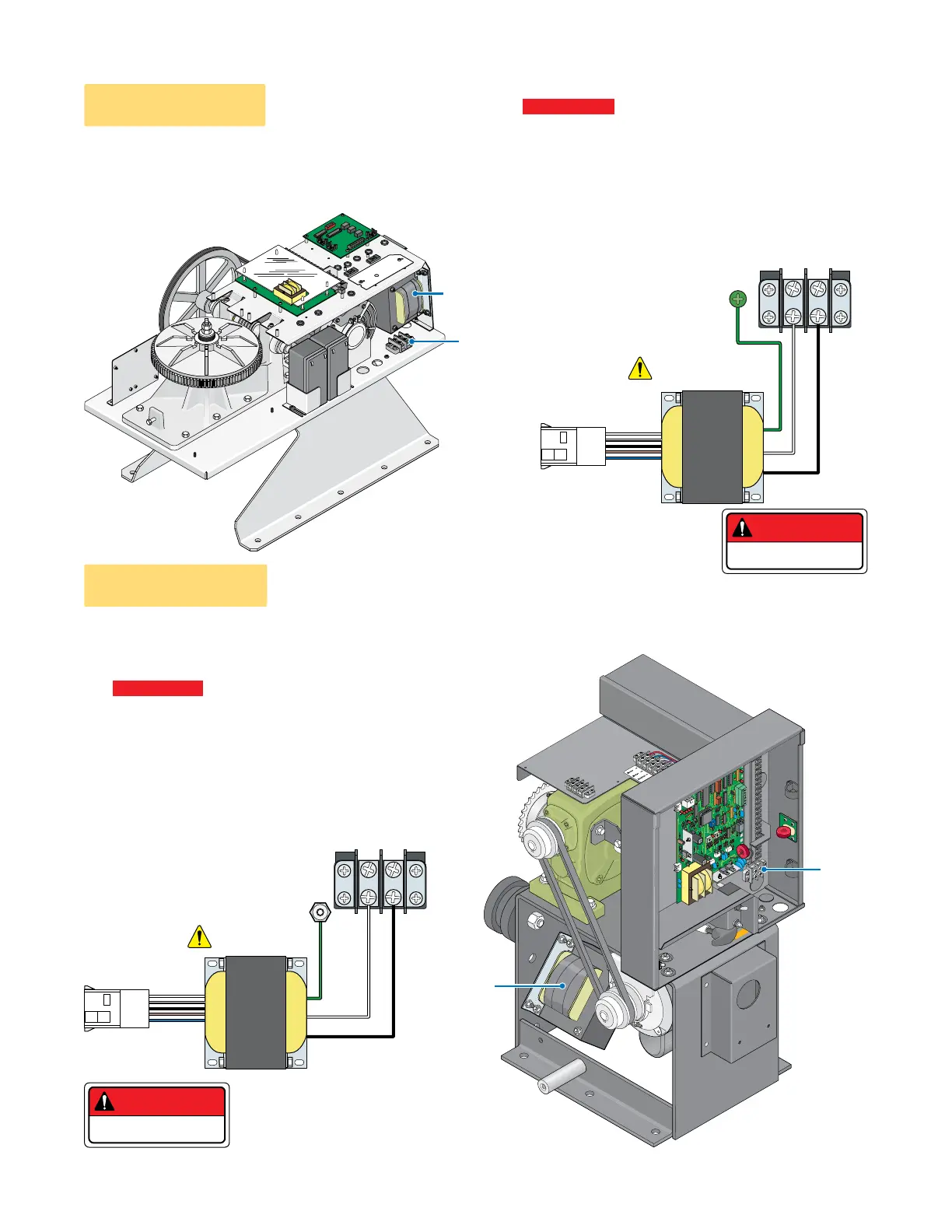

Model 9000
Installation for a 115 VAC 9000 primary operator ONLY.
Step 1: Bolt step-down transformer in position shown using the (4) four nuts and bolts supplied with this kit.
Step 2: Wire the step-down transformer for the desired input voltage (see first page).
Step-Down
Transformer
Mounting
Position
Power
Terminal
Primary
9000
ONLY
PU
S
H
T
O
O
P
E
R
A
T
E
t
e
ch
n
i
ci
a
n
u
se
o
n
l
y
Power
Dual Gate Operators Installation: When installing on bi-parting gates, a
step-down transformer and AC input power wire is only required for the
PRIMARY gate operator. Reduce the AC input power wire run max distance
by ONE-HALF.
“Optional” Heater Installation: When installing a heater, refer to the “high
voltage AC power wire size and distance limitations” table on the
instruction sheet with the heater kit for AC input power wire run limitations.
Important Notes:
Operator MUST be
properly grounded.
Chassis Ground
Neu Hot
Black
White
Green
115 VAC Input
115 VAC Output
115 VAC
Power Terminal
Step-Down
Transformer
Keep wires away
from moving parts.
DANGER
HIGH VOLTAGE!
Neu Hot
Model 6300
Installation for a 115 VAC 6300 primary operator ONLY.
Step 1: Mount step-down transformer on the 4 existing threaded studs using the (4)
four nuts supplied with this kit.
Step 2: Wire the step-down transformer for the desired input voltage (see first page).
Operator MUST be
properly grounded.
Step-Down Transformer
Mounting Position
Primary
6300
ONLY
Black
White
Green
115 VAC Input
115 VAC Output
Dual Gate Operators Installation: When installing on bi-parting gates,
a step-down transformer and AC input power wire is only required for
the PRIMARY gate operator. Reduce the AC input power wire run max
distance by ONE-HALF.
“Optional” Heater Installation: When installing a heater, refer to the
“high voltage AC power wire size and distance limitations” table on
the instruction sheet with the heater kit for AC input power wire run
limitations.
115 VAC
Power Terminal
Chassis
Ground
Step-Down
Transformer
Keep wires away
from moving parts.
DANGER
HIGH VOLTAGE!
Power Terminal
Important Notes:
Variable Input Power
(see first page)
Variable Input Power
(see first page)
Double check your chosen input voltage plug BEFORE
applying power to the step-down transformer. Failure to
choose the CORRECT input voltage plug for your desired
input voltage WILL damage operator and VOID warranty.
Double check your chosen input voltage plug BEFORE
applying power to the step-down transformer. Failure to
choose the CORRECT input voltage plug for your desired
input voltage WILL damage operator and VOID warranty.
