- 109 -

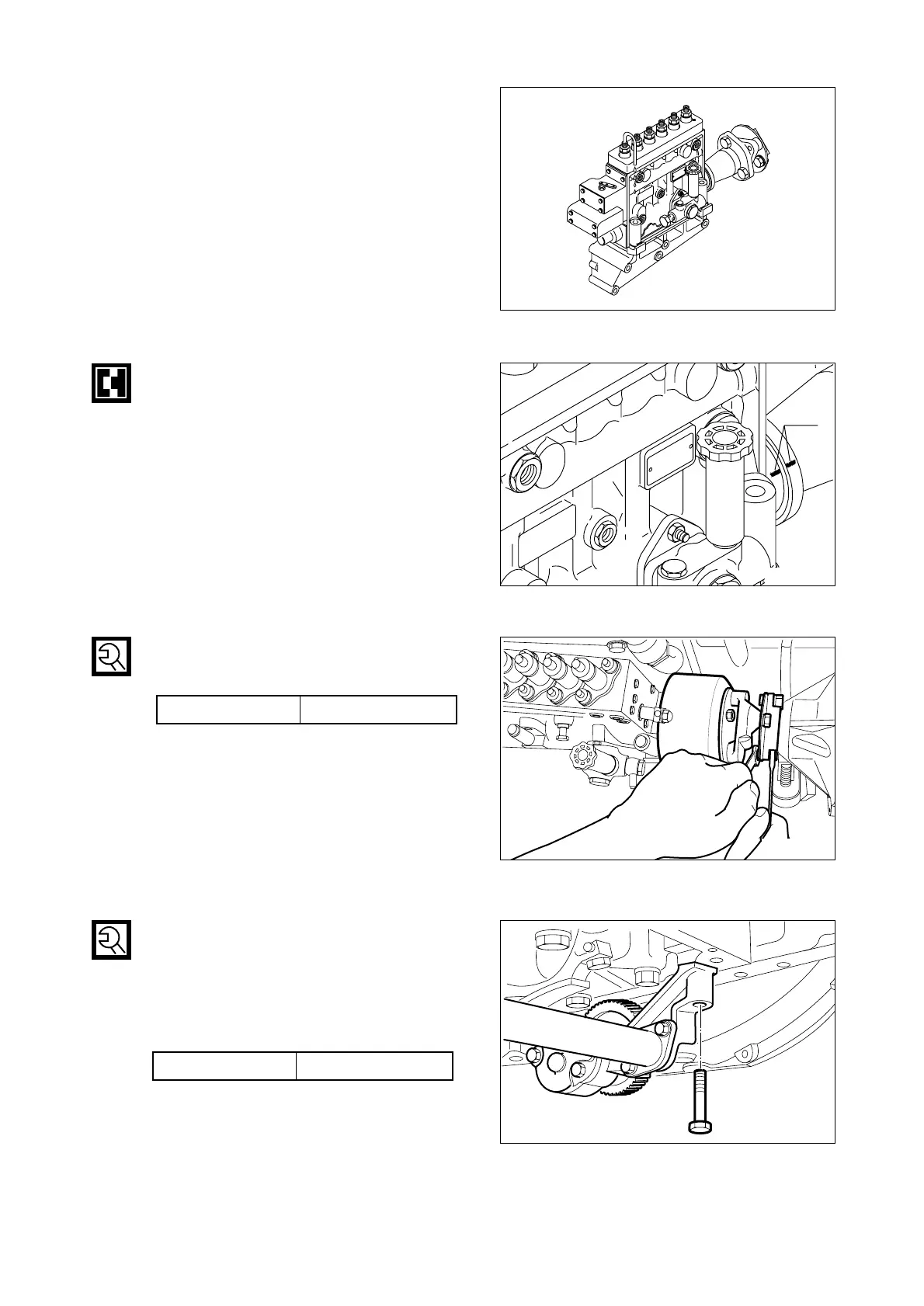

(2) Loosen the drive gear fixing bolt of injection
pump a bit.
(3) After turning slowly the coupling of injection
pump until the fuel will drop from #1
plunger at the rate of a drop for 6 ~ 8 sec.,
tighten the driving gear fixing bolt of fuel
pump.
•
After the adjustment of injection timing,
disassemble the “U” shape pipe, readjust
the delivery valve and the valve spring.
•
Turn the coupling until the notch mark of
the indicator plate attached to the fuel
injection pump is aligned with the notch
mark of the coupling.
•
Tighten the Coupling fixing bolts and
nuts to specified torque.
•
Install the oil delivery pipe and return
pipe.
9.3.17. Oil pump and oil pipe
•
Install a dowel pin in the No.7 bearing
cap, then assemble the oil pump by tap-
ping lightly with urethane hammer.
•
Insert the lock washers and tighten the
assembling bolts with specified torque.
•
Assemble the oil suction pipe with the
delivery pipe to oil pump by the bolts.
