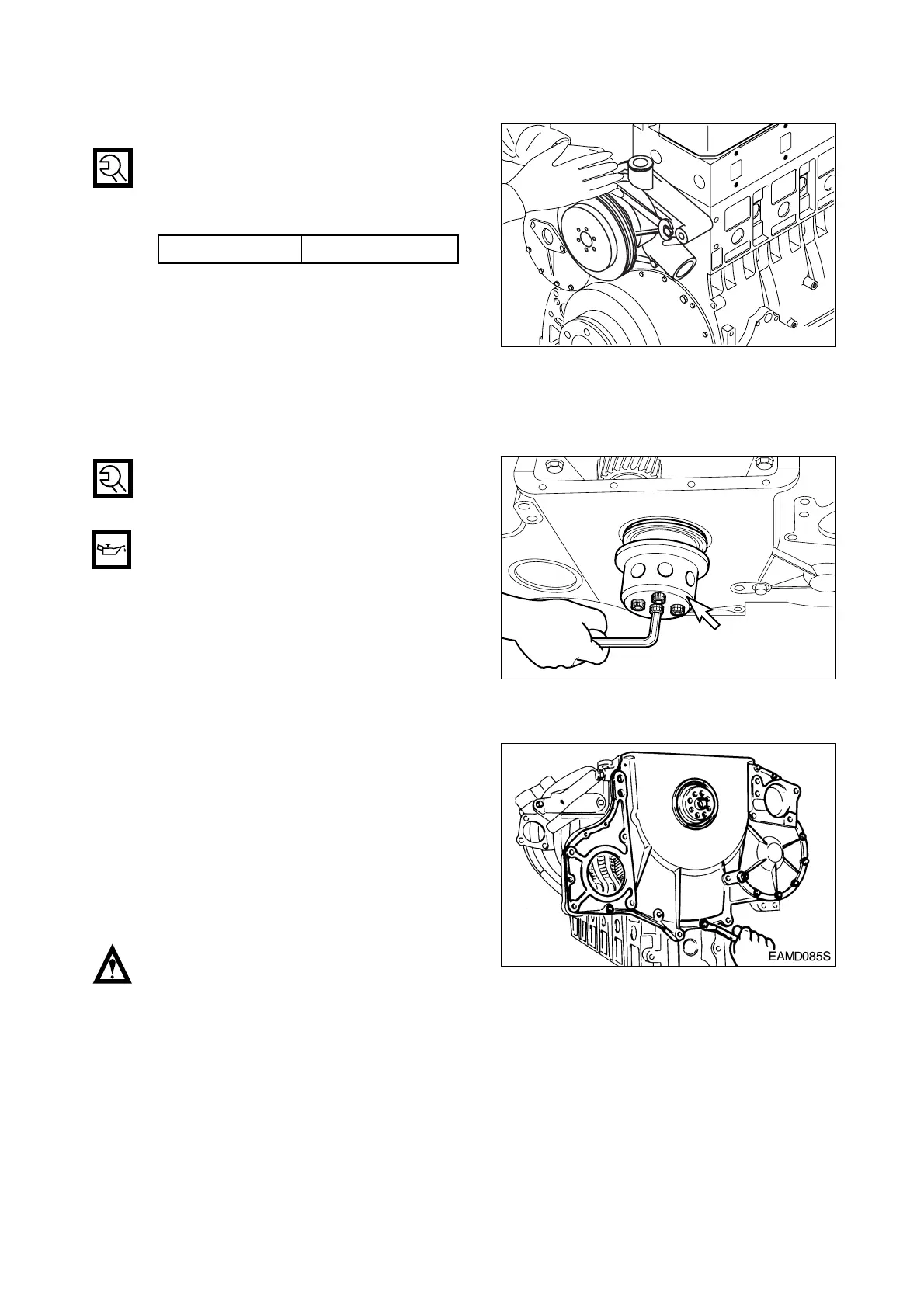

9.3.18. Water pump
•
Mount a new gasket.
•
Install the water pump on the cylinder
block and tighten the assembling bolts
with specified torque.
•
Connect water pipes and by-pass pipe to
the water pump.
•
Connect a water pipe to the expansion
tank.
9.3.19. Front oil seal
•
Apply lubricating oil to the outside of the
oil seal and the oil seal hole of the timing
gear case cover.
•
Put the new oil seal on the oil seal hole
of timing gear case cover aligning the
center of them, then assemble the oil
seal using an oil seal fitting jig.
9.3.20. Timing gear case cover
•
Install dowel pin on the timing gear case.
•
Mount a gasket by aligning the fixing bolt
holes with those on the gasket.
•
Align the dowel pin with the cover pin
hole, then install the cover with light tap.
•
Tighten the fixing bolts beginning with
the oil pan fitting face.
Caution :
In the assembling, be careful not to be
damaged by the crankshaft.
- 110 -
Torque 2.2 kg
.
m
