9.3.21. Vibration damper
•

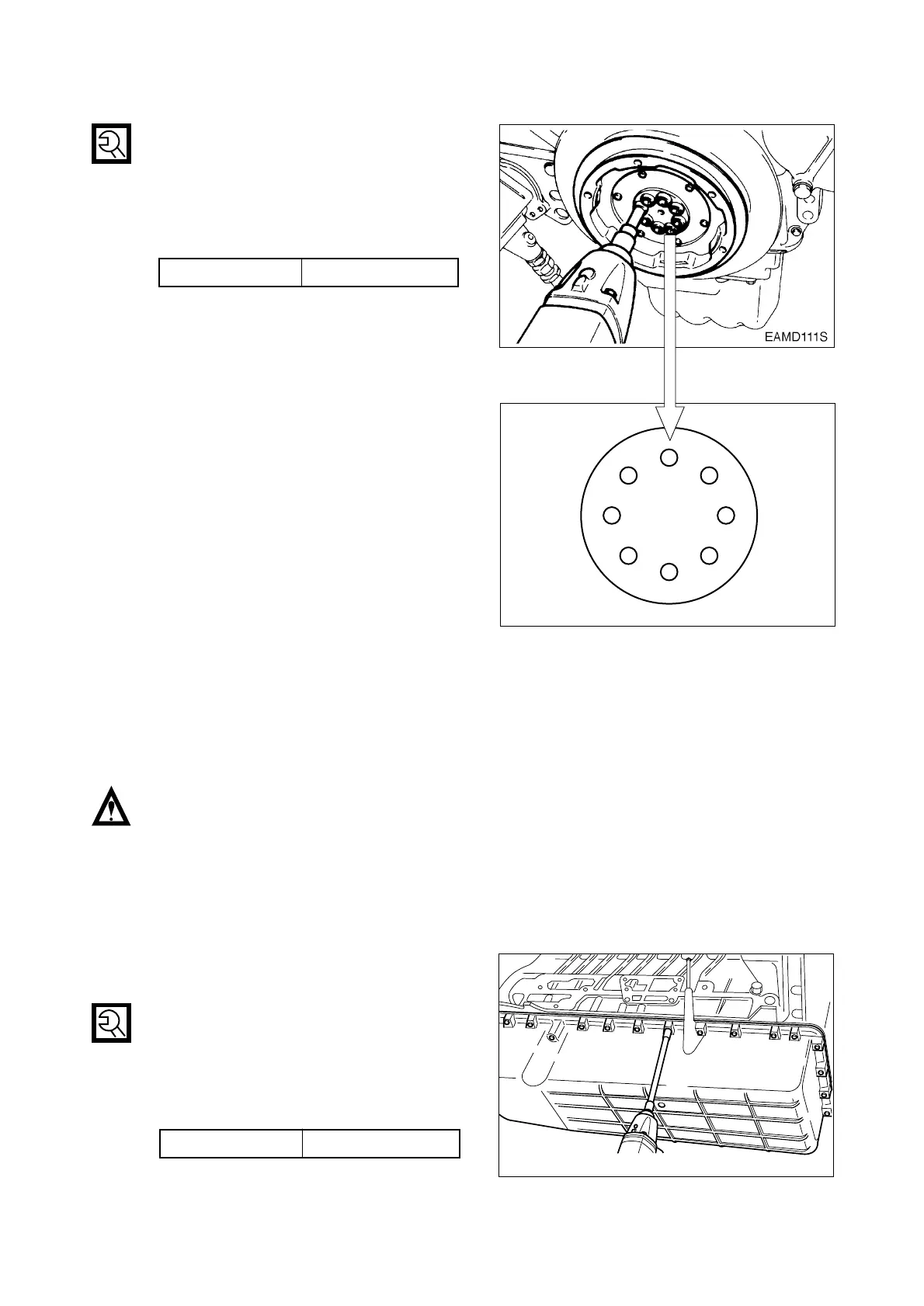

Insert the vibration damper to the
crankshaft, and assemble by tightening
the assembling bolts at the specified
tightening torque according to bolt tight-
ening order. (refer to right figure.)
9.3.22. Oil pan
•
Remove the gaskets thoroughly that pro-
ject at the timing gear case, case cover
of cylinder block, and the con-
tacting part of flywheel housing by
means of a scraper.
Caution :
Be careful for the gasket pieces not fall
into the engine during the work.
•
Coat the silicone at the gasket part that
was removed (Contacting part), and
attach the new oil pan gasket.
•
Assemble the oil pan by tightening the oil
pan assembling bolts, and when tighten-
ing bolts, primarily tighten the bolts (4ea)
at the both ends, and then tighten the
rest bolts to specified torque.
- 111 -
Torque 13 kg
.
m
