Vehicle System Specification 8

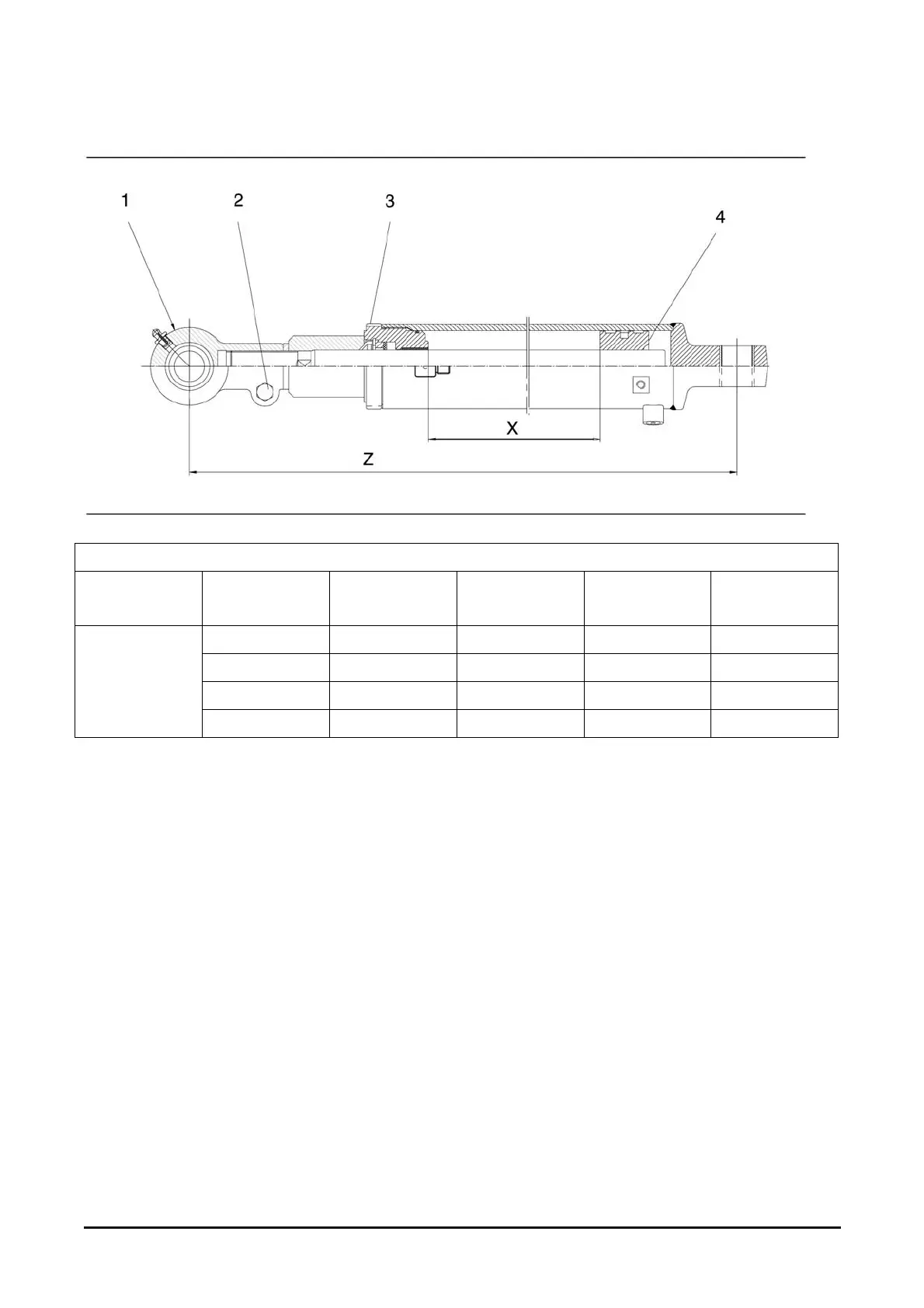

Tilt Cylinder
TILT CYLINDER
Model Tilt Gp
Part No.
Forward Tilt
Angle*
Backward
Tilt Angle*
Cyl. Stroke (X)
mm (in)
Cyl. Closed (Z)
mm (in)
A375282 6° 12° 167 (6.57) 514 (20.24)
A375322 6° 6° 110 (4.33) 571 (22.48)
A375324 6° 4° 92 (3.62) 589 (23.19)
D20G, G20G
D25G, G25G
D30G, G30G
A375335 6° 10° 148 (5.83) 533 (20.98)
* Permissible tolerance of 1/2°
(1) Adjust pivot eye to dimension (Z) with cylinder
closed.
(2) Torque for bolt............ 95 ±15 N·m (70 ±10 lb·ft)
(3) Torque for head.............................270 ±30 N·m
(200 ±22 lb·ft)
(4) Torque for piston nut......................270 ±30 N·m
(200 ±22 lb·ft)
