Operation Section
65

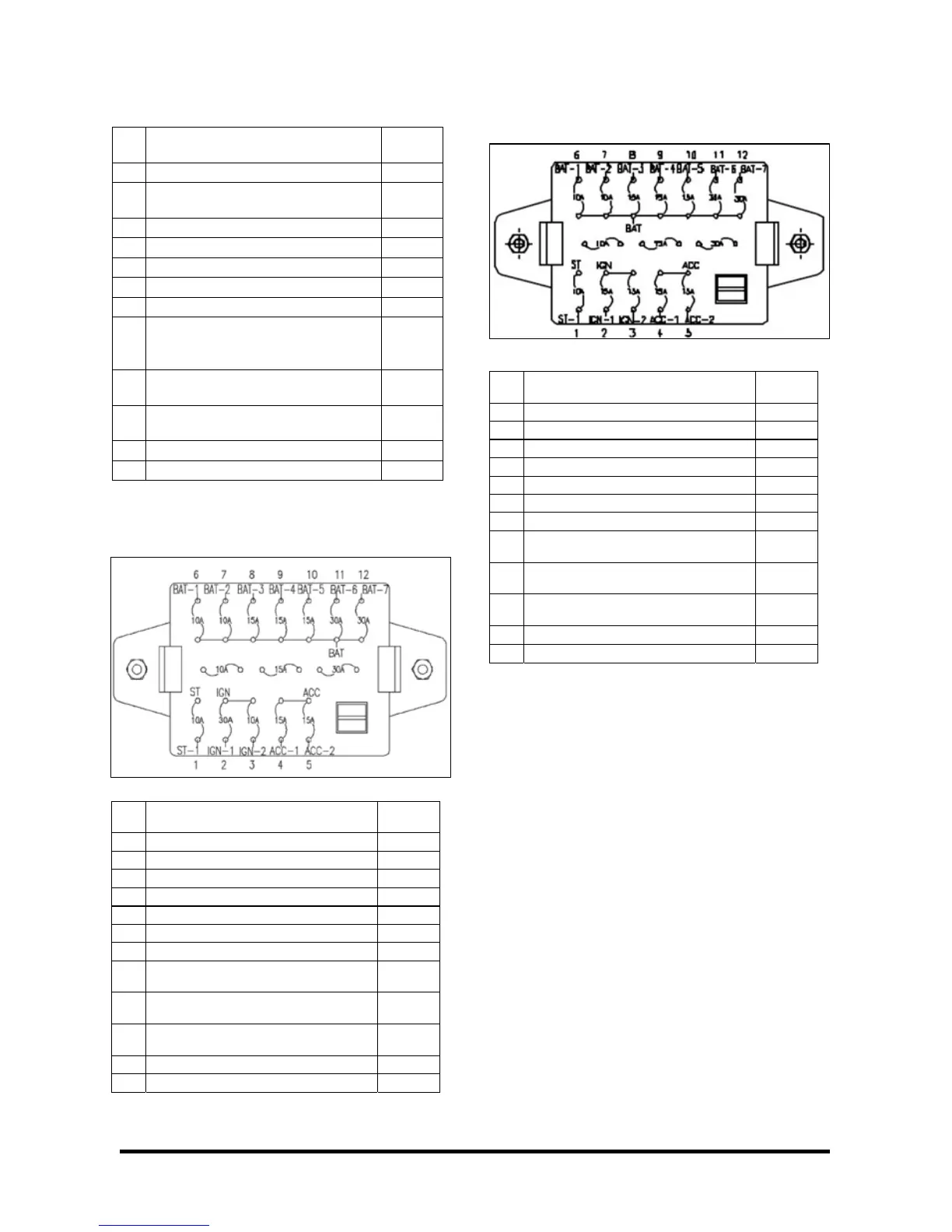

3. G50/60/70S-5 (2 Speed)
No. Description
Rated
Capacity
1 Engine Start 10A
2
ECU(Engine Control Unit) Main Relay Coil,
Iso3691 Valve, Alternator
10A
3 T/M Solenoid Valve Control Sys. 10A
4 Cabin Relay Coil, Aircon Relay Coil 15A
5 Gague Panel, Stop Lamp, Strobe Light 15A
6 Horn 10A
7 ECU power 10A
8
Head Lamp Relay Coil, Rear Lamp, Turn
Signal Lamp
Clearance Lamp
15A
9
Head Lamp(Hi Beam), Head Lamp(Low
Beam)
15A
10
Cigar Lighter, Power Socket, CD Player,
Wiper Motor (CABIN)
15A
11 Ignition Switch (St, Ign, Acc) 30A
12 Aircon, Heater 30A
4. D50/60/70/80/90S-5 TIER-3 (2/3 SPEED)
No. Description
Rated
Capacity
1 Engine Start 10A
2 Alternator, ECU,Fuel, Iso3691 Valve 30A
3 TCU(T/M Control Unit), T/M Display 10A
4 Cabin Relay Coil, Aircon Realy Coil 15A
5 Gauge Panel, Strobe Lighrt 15A
6 HORN 10A
7 TCU(T/M Control Unit) Power 10A
8 Rear Lamp, Turn Signal Lamp, Clearence
Lamp, Backup Lamp, OSS
15A
9 Head Lamp(HI Beam), Head Lamp(LO
Beam)
15A
10 Ci
g
er Li
g
hter, Power Socket, CD Player,
Wiper Motor(CABIN)
15A
11 I
g
nition Switch (St, I
g
n, Acc)
30A
12 Aircon(CABIN), Heater(CABIN) 30A
5. D50/60/70/80/90S-5 TIER-4 Interim (2/3 SPEED)
No.
Description
Rated
Capacity
1 Engine Start 10A
2
Alternator, ECU,Fuel, Iso3691 Valve
15A
3 TCU(T/M Control Unit), T/M Display 15A
4
Cabin Relay Coil, Aircon
Realy Coil
15A
5 Gauge Panel, Strobe Lighrt 15A
6
HORN
10A
7 TCU(T/M Control Unit) Power 10A
8
Rear Lamp, Turn Si
g
nal Lamp, Clearence
Lamp, Backup Lamp, OSS
15A
9
Head Lamp(HI Beam), Head Lamp(LO
Beam)
15A
10
Ciger Lighter, Power Socket, CD Player,
Wiper Motor(CABIN)
15A
11
I
g
nition Switch
(
St, I
g
n, Acc
)
30A
12
Aircon(CABIN), Heater(CABIN) 30A
