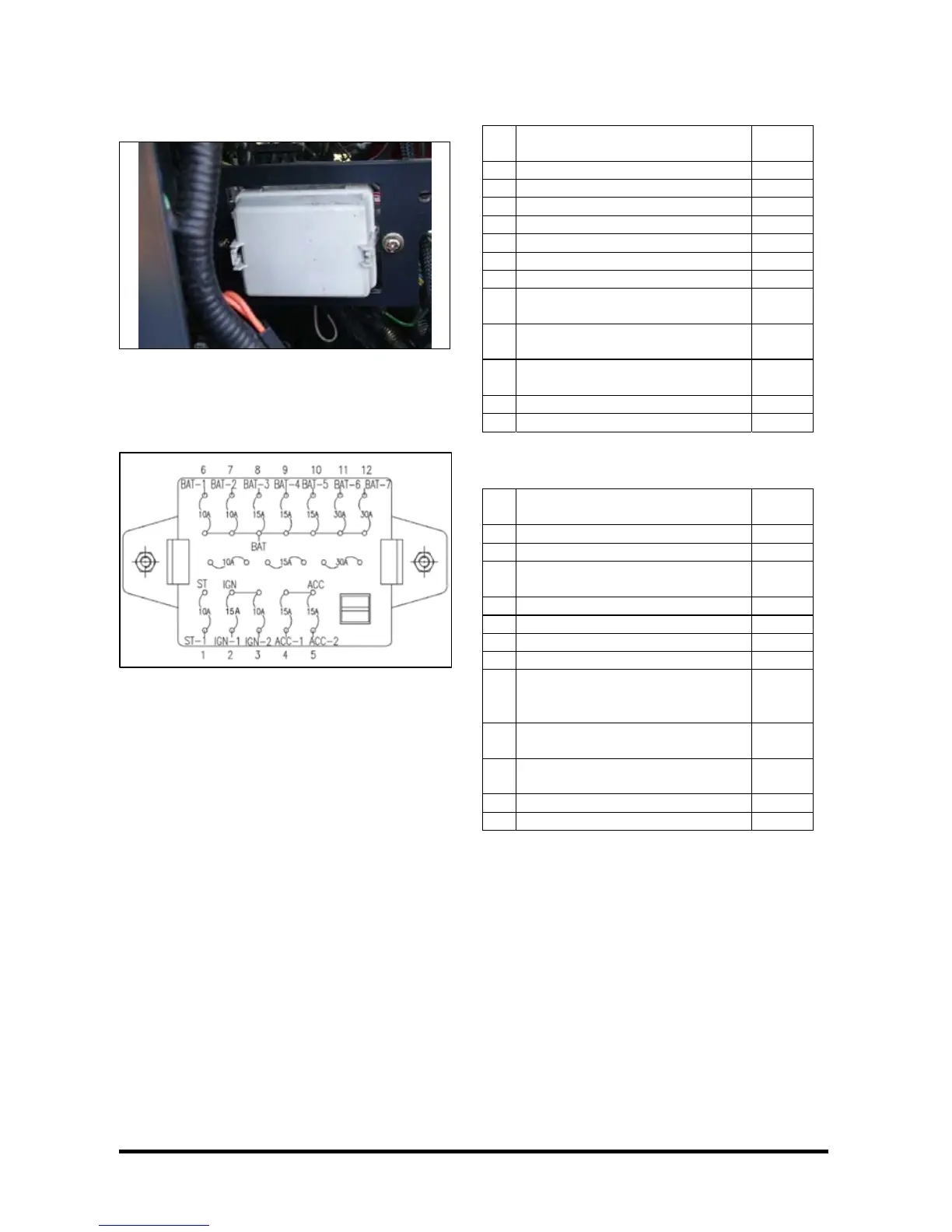

Fuse Box
Typical Example
Fuse Locations
Fuses protect the electrical system from damage
caused by overloaded circuits. Change a fuse if the
element separates. If the element of a new fuse
separates, have the circuit checked and repaired.
1. D50/60/70S-5 (2 Speed)
No.
Description
Rated
Capacity
1 Engine Start 10A
2 Alternator, ECU, Fuel, Iso3691 Valve 10A
3 T/M Solenoid Valve Control Sys. 10A
4 Cabin Relay Coil, Aircon Relay Coil 15A
5 Gague Panel, Strobe Light 15A
6 Horn 10A
7 Spare 10A
8
Rear Lamp, Turn Signal Lamp
Clearance Lamp
15A
9
Head Lamp(Hi Beam), Head Lamp(Low
Beam)
15A
10
Cigar Lighter, Power Socket, CD Player,
Wiper Motor (CABIN)
15A
11
Ignition Switch (St, Ign, Acc) 30A
12
Aircon, Heater 30A
2. D50/60/70/80/90S-5 (3 Speed)
No.
Description
Rated
Capacity
1 Engine Start 10A
2 Alternator, ECU, Fuel, Iso3691 Valve 10A
3
TCU(T/M Control Unit) Ignition, T/M
Display
10A
4 Cabin Relay Coil, Aircon Relay Coil 15A
5 Gague Panel, Strobe Light 15A
6 Horn 10A
7 TCU(T/M Control Unit) Power 10A
8
Head Lamp Relay Coil, Rear Lamp, Turn
Signal Lamp
Clearance Lamp, Backup Lamp OSS
15A
9
Head Lamp(Hi Beam), Head Lamp(Low
Beam)
15A
10
Cigar Lighter, Power Socket, CD Player,
Wiper Motor (CABIN)
15A
11
Ignition Switch (St, Ign, Acc) 30A
12
Aircon, Heater 30A
