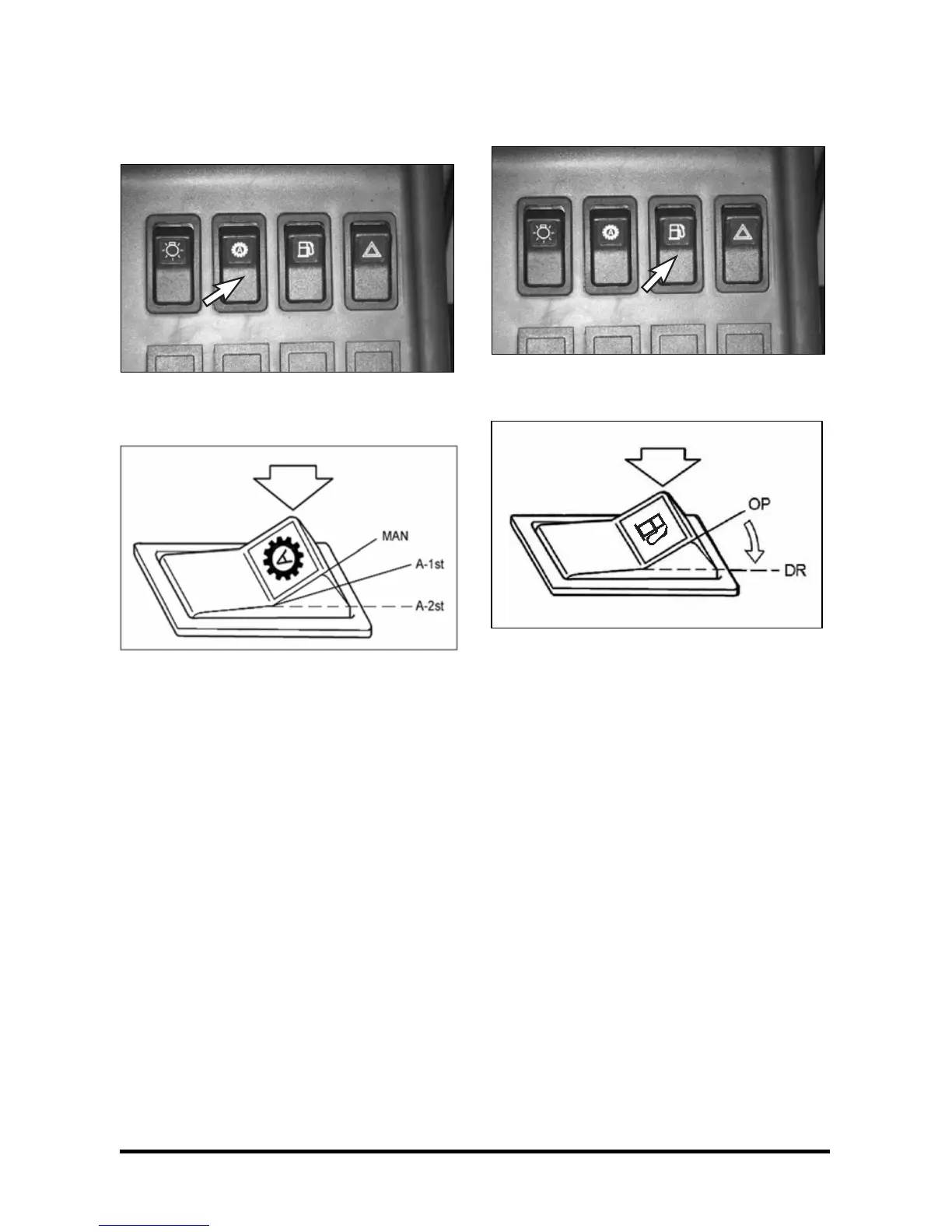

Automatic Transmission Switch (3
Speed Only)
Automatic speed range:
. FORWARD: 3 speeds.
. REVERSE: 3 speeds.
MAN When this switch is in "MAN"(manual) position,
travel mode is switched to "MANUAL" and
allows operator to choose speeds manually.
A-1
ST
When this switch is in "A-1
ST
"(automatic 1
ST
)
position, gears are started from 1
ST
speed and
changed "AUTOMATICALLY" to the
appropriate speed up to the limit set by the
gear ratio according to travel load and engine
rpm.
A-2
ND
When this switch is in "A-2
ND
"(automatic 2
ND
)
position, gears are started from 2
ND
speed and
changed "AUTOMATICALLY” to the
appropriate speed up to the limit set by the
gear ratio according to travel load and engine
rpm.
Inching Switch (3 Speed Only)
This switch changes over the modes of the inching
control pedal, inching and no-inching.
DR In this position, the "NO INCHING" mode is
selected. In the "NO INCHING" mode, the
inching pedal control is disabled but braking
function by pushing on the inching pedal is still
active.
OP In this position, the "INCHING" mode is
selected. In the "INCHING" mode, normal
inching function is enabled by pushing on the
inching pedal.
NOTE: When driving a middle or long distance
without using the inching function, set this
switch to "DR" position to prevent the
transmission clutch pedals from
unnecessary wear or overheat.
