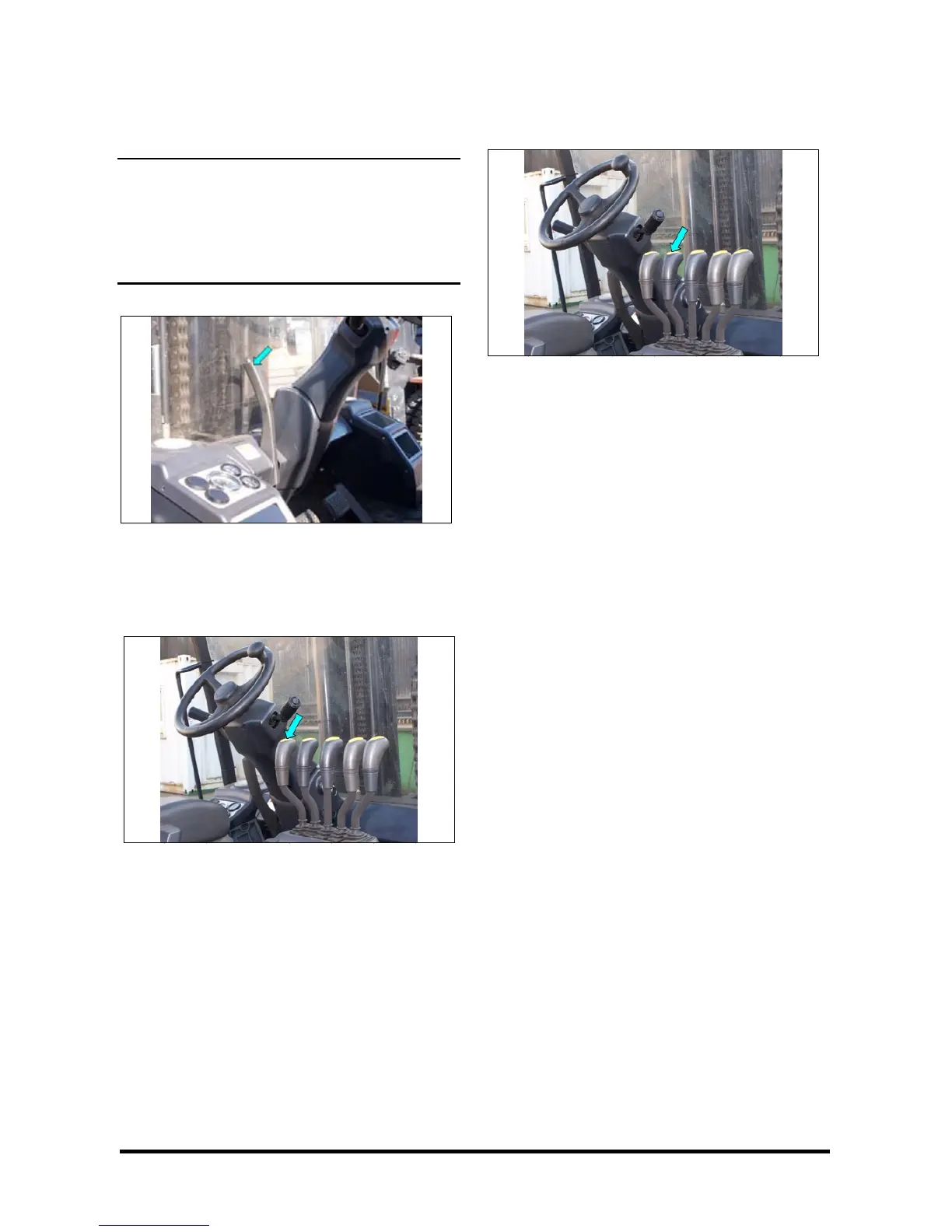

Parking Brake Lever
NOTICE
Do not engage the parking brake while the lift truck
is moving unless an emergency exists. The use of
the parking brake as a service foot brake in regular
operation will cause severe damage to the parking
brake system.
The parking brake lever is located at the left side of
the steering wheel.
Lift Control
The forks can be raised or lowered by pulling
backwards or pushing forwards on this lever. The lift
speed is controlled by tilt angle of the lever and
accelerator pedal effort. The lowering speed can be
controlled by tilt angle of the lever. The engine
speed or accelerator pedal has nothing to do with
the lowering speed of the forks.
Tilt Control
The mast can be tilted by operation of this tilt lever.
Pulling on this lever backwards will tilt the mast
backwards, and pushing it forwards will tilt the mast
forwards. The tilt speed can be controlled by tilt
angle of the lever and accelerator pedal effort.
