Doosan D80S-7 - Page 82

Operation Section
79

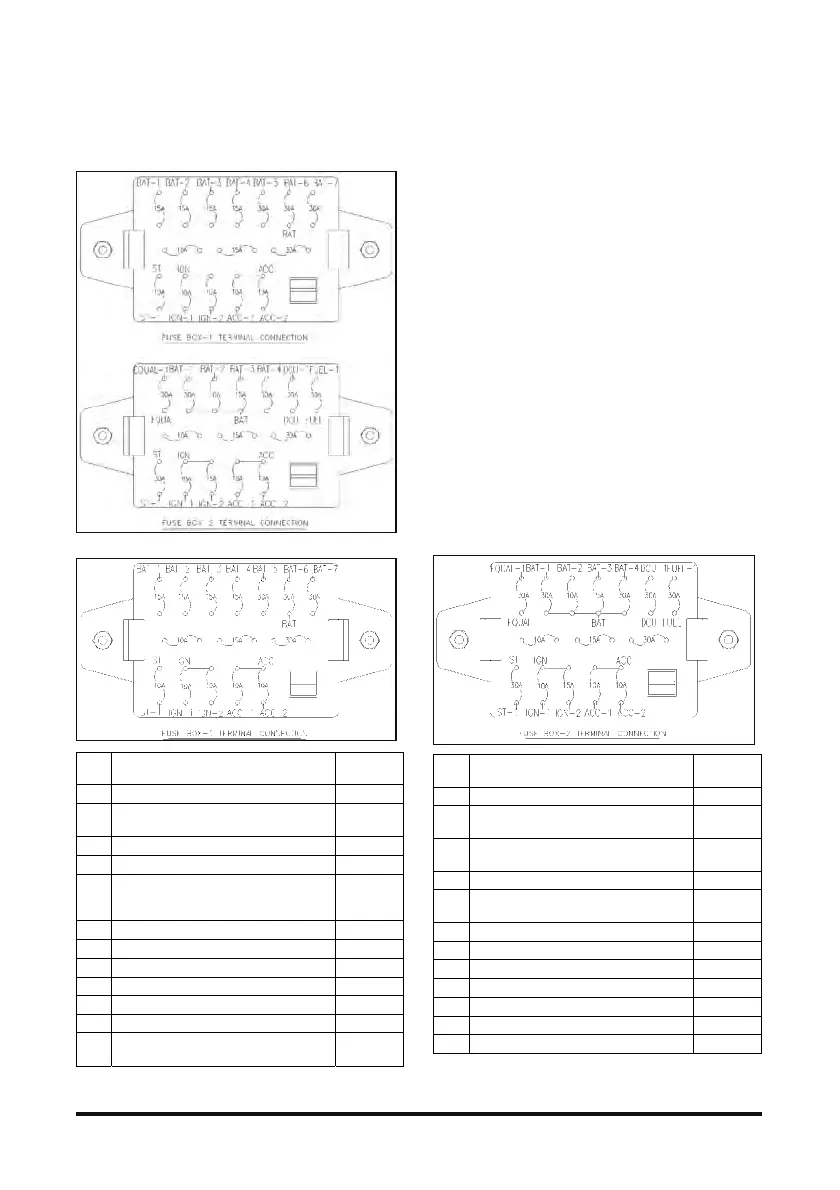

Fuse Locations
1. D60/70/80/90S-7 (3 SPEED)
No. Description
Rated
Capacity
1 START RELAY 10A
2 OSS CONTROLLER(IGN)
PARKING BRAKE CONTROLLER
10A
3 LCD DISPLAY, TCU F/R LEVE
R
10A
4 HAZARD SWITCH, CABIN RELAY 10A
5 GAUGE LAMP, ENGINE CHECK
LAMP, CHARGE LAMP, PREHEAT
LAMP
10A
6 HORN 15A
7 TCU POWER 15A
8 COMBI LAMP, REAR LAMP 15A
9 WORKING LAMP 15A
10 FRONT WIPER 30A
11 MAIN POWER (KEY SW-BAT) 30A
12 CABIN POWE
R
(AUDIO,REAR WIPER)
30A
Fuses protect the electrical system from damage
caused by overloaded circuits. Change a fuse if the
element separates. If the element of a new fuse
separates, have the circuit checked and repaired.
No. Description
Rated
Capacity
1 CIGAR LIGHTER, WIPER TIMER 30A
2 ECU KEY POWER, FUEL HEATER
RELAY
10A
3 ISO 3691 VALVE, TCU AUTO
NEUTRAL, PARKING
15A
4 CAMERA OPTION (ACC) 15A
5 STOP LAMP, AIRCON
/
HEATER
RELAY, CD PLAYER
15A
6 ECU POWER 30A
7 AIRCON/HEATER 30A
8 OSS CONTROLLER (BAT) 10A
9 OPTION (BAT) 15A
10 POWER PACK (OPTION) 30A
11 DCU POWER 30A
12 FUEL HEATER 30A
