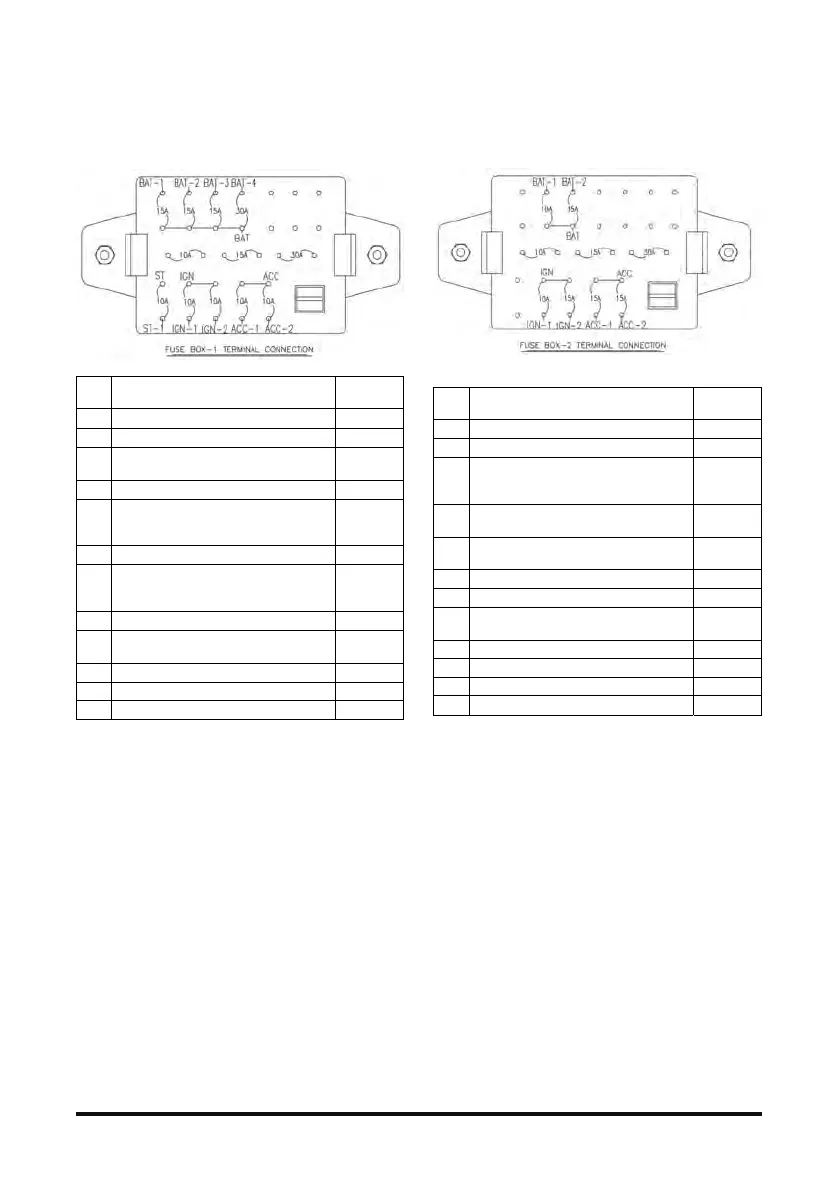

Doosan D80S-7 - Lift Truck Controls and Switches

Operation Section
81
3. G60/70S-7
(2 speed, Overhead Guard)
No. Description
Rated
Capacity
1 VIC CONN (START) 10A
2 OSS CONTROLLER (IGN) 10A
3 AS CONTROLLER POWE
R
F/R LEVEL
10A
4 HAZARD LAMP 10A
5 GAUGE LAMP
ENGINE CHECK LAMP
CHARGE LAMP
10A
6 HORN 15A
7 BACK BUZZER
FLASH UNIT
REAR LAMP
15A
8 WORKING LAMP 15A
9 MAIN POWE
R
(KEY SW-BAT)
30A
10
11
12
No. Description
Rated
Capacity
1
2 VIC CONN (IGN) 10A
3FWD RELAY
CREEP SPEED RELAY
ISO SOL V/V
15A
4CAMERA
OPTION (ACC)
15A
5STOP LAMP
STROBE
15A
6
7 OSS CONTROLLER (BAT) 10A
8 OPTION (BAT)
FRONT WIPER
15A
9
10
11
