ENGINE DISASSEMBLY
- 69 -
z

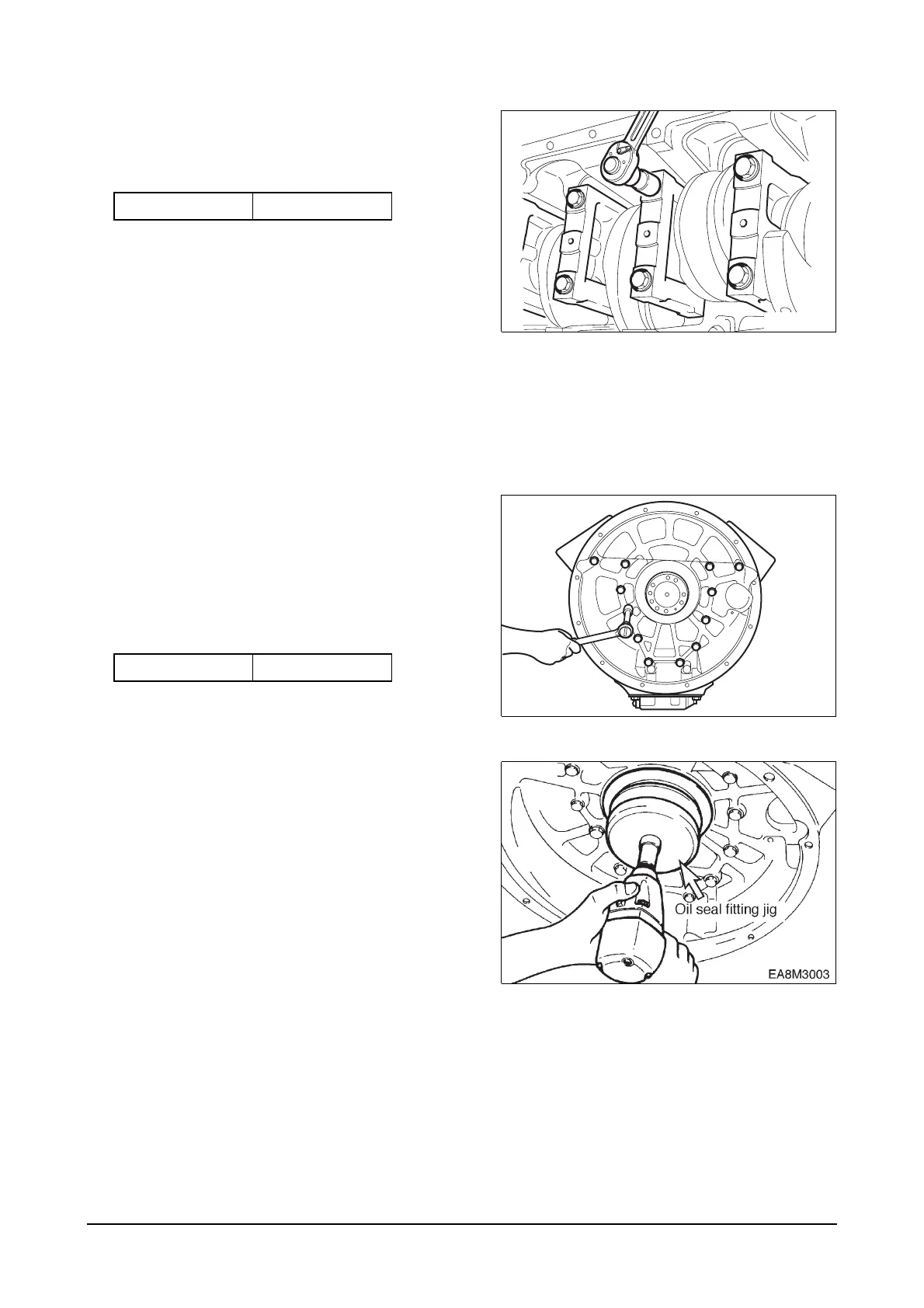

Apply oil to the entire part of the bearing cap
bolts, then tighten in tightening sequence to
specified torque.
z
After semi-tightening both bolts evenly, tighten
them diagonally to about 15kg.m for the first
stage and 25
kg•m
for the second stage
respectively, then tighten them completely to
the specified torque using a torque wrench.
z
Tighten the bearing cap in the sequence of 4-3-5-2-6-1-7.
z
Check to see that the assembled crankshaft turns smoothly.
3.3.6. Flywheel housing
z
Temporarily install the guide bar on the cylinder
block.
z
Apply gasket to the cylinder block.
z
Using the dowel pin and guide bar, install the
flywheel housing and tighten the fixing bolts in a
diagonal sequence to specified torque.
3.3.7. Timing gear case
z
Apply lubricating oil to the outside of the oil seal
and flywheel housing inside diameter and fit
them over the crank shaft, then assemble the
oil seal using an oil seal fitting jig.
EAMD079I
Torque
30 kgf
•
m
EAMD043I
Torque
12 kgf
•
m
To Next Page
