DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
99

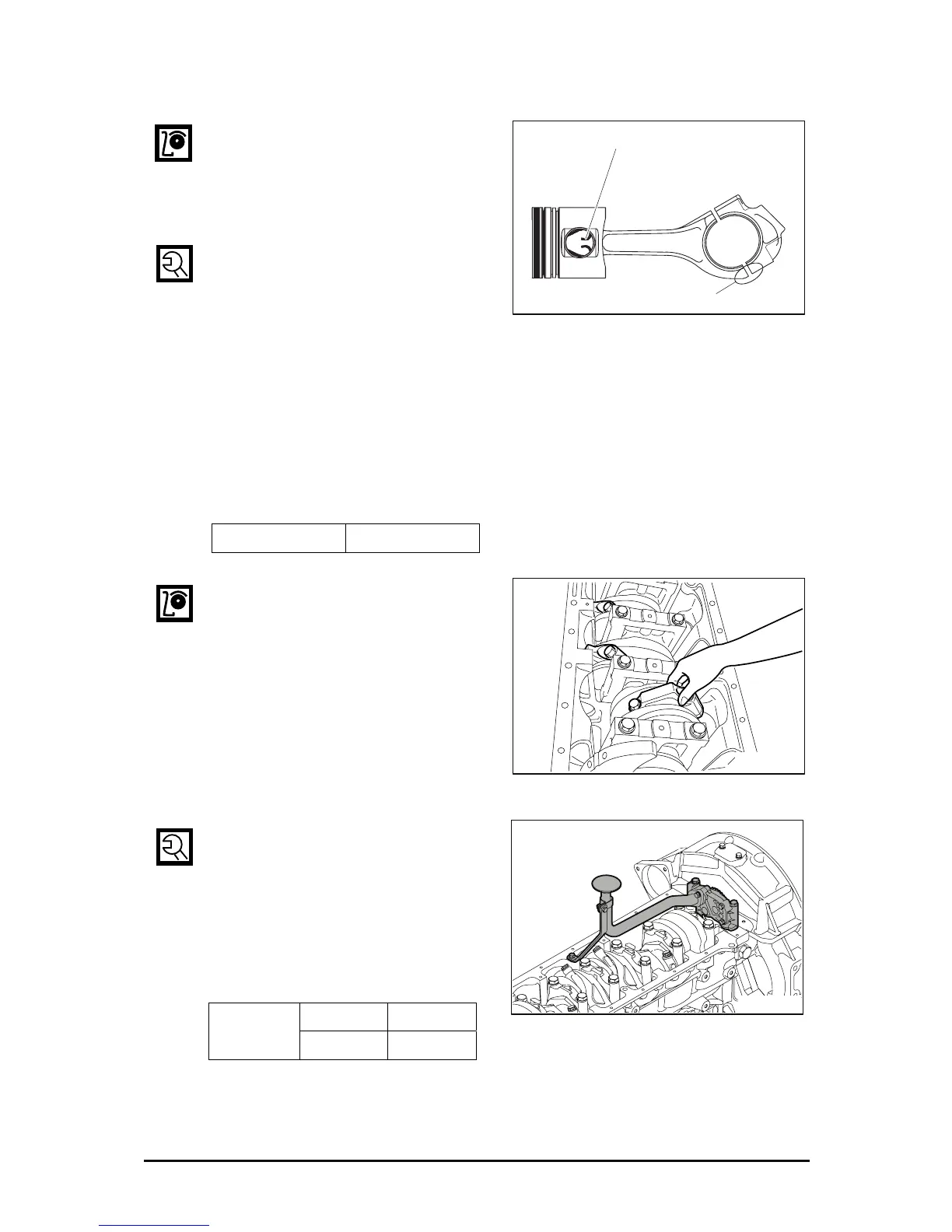

z Make sure that the manufacture serial
numbers impressed on the connecting
rod cap and connecting rod big end are
identical, and install the connecting
rod cap by aligning it with dowel pin.
z Wet the fixing bolts with engine oil,
semi-tighten them with hand, tighten
them to the specified torque using a
torque wrench as follows.
< Tightening order >
First stage : Spray oil on the bolts.
Second stage : Assemble the connecting rod bolts with hands, until the bolt head fixing
part touches the bolt seating surface of both sides with bare hands.
Third stage : Fasten to 4 ~ 6 kgf•m with a torque wrench.
Fourth stage : Fasten to 9.75 kgf•m finally with a torque wrench.
z Shake the bearing cap with hands. If
the bearing cap doesn't move, loosen
and assemble again.
3.3.14. Oil pump and oil pipe
z Assemble the standard pint to the
bearing cap number 7, and beat the
oil lamp softly with a urethane
hammer to assemble.
z Assemble the washer, and fasten the
bolt for assembly with the pre-defined
torque.
z Assemble the oil supply pipe to the oil pump, using bolts.
Torque 9.75 kgf•m
Torque
M8 2.2 kgf•m
M10 4.4 kgf•m
EK4OM001
Install the opening part of
the snap ring on the opposite
side of upper/lower side
Same number marking position
EAMD094I
EK4OM059
