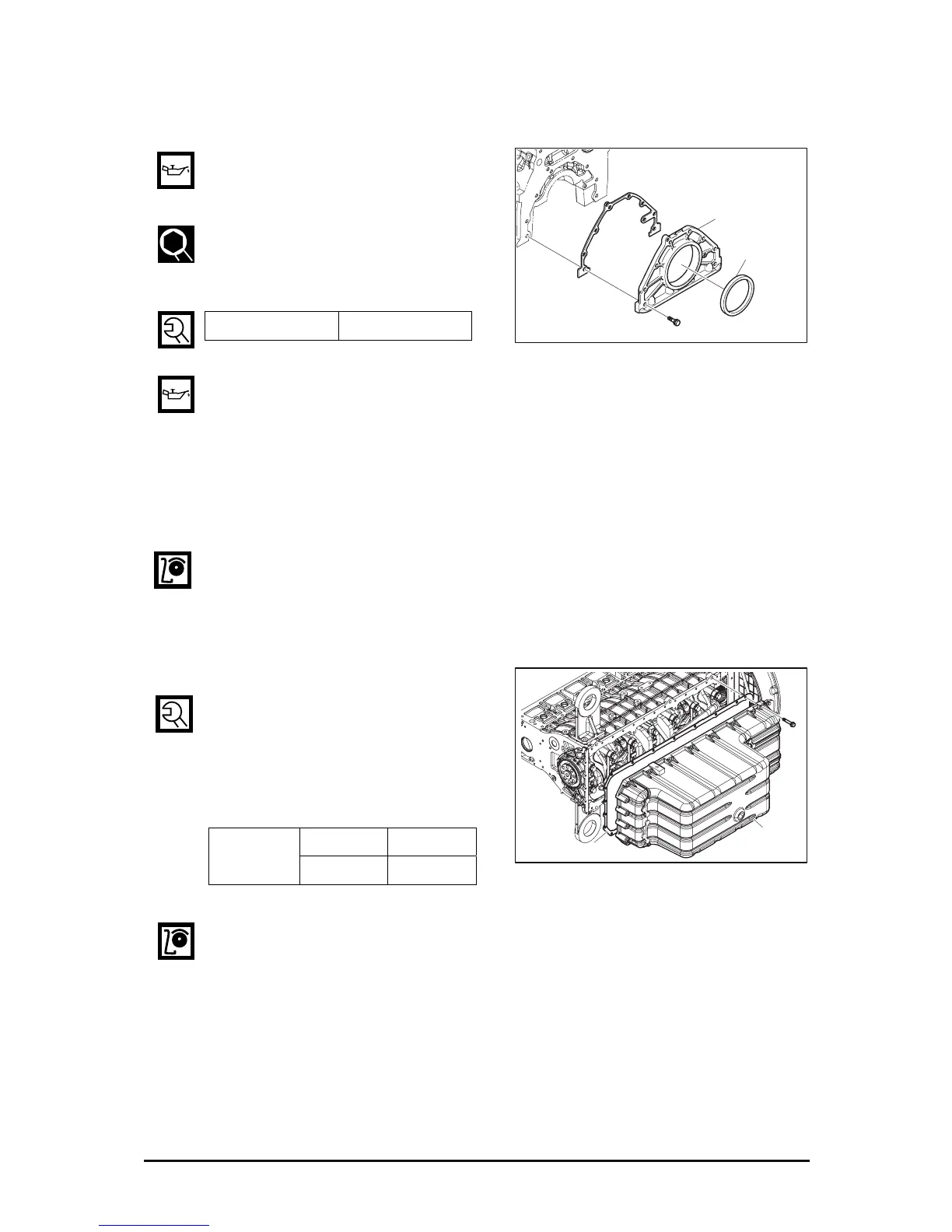

3.3.15. Oil seal
z Apply engine pile on the inner side of
the oil seal, and install the oil seal on
the cover.
z Adjust the new oil seal to the center of
the oil seal cover hole, and assemble
the oil seal using the assembly jig.
z Item number of the oil seal assembly jig
: EF.121-299
3.3.16. Oil pan
z Remove the projected gasket with scrapper completely from the timing gear case,
cover, cylinder block, and flywheel housing contact surface.
CAUTION :
Be careful not to drop a gasket into the engine during maintenance works.
z Apply silicon to the place where the gasket was removed, and attach the new oil
pan gasket.
z Fasten the bolts for oil pan assembly
to assemble the oil pan.
z Fasten four bolts at both ends first and
fasten remaining bolts with the
predefined torque at the time of
assembly.
z Adjust the bolt hole to the gasket hole to prevent the damage to the gasket, and
fasten the bolt.
Torque 2.2 kgf•m
Torque
Oil pan 2.2 kgf•m
Drain plug 10 kgf•m
EK4OM077
Oil seal
Oil seal cover
EJ9OM046
Oil pan
Gasket
