DL06K Interim Tire-4 Diesel Engine Technical Information
27

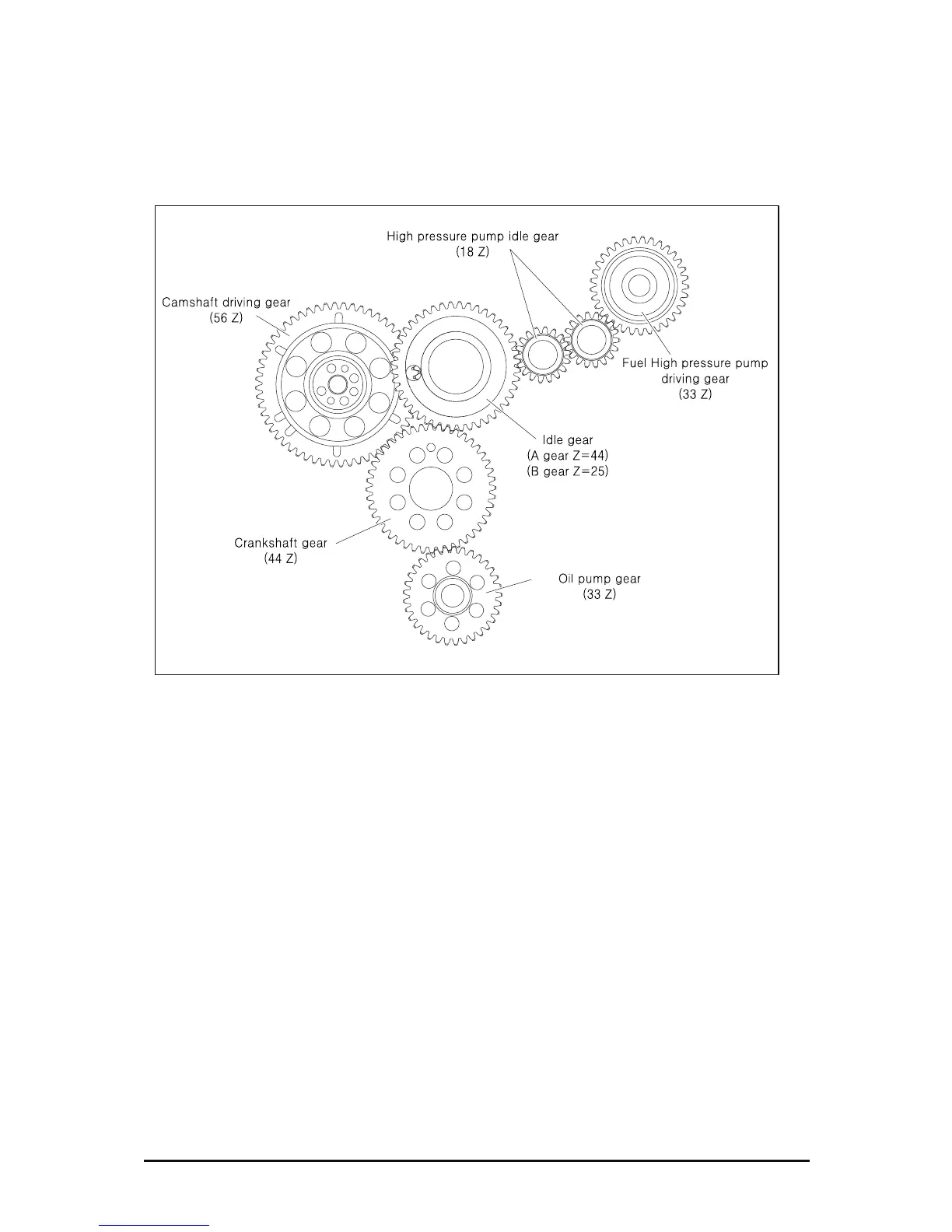

2.3.10. Engine timing
z Camshaft, oil pump, fuel high pressure pump are driven by gear connection
inside the engine flywheel housing.
2.3.11. Valve
z The overhead valve is operated by the valve tappet, push rod, and rocker arm on
the camshaft.
EK4OM009
