DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
55

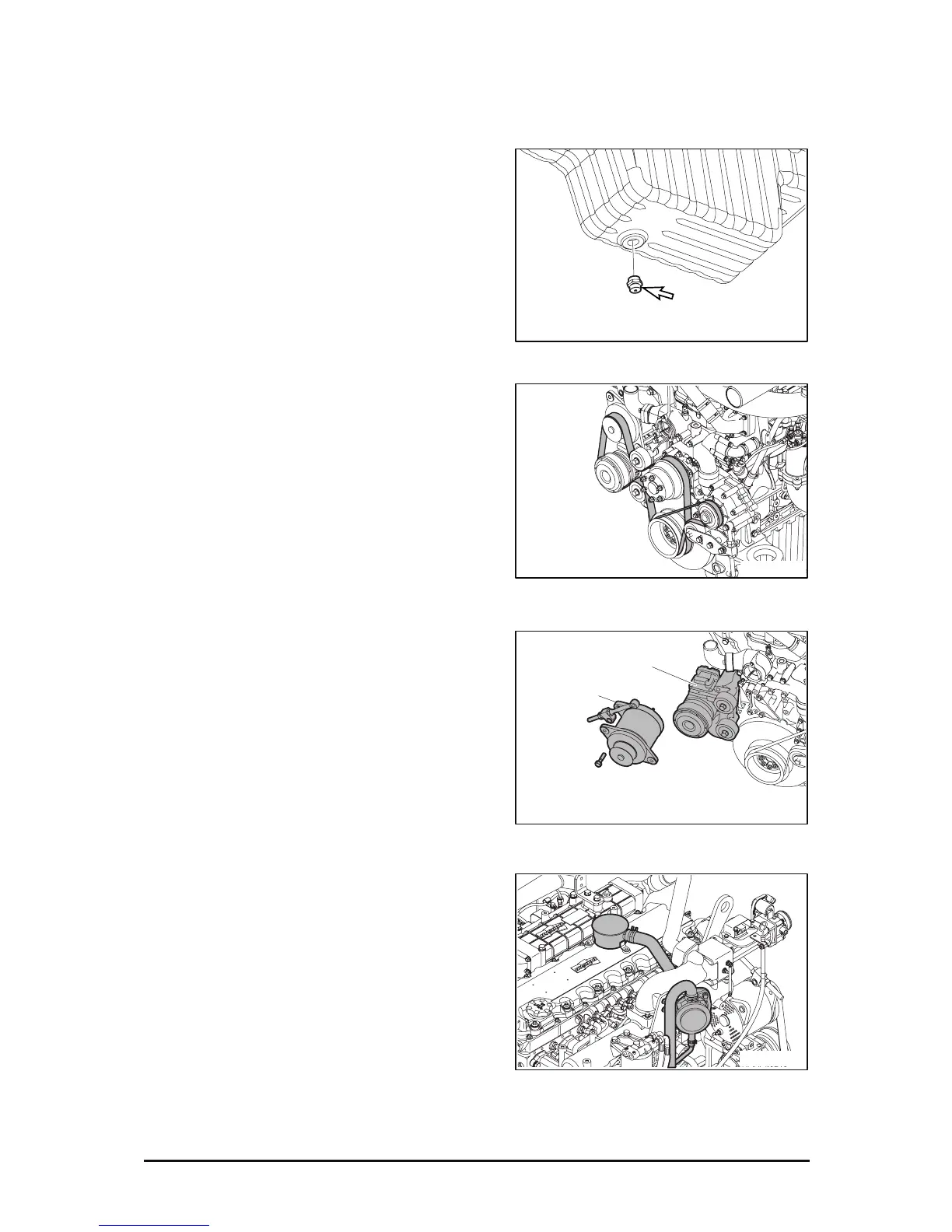

3.1.4. Engine oil
z Open the drain plug of the oil pan and
drain engine oil to the prepared container.
3.1.5. Belt
z Unfasten the tension adjustment bolts
and fixing bolts of the air conditioner
compressor, air compressor, and
alternator, and disassemble the belt.
3.1.6. Alternator and air conditioner compressor
z Unfasten fixing bolts and disassemble
the alternator.
z Unfasten the idle pulley fixing bolts and
disassemble the air compressor.
3.1.7. Breather
z Loosen the clamp screw to remove the
rubber hose.
z Remove the breather valve assembly.
EK4OM043
Air compressor
Alternator
EK4OM033
Drain valve
EK4OM035
EL4OM009
