DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
56

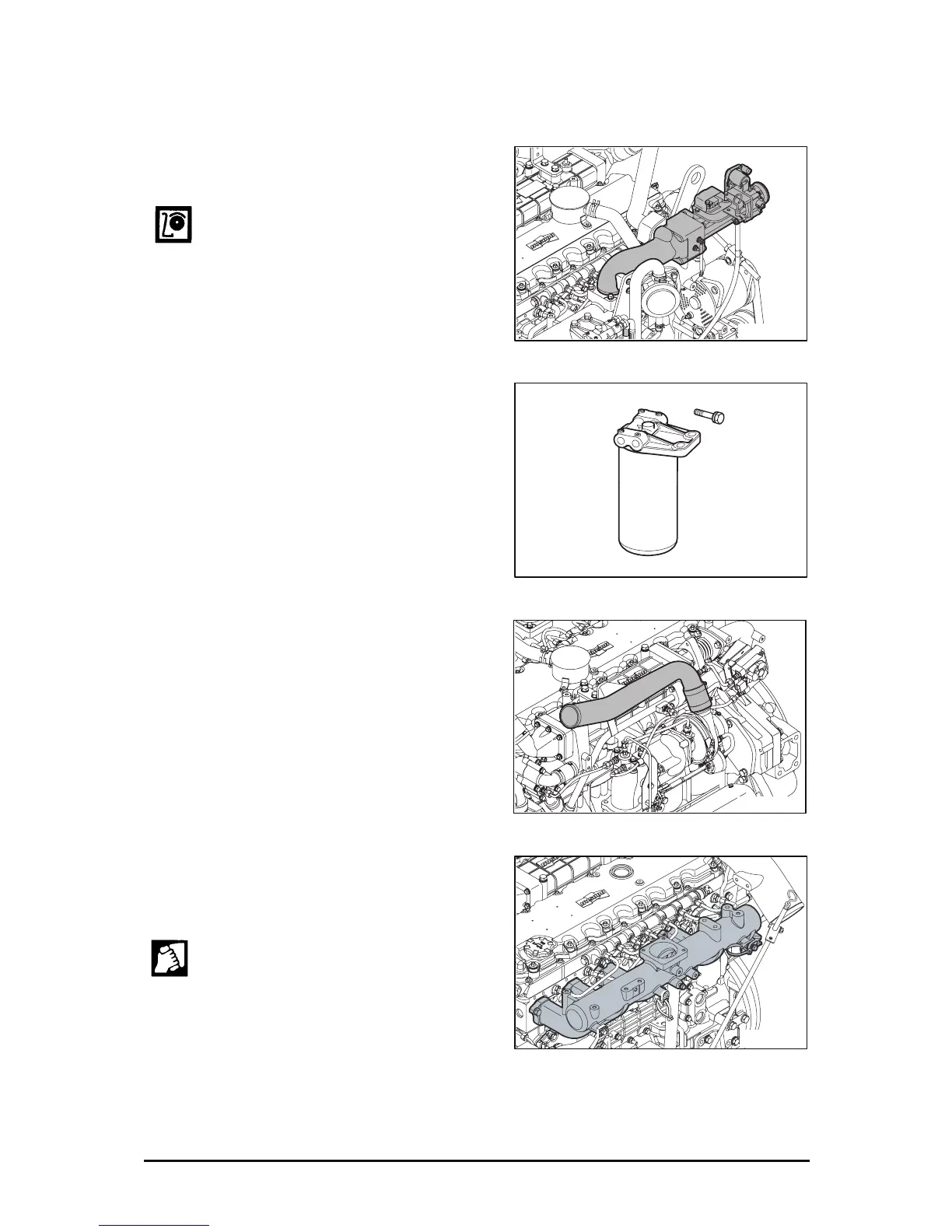

3.1.8. Air pipe and air heater
z Loosen and remove fixing bolts of the
air pipe and air heater.
z Be careful not to input any foreign
object into the turbo charger.
3.1.9. Fuel filter
z Loosen the hollow screws of the fuel
filter and disassemble the fuel hose.
z Loosen the fixing bolts of the fuel filter
and disassemble the fuel filter.
3.1.10. Intake stake
z Loosen the fixing bolts and remove
the air hose.
3.1.11. Intake manifold
z Disassemble the bolts for intake
manifold assembly and detach the
cylinder block from the intake manifold.
z Detach the gasket and clean the
gasket mounting surface with a
scraper.
EL4OM010
EK4OM011
EL4OM011
EK4OM045
