DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
57

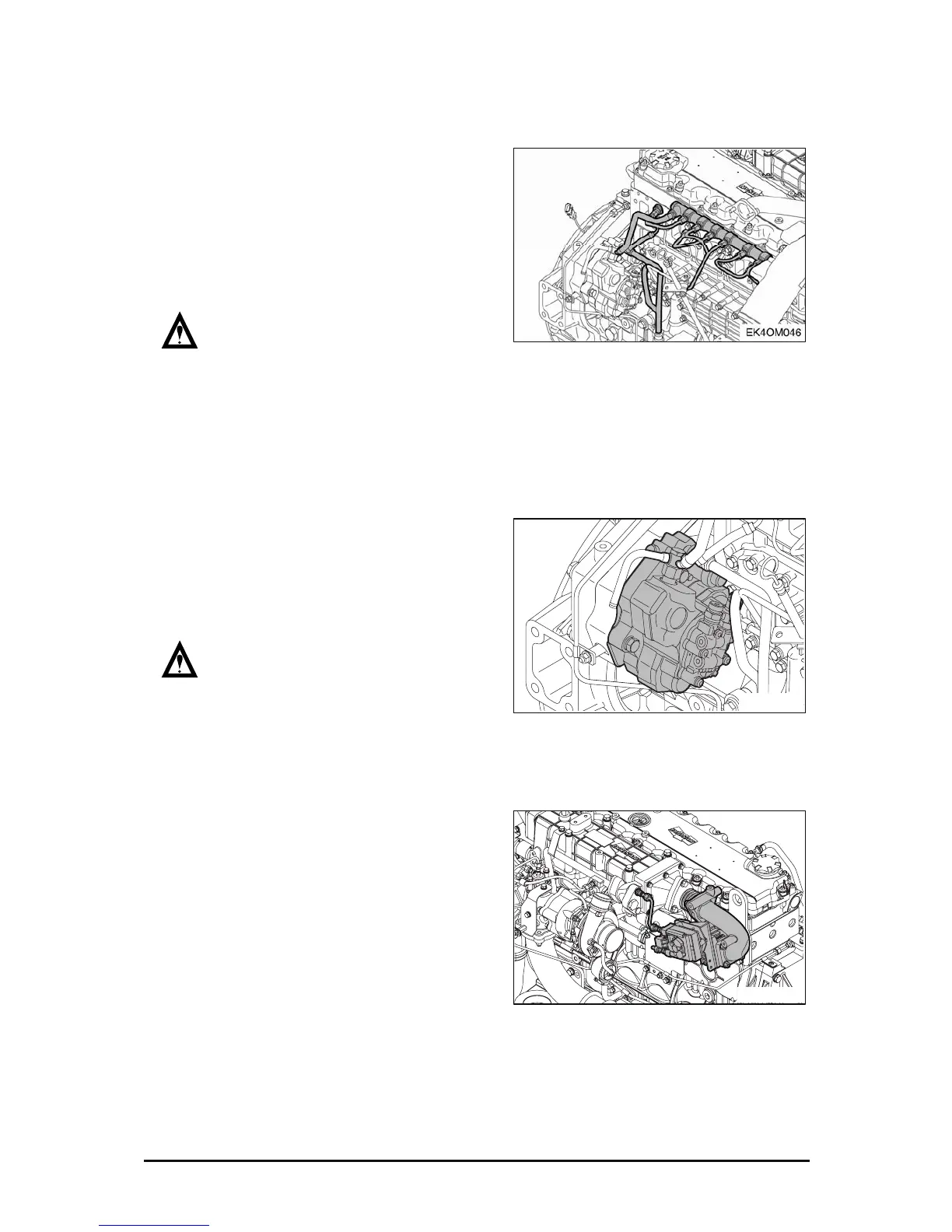

3.1.12. Common rail and high pressure pipe
z Disassemble the high pressure pipe
between fuel high pressure connector
and common rail.
z Loosen the fixing bolts of the common
rail and disassemble the common rail.
CAUTION :
1) Seal the common rail after
disassembly, so that no foreign object is inserted.
2) The fuel high pressure pipe cannot be used again after removal .
3.1.13. Fuel high pressure pump
z Loosen the fixing bolts of the fuel high
pressure pump and remove the fuel
high pressure pump.
CAUTION :
1) Seal the fuel high pressure pump
after disassembly, so that no
foreign object is inserted.
3.1.14. EGR valve
z Loosen the fixing bolts of the EGR
valve and remove the EGR valve and
Exhaust manifold.
z Loosen the fixing bolts connected to
the EGR cooler and exhaust pipe, and
remove the exhaust pipe
z Remove the cooling water pipe
connected to the EGR valve.
EK4OM047
EK4OM036
