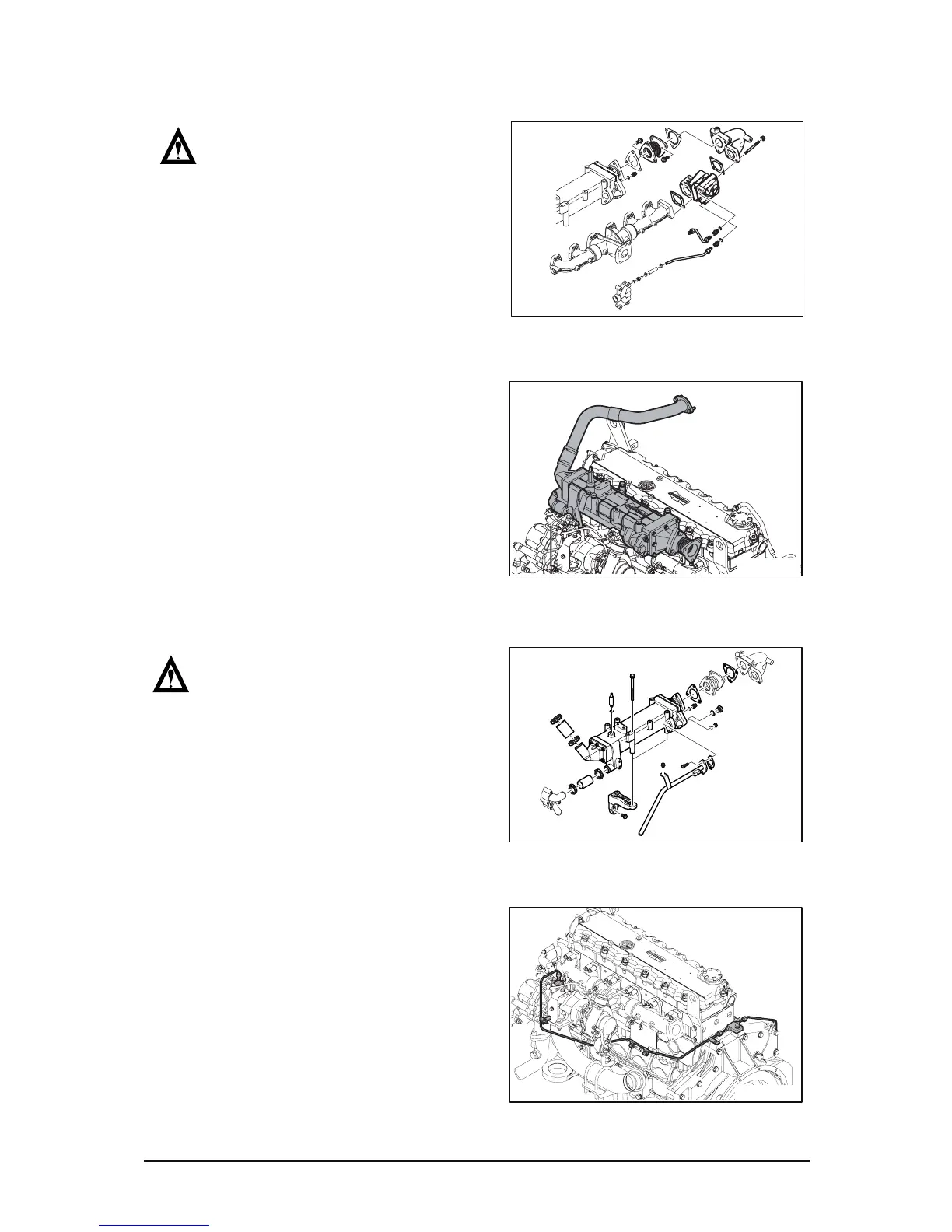

DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
58
CAUTION :
1) Seal the EGR valve and exhaust
pipe after disassembly, so that no
foreign object is inserted.
3.1.15. EGR cooler
z Loosen the fixing bolts that connect
the EGR cooler and bracket, and
remove the EGR cooler.
z Detach the pipe and hose connected
to the EGR cooler.
CAUTION :
Seal the EGR cooler after
disassembly, so that no foreign
object is inserted.
3.1.16. HC hydro-carbon
z Remove the HC injection pipe.
z Remove the cooling hose connected
to the HC injection device.
z Loosen the fixing bolts of the HC
injection device and remove the
exhaust pipe.
EK4OM080
EK4OM037
EK4OM072
EK4OM038
