DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
74

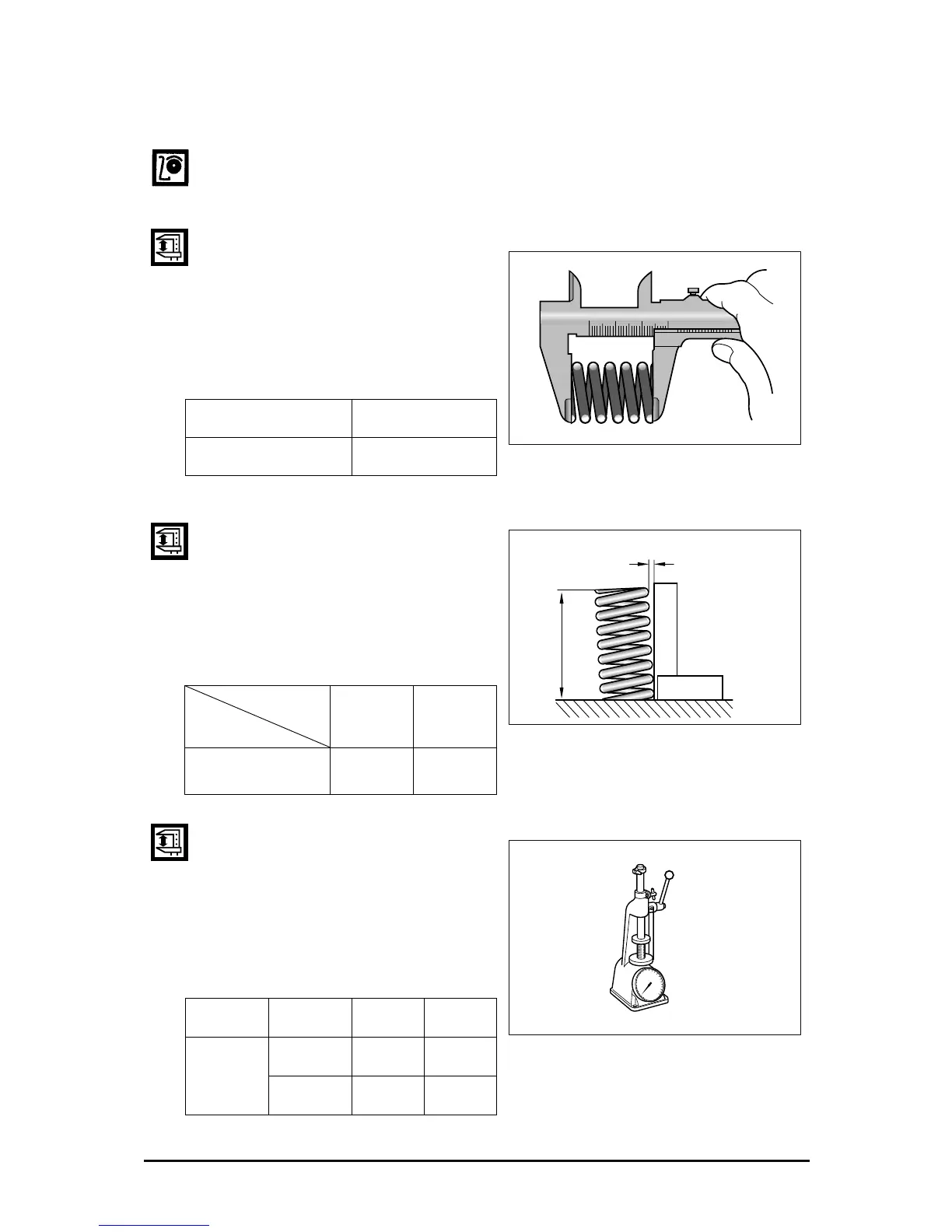

4) Valve spring
z Visual check
Check the appearance of valve spring and if necessary replace the spring.
z Valve spring free length
Use a vernier caliper to measure the
valve spring free length. If the
measured value is less than the
specified limit, the valve spring must
be replaced.
(mm)
Spring free length Standard
Intake valve
Exhaust valve
53.5
z Valve spring inclination
Measure orthogonality of the valve
spring using the surface plate and
square measure. If the measurement
exceeds the limit of tolerance,
replace the valve spring.
(mm)
z Valve spring tension
Use a spring tester to measure the
valve spring tension if the measured
value is less than the specified limit,
the valve spring must be replaced.
(mm)
Item
Setting
length
Spring
tension
Limit
Intake
and
exhaust
valve
39.4 mm 28.8 kg
2 kg
29.67 mm 50 kg
2 kg
Dimension
Description
standard Limit
Valve spring
inclination
Under 1.4 2.0
EA3M2033
EJM2050I
Inclination
Free length
Square
EA0M4056
Spring tester
To Next Page
