DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
75

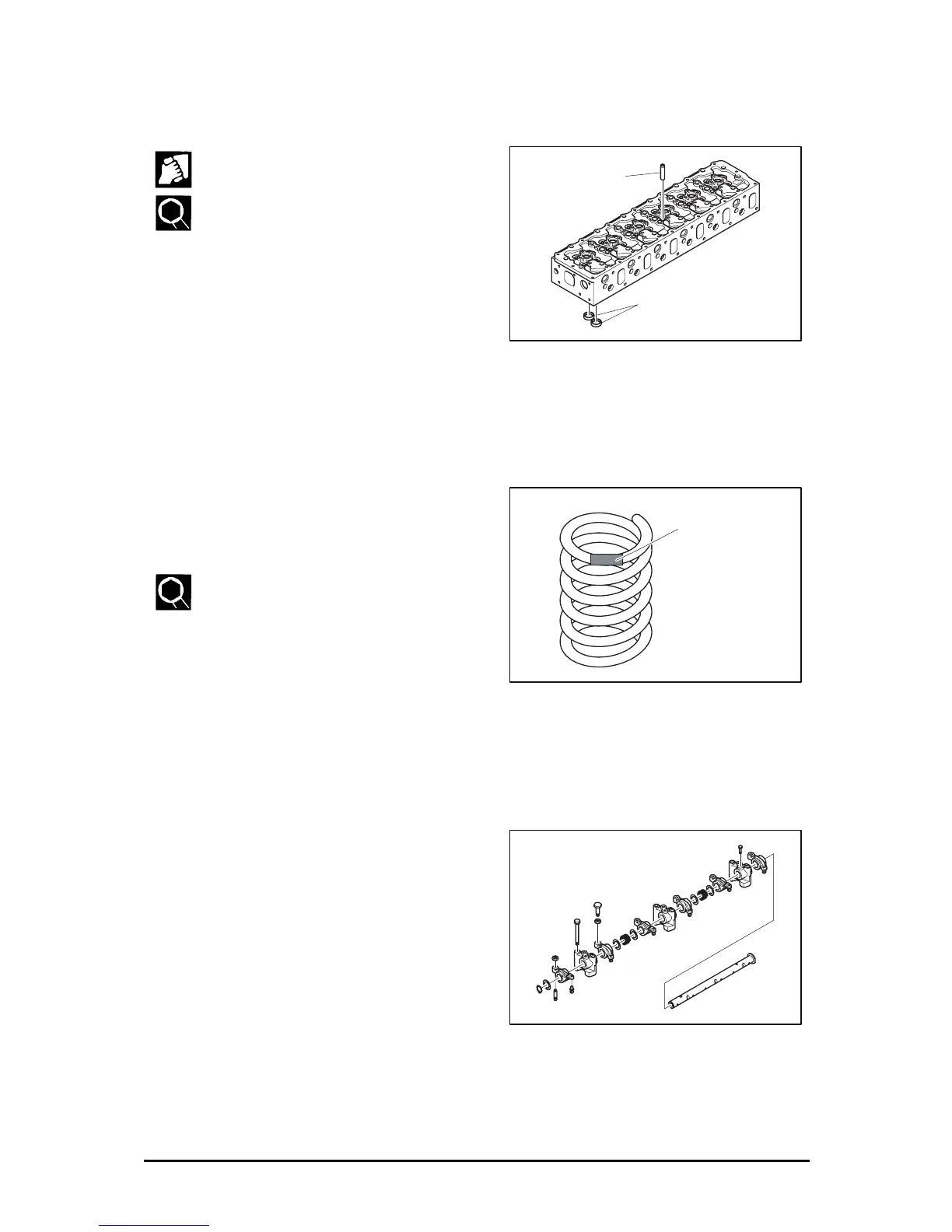

5) Assembling cylinder head
z Clean the cylinder head, and replace
the valve steam seal with new one.
Put the steam seal in the cylinder head
valve guide, using the special tool.
z Assembly tool item number :
EF.121-253
z Spray engine oil on the valve stem
and valve guide, and assemble the
valves. Be careful not to damage the
valve stem seal.
z Mount the valve spring seat on the
valve guide on the upper side of the
cylinder head.
z Assemble the internal and external
valve spring, and put the spring seat
on it.
z Press the valve spring using the
valve spring pressing tool, and insert
the valve cotter to assemble the valve.
z Assembly tool item number :
EF.123-065
z Beat the valve softly with a urethane hammer to see if the valve is assembled
correctly.
3.2.4. Rocker arm
1) Disassembly
z Disassemble the snap rings that are
located at one end of rocker arm
shaft by a plier.
z Disassemble in the order of washer,
rocker arm, rocker arm bracket,
rocker arm spring.
EE1OM069
Valve guide
Valve seat
EE1OM070
Painted portion
(Assemble spring
to the upper side)
EE1OM071
To Next Page
