DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
79

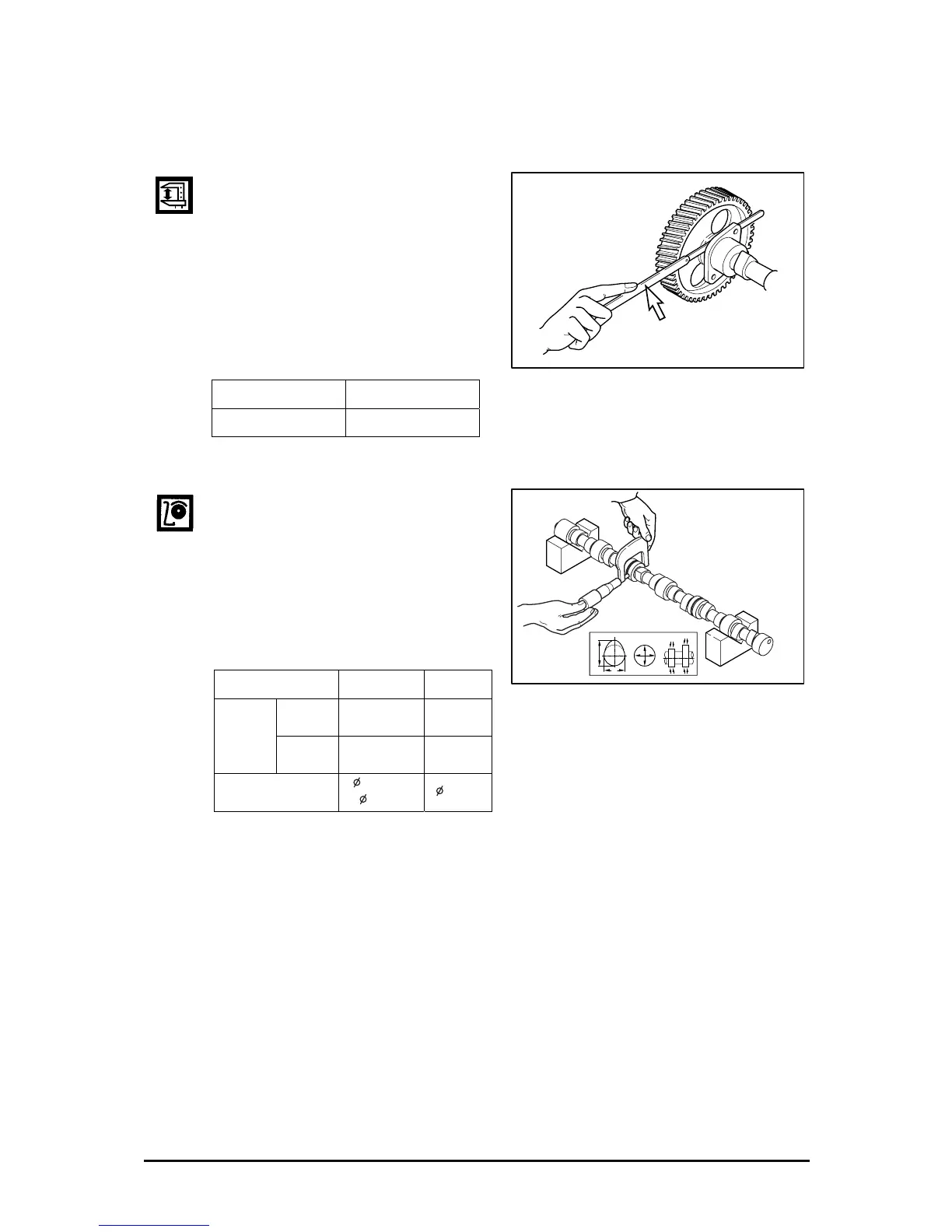

3.2.5. Camshaft
1) Camshaft end play
z Push the camshaft gear toward the
opposite cylinder block.
z With a feeler gauge, measure the
clearance between the thrust plate
and camshaft gear.
z If the end play is excessive, replace
the thrust plate.
(mm)
2) Cam
z Use a micrometer to measure the cam
lobe height and journal diameter.
z If the measured number is less than
the specified limit, the camshaft must
be replaced.
(mm)
Standard Limit
Cam
lobe
height
(C)
Intake 46.025 45.73
Exhaust 49.170 47.48
Cam journal
diameter (A, B)
55.92 ~
55.95
57.65
z Inspect the cam face for scratch or damage.
z Slight step wear or damage on the cam face may be corrected with oil stone or
oiled grinding paper. But, replace if severely damaged.
Standard Limit
0.028 ~ 0.069 0.13
EA0M4067
Feeler gauge
EH6OM030
C
A
A
B
B
D
