DL06K Interim Tire-4 Diesel Engine Disassembly and Reassembly of Major Components
97
z Tighten fixing bolts in fastening order
with the pre-defined torque, using a
torque wrench.

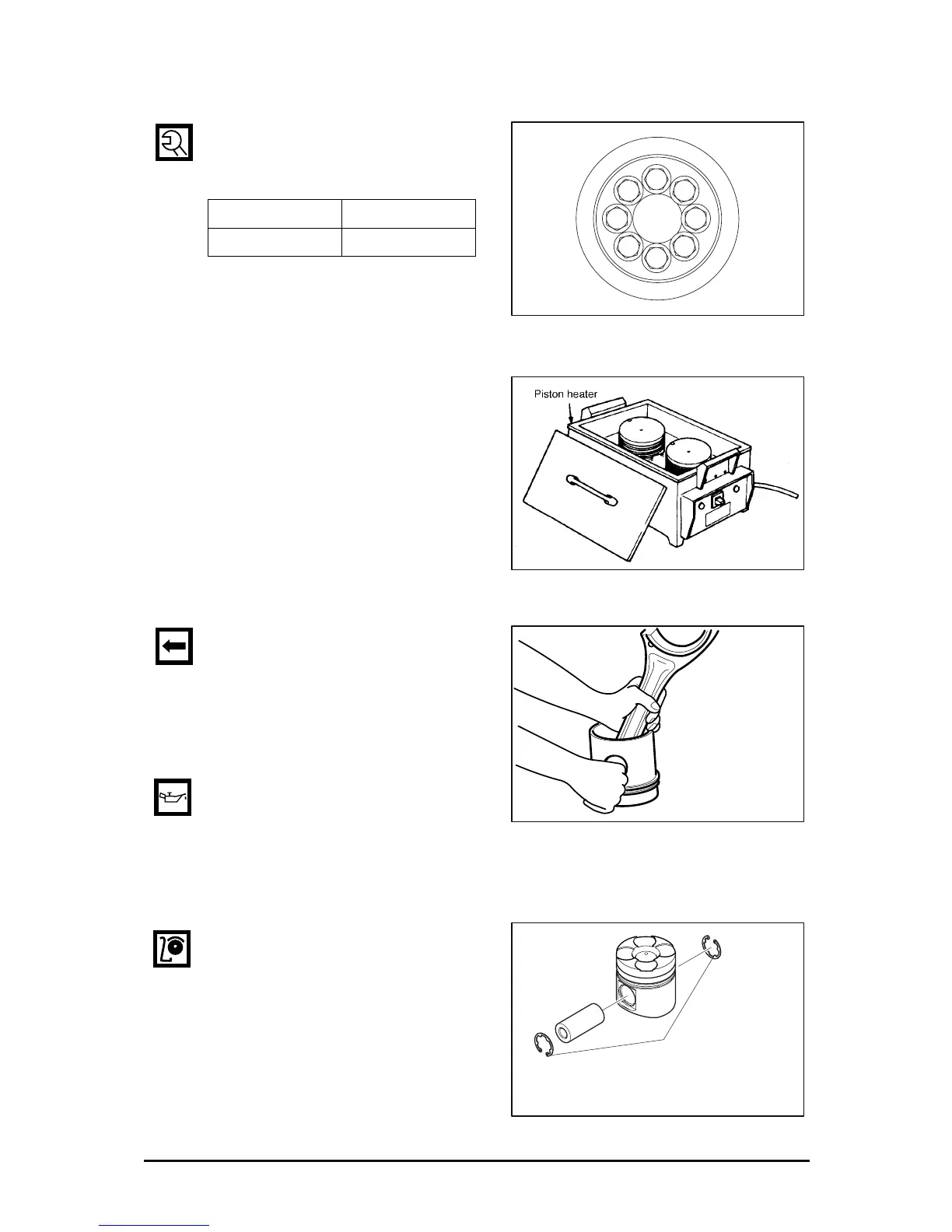

3.3.13. Piston and connecting rod
z Heat the piston at 100 °C at 5
minutes, using the piston heater.
z When assembling the piston and
connecting rod, the weight adjustment
part of the small end of the
connecting rod should be on the
opposite side of the oil gallery entry
(large hole side) of the piston.
z Apply oil to the piston pin hole adjust
it to the small end of the connecting
rod. Then, beat the piston pin with a
rubber hammer, and assemble the
connecting rod and piston.
z Assemble the opening part of snap
ring assembly in such way that it
faces to the opposite side.
z Assemble the snap ring and check
the assembly status.
Bolt specification M14 × 1.5
Torque 20 kgf•m
EE1OM081
1
2
43
57
86
EA3M2058
EAMD088I
EE2OM072
CAUTION :
Direction of snap ring is assembling
to be positioned the opposite side
