Operating Controls
15. Reverse Fan Switch
This switch causes the radiator cooling fan to rotate in the
reverse direction. The function of reversing the direction of
the radiator cooling fan is effective in cleaning the radiator.
O. "OFF" position.
I. "ON" position.
Activate the switch for reverse rotation in the following
order;
A. Turn the starter switch "O" (OFF) → "I" (ON) and then
turn the of the cooling fan reverse rotation switch "O"
(OFF) → "I" (ON) and start the engine.
B. For reverse operation, the cooling fan reverse
rotation indicator light turns "ON" the same time.
C. To return to forward rotation, shut down engine,
change the position of the reverse switch "ON" →
"OFF," and start the engine again.
16. Engine Diagnostic Switch
If the engine warning light turns "ON" or "blinks," when the
engine is running, it means a fault code has been
recorded. When this occurs, the engine diagnostic switch
allows the operator to view the fault codes. The active fault
code is started after this switch turns "ON" "OFF," if during
the output of the fault code this switch turns "ON" "OFF"
again, the output of the current fault code is interrupted and
the next fault code is displayed. Each depression of the
diagnostic switch causes the output of a fault code. If a
fault code is displayed, contact your authorized dealer for
repair. To know the fault code information, refer to the
engine control system of shop manual.
O
I
FG004188

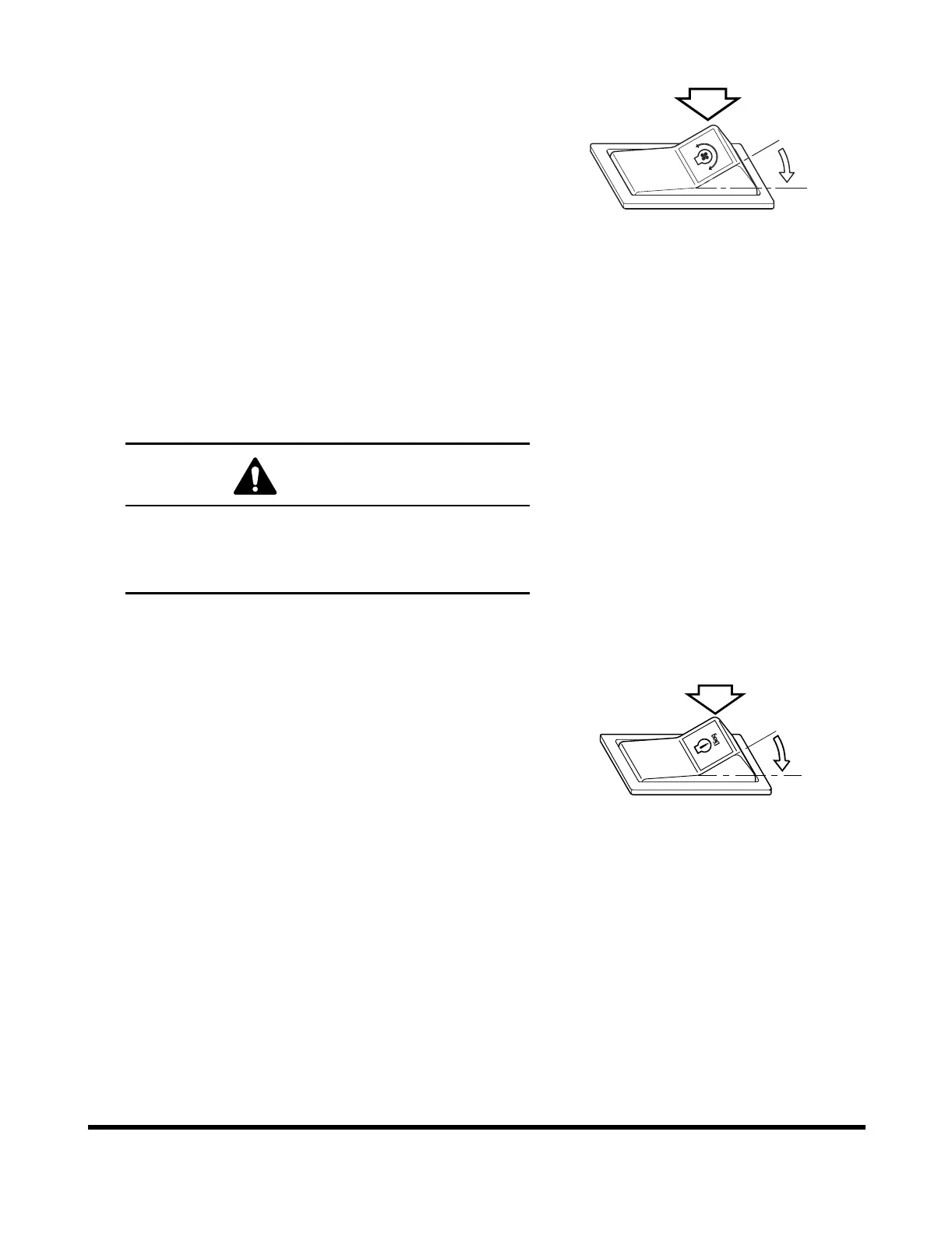

Figure 73
WARNING
Never travel or work in the reverse fan rotation mode.
This may cause damage to the cooling system. Make
sure that this switch is in the "O" (OFF) position before
starting the engine and operating the machine.
AQO0120L
O
I
Figure 74
