5. About the engine
77

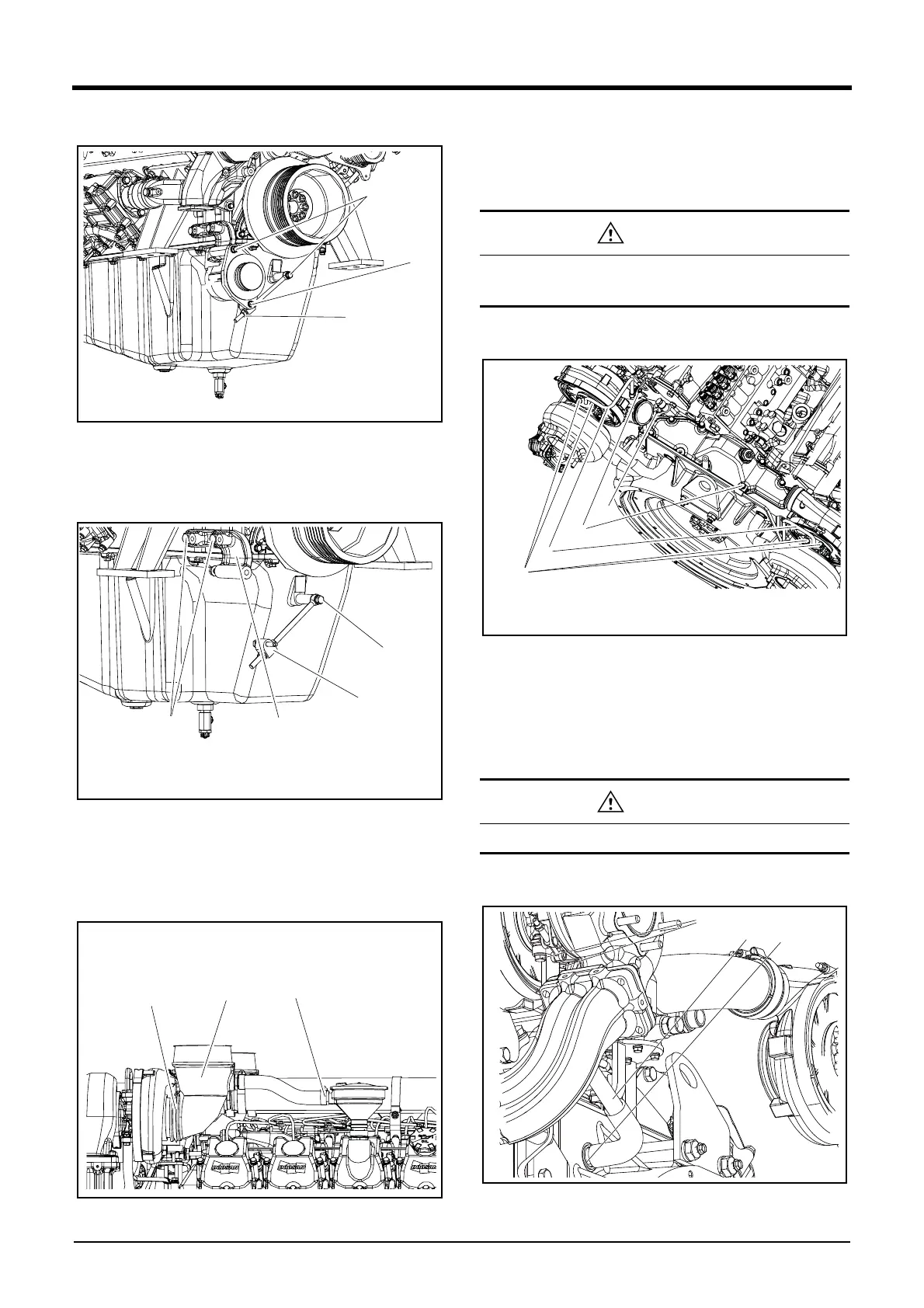

6. Remove the alternator.
DV2213055A
1) Loosen the fixing nut(A) and bolt(B).
2) Remove the alternator(C).
7. Remove the alternator bracket.
DV2213056A
1) Loosen the fixing bolt(A) and then remove the eyebolt(B).
2) Loosen the fixing bolt(C) and then remove the alternator
bracket(C).
8. Remove the inlet elbow.
DV2213057A
1) Loosen the hose clamp(A).
2) Loosen the V-clamp(B).
3) Remove the inlet elbow(C).
4) Remove the other side elbow as the same procedure.
9. Remove the oil delivery pipe.
DV2213058A
1) Loosen the the fixing bracket bolts(A) of the oil delivery
pipe.
2) Loosen the fixing bolts(B) of the oil delivery pipe.
3) Loosen the hollow screw(C).
4) Remove the oil delivery pipe(D).
10. Remove the oil return pipe.
DV2213169A
A
B
C
C
B
A
D
A
C
B
CAUTION
Be careful not to loss the O-ring and insert parts when
removing the inlet elbow.
CAUTION
Be careful not to loss the O-ring and the gastket.
