Doosan DP180LBF - Page 84

5. About the engine
78
1) Loosen the clamp(A).
2) Loosen 2 fixing bolts(B)

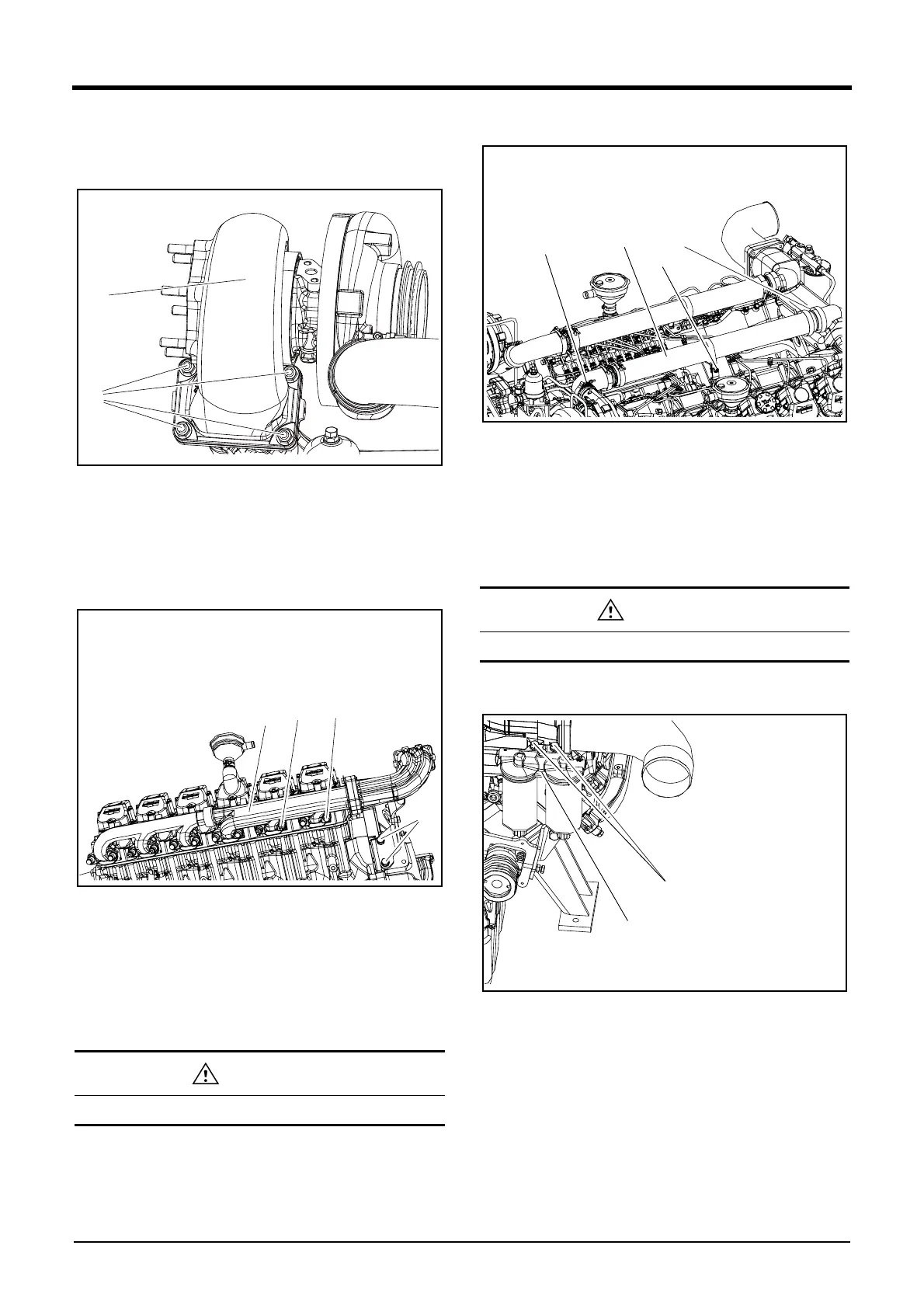

11. Remove the turbocharger.
DV2213170A
1) Loosen 4 fixing nuts(A).
2) Remove the turbocharger(B).
3) Remove the other side turbocharger as the same proce-
dure.
12. Remove the exhaust manifold and elbow assembly.
DV2213060A
1) Remove the heat screen.
2) Loosen the fixing bolts(A) of the exhaust elbow bracket.
3) Loosen 8 fixing bolts(B) and 4 fixing bolts(C).
4) Remove the exhaust manifold and elbow assembly(D).
5) Remove the other side exhaust manifold and elbow
assembly as the same procedure.
13. Remove the intake stake.
DV2213061A
1) Loosen the fixing bolt(A).
2) Loosen the hose clamp(B).
3) Loosen the V-clamp(C).
4) Remove the intake stake(D).
5) Remove the other side intake stake as the same proce-
dure.
14. Remove the fuel filter.
DV2213062A
1) Loosen the fixing bolts(A).
2) Remove the fuel filter assembly(B).
15. Remove the inlet pipe.
CAUTION
Be careful not to mix the fixing bolts each other.
A
B
A
B
C
D
CAUTION
Be careful not to let dust inside the engine.
C
D
A
B
A
B
